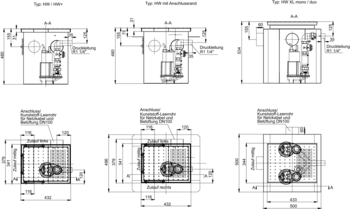

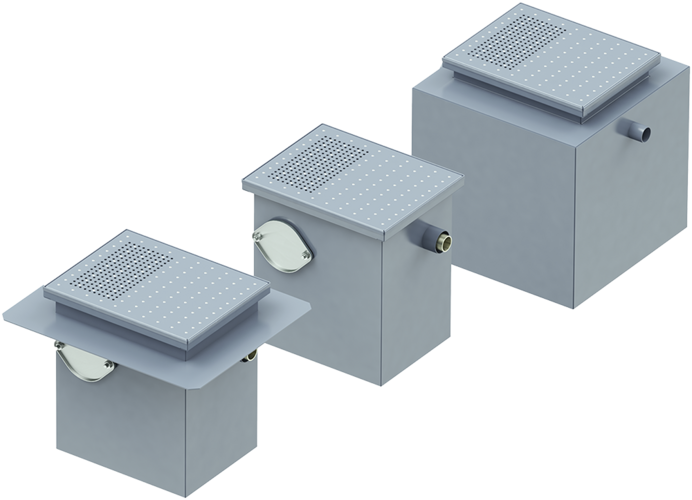

Waste water lifting plant Sinkamat-HW


TypeConnecting rimVersionMotor powerKey dataGranu

lation
Total

volume
Item

number
Remember
P1P2Current

consumption
Volt-

age
Rev-

count
[kW][kW][A][V][r/min][mm][l]
154 HWWithout connecting rimMono0.650.422.8230290020500175.33.17
154 HWWith connecting rimMono0.650.422.8230290020500175.33.19
154 HW+Without connecting rimMono0.650.422.8230290020500175.35.88
154 HW XLWithout connecting rimMono0.650.422.82302900201200175.35.89
154 HW XLWithout connecting rimDuo0.650.422.82302900201200175.35.90
TypeMotor powerKey dataGranu

lation
Total

volume
Item

number
P1P2Current

consumption
VoltageRev count
154 HW0.65 kW0.42 kW2.8 A230 V2900 r/min20 mm50 l0175.33.17
154 HW0.65 kW0.42 kW2.8 A230 V2900 r/min20 mm50 l0175.33.19
154 HW+0.65 kW0.42 kW2.8 A230 V2900 r/min20 mm50 l0175.35.88
154 HW XL0.65 kW0.42 kW2.8 A230 V2900 r/min20 mm120 l0175.35.89
154 HW XL0.65 kW0.42 kW2.8 A230 V2900 r/min20 mm120 l0175.35.90
TypeMedia temperature
NormalMaximum
[°C][°C]
154 HW2090
154 HW
154 HW+2090
154 HW XL2090
154 HW XL

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Translated with www.DeepL.com/Translator (free version)
  • Weight: 2 kg

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg

Cover

Suitable for
  • Sinkamat-S/Z
Description
  • Stainless steel, material grade 304
  • With shaped seal
  • Gas and odour proof
  • Screwed
  • Tank ventilation included
  • Weight: 10 kg
