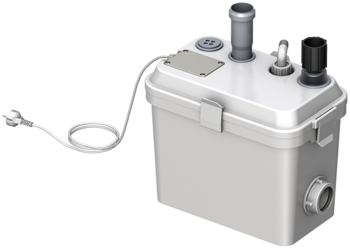

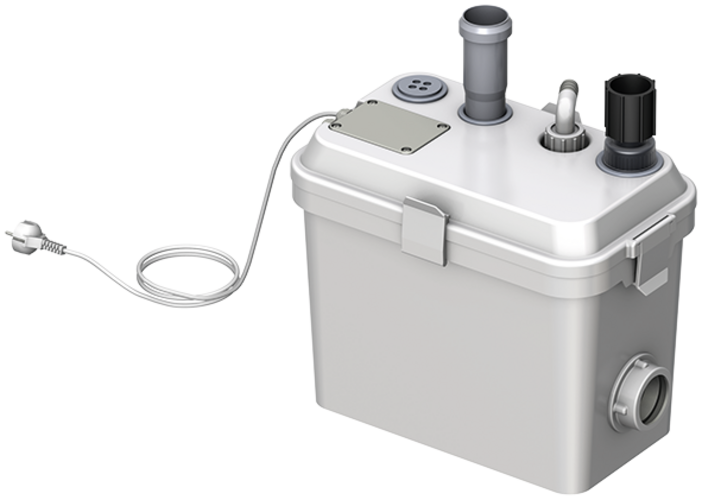

Waste water lifting plant Sinkamat-K1/K2/KD1/KD2


Product benefits

  • Tool-free servicing
  • Compact
  • Ready to connect
  • Acoustic alarm if water reaches impermissibly high level

Product information

  • Applications:
    • For above-floor installation in frostproof premises below the backflow level (basements, hobby rooms and laundry rooms)
    • For domestic grey water, without faecal content, from showers or washbasins
    • *Downstream of water softening plants and for condensate from heating systems (max. salt content: 15%) – only types KD1 & KD2
  • Polypropylene container
  • With several horizontal and vertical connection options up to DN 50
  • Container ventilation via active carbon filter
  • Grey water submersible pump with robust single phase motor
  • Stainless steel motor housing and shaft
  • Plastic pump housing and impeller
  • Mechanical seal between pump housing and motor
  • 1,5 m connecting cable and Safety plug
  • Float switch (reed contact)
  • Vertical 1¼" pressure discharge with integrated non-return flap
  • Switching device with isolated contact, integrated in container lid
  • Acoustic alarm if water reaches impermissibly high level
  • Degree of protection: IP67

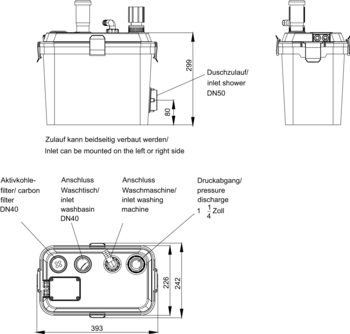

Scale drawing
TypeMotor powerKey dataUsable volumeTotal

volume
Item

number
DownloadsRemember
P2Current

consumption
Volt-

age
Rev-

count
Inlet

height Z 1
[kW][A][V][r/min][l][l]
ImageK10.131.323028002026620511
ImageK20.433.723028002026620512
ImageKD1*0.131.323028002026620513
ImageKD2*0.433.723028002026620514
Scale drawing
TypeMotor powerKey dataUsable volumeTotal

volume
Item

number
P2Power consumptionVoltageRev countInlet

height Z 1
ImageK10.13 kW1.3 A230 V2800 r/min20 l26 l620511
ImageK20.43 kW3.7 A230 V2800 r/min20 l26 l620512
ImageKD1*0.13 kW1.3 A230 V2800 r/min20 l26 l620513
ImageKD2*0.43 kW3.7 A230 V2800 r/min20 l26 l620514

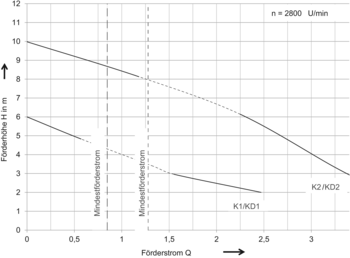

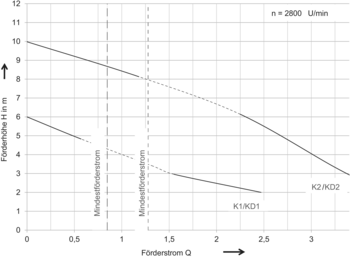

TypeDelivery headDelivery flow Q with overall delivery head HMedia temperature
1 m3 m6 m8 mNormalMaximum
[m][l/s][l/s][l/s][l/s][°C][°C]
K11 – 3.51.781.154090
K22 – 8.52.81.751.144090
KD1*1 – 3.51.781.154090
KD2*2 – 8.52.81.751.144090

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg
