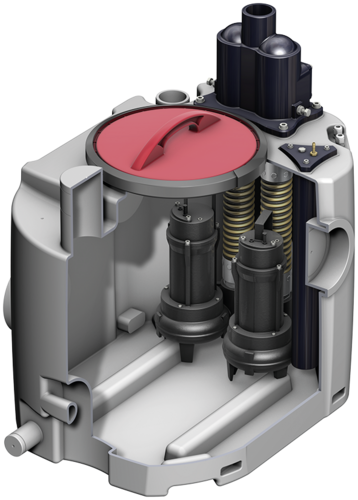

Waste water lifting plant Muli-Mini duo
Product benefits
- Ready to connect
- Different inlet heights can be selected
- High usable volume – up to 140 l
- Suitable for installation downstream of grease separators up to NS 4
- Pump can be dismantled without tools
- Designed to fit through narrow doorways 700 mm
- Low weight

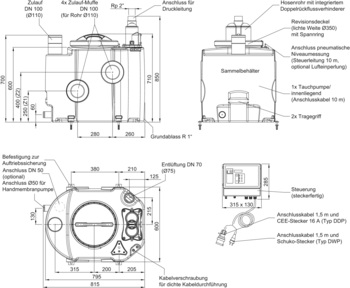

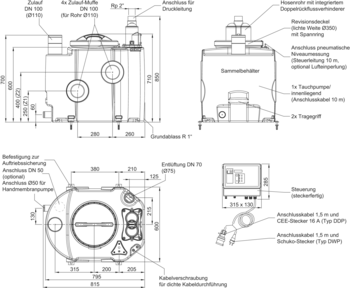

Product information
- Areas of application
- Downstream of grease separators up to NS 4
- Laundries
- Rows of showers
- Basement areas
- Polyethylene tank
- Scour outlet R 1"
- Service opening for simple maintenance, diameter: 340 mm
- Fixing kit for attachment against floating
- Connector for hand membrane pump DN 50
- 4 horizontal intake sockets DN 100
- 1 vertical inlet nozzle DN 100
- Optionally 1 vertical inlet nozzle DN 50 (accessory)
- 1 ventilation socket DN 70
- Connection pressure line
- Special backflow stop with ball in housing
- With venting and fixing screw
- Connection: Rp 2"
- 2 grey water underwater pumps
- With 3-phase submerged motor pump: 400 V, 50 Hz – Version D
- With A.C. submerged motor pump: 230 V, 50 Hz – Version W
- IP 68 protection / Operation S1 (continuous operation) when pumps are completely submerged
- With blockage-free free flow impeller
- 10 m mains cable
- Level switching
- Pneumatic level switching with 10 m control lines
- Optionally with air bubble injection for increased operational security when installing downstream of grease separators (accessory)
- Controls
- IP 54 protection
- 1.5 m cable and EEC plug (16 A) – version D
- 1.5 m cable and safety plug (16 A) – version W
- Potential-free collective fault message and operating signal
- Tested to DIN EN 12050-2

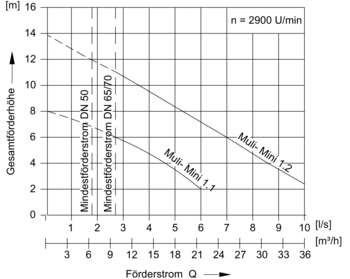

| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 2 m | 4 m | 6 m | 8 m | 10 m | 12 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-Mini DDP 1.1 | 2 – 7 | 6.0 | 4.5 | 2.75 | 40 | 65 | |||
| Muli-Mini DDP 1.2 | 2 – 12 | 10.3 | 8.7 | 7.0 | 5.4 | 3.6 | 1.8 | 40 | 65 |
| Muli-Mini DWP 1.1 | 2 – 7 | 6.0 | 4.5 | 2.75 | 40 | 65 | |||
| Muli-Mini DWP 1.2 | 2 – 12 | 10.3 | 8.7 | 7.0 | 5.4 | 3.6 | 1.8 | 40 | 65 |
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Air bubble injection
Suitable for
- Muli-Star DDP
- Muli-Mini
Description
- For retro-fitting on Muli-Mini and Muli-Star DDP wastewater lifting plants
- With compressor and connectors
- To increase operational safety
- To deal with generation of floating layers (wastewater containing grease)
- Weight: 1.9 kg
- Rabattgruppe: 12

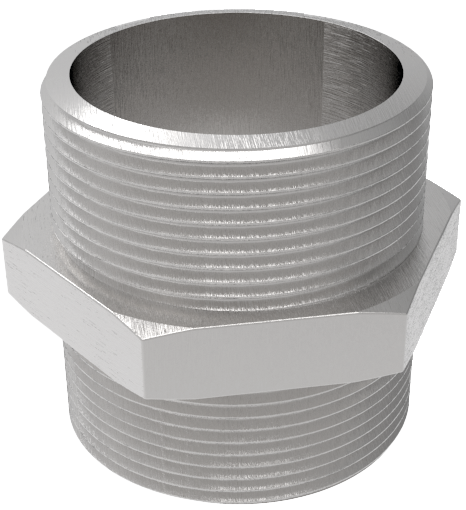

hexagonal double nipple 2" x 2"
Suitable for
- Muli-Mini
- Pressure pipe
Description
- From stainless steel, material grade 304
- For transition from female thread 2" to male thread 2” on pressure line
- Weight: 0.3 kg
- Rabattgruppe: 12
Special mounting adapter DN 50
Suitable for
- Muli-Mini
Description
- As supplementary component for pressure line DN 50 (OD: 48 – 52 mm)
- For sound insulation
- Weight: 3.8 kg
- Rabattgruppe: 12
Special mounting adapter DN 50
Suitable for
- Muli-Mini
Description
- As supplementary component for pressure line DN 50 (OD: 57 – 61 mm)
- For sound insulation
- Weight: 2.6 kg
- Rabattgruppe: 12
Special mounting adapter DN 70
Suitable for
- Muli-Mini
Description
- As additional component for pressure line DN 70 (OD: 73 – 76 mm
- For sound insulation
- Weight: 2.3 kg
- Rabattgruppe: 12

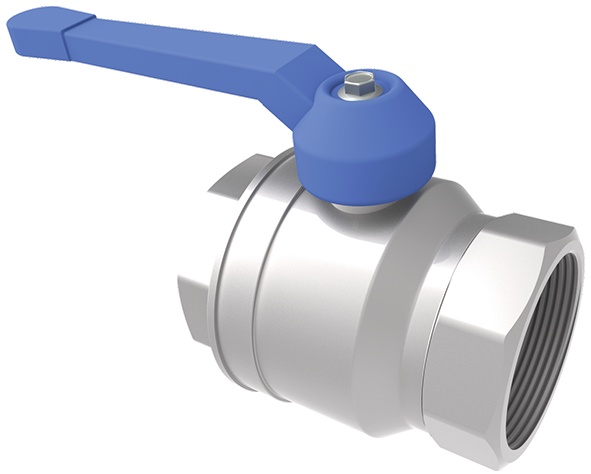

Ball valve 2"
Suitable for
- Muli-Mini
Description
- As supplementary component for pressure line
- Weight: 1.5 kg
- Rabattgruppe: 12
Inlet socket DN 50
Suitable for
- Junior basement gully with backflow stop
- Basement gully DN 100
- Sinkamat-K (free-standing)
- LipuSmart-P
- Muli-Mini
Description
- Made of plastic
- For lateral input option
- For fitting on-site
- Weight: 0.1 kg
- Rabattgruppe: 7
Inlet valve DN 50
Suitable for
- LipuMobil-P 0,8
- Muli-Mini
Description
- Made of PVC
- DN 50
- With sealing ring as per DIN EN 19538
- Weight: 0.4 kg
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
- Rabattgruppe: 12
Hand membrane pump 1½"
Suitable for
- Wastewater lifting plant
Description
- For fixing to wall
- Incl. hose
- Clear width: 48 x 80 mm
- Incl, hose clamp
- Clear width: 50 x 70 mm
- Width: 12 mm
- 2 pces required
- Weight: 14.4 kg
- Rabattgruppe: 12
Three way valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 3.3 kg
- Rabattgruppe: 12
Stop valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 1 kg
- Rabattgruppe: 12
| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 2 m | 4 m | 6 m | 8 m | 10 m | 12 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-Mini DDP 1.1 | 2 – 7 | 6.0 | 4.5 | 2.75 | 40 | 65 | |||
| Muli-Mini DDP 1.2 | 2 – 12 | 10.3 | 8.7 | 7.0 | 5.4 | 3.6 | 1.8 | 40 | 65 |
| Muli-Mini DWP 1.1 | 2 – 7 | 6.0 | 4.5 | 2.75 | 40 | 65 | |||
| Muli-Mini DWP 1.2 | 2 – 12 | 10.3 | 8.7 | 7.0 | 5.4 | 3.6 | 1.8 | 40 | 65 |
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Air bubble injection
Suitable for
- Muli-Star DDP
- Muli-Mini
Description
- For retro-fitting on Muli-Mini and Muli-Star DDP wastewater lifting plants
- With compressor and connectors
- To increase operational safety
- To deal with generation of floating layers (wastewater containing grease)
- Weight: 1.9 kg
- Rabattgruppe: 12
hexagonal double nipple 2" x 2"
Suitable for
- Muli-Mini
- Pressure pipe
Description
- From stainless steel, material grade 304
- For transition from female thread 2" to male thread 2” on pressure line
- Weight: 0.3 kg
- Rabattgruppe: 12
Special mounting adapter DN 50
Suitable for
- Muli-Mini
Description
- As supplementary component for pressure line DN 50 (OD: 48 – 52 mm)
- For sound insulation
- Weight: 3.8 kg
- Rabattgruppe: 12
Special mounting adapter DN 50
Suitable for
- Muli-Mini
Description
- As supplementary component for pressure line DN 50 (OD: 57 – 61 mm)
- For sound insulation
- Weight: 2.6 kg
- Rabattgruppe: 12
Special mounting adapter DN 70
Suitable for
- Muli-Mini
Description
- As additional component for pressure line DN 70 (OD: 73 – 76 mm
- For sound insulation
- Weight: 2.3 kg
- Rabattgruppe: 12
Ball valve 2"
Suitable for
- Muli-Mini
Description
- As supplementary component for pressure line
- Weight: 1.5 kg
- Rabattgruppe: 12
Inlet socket DN 50
Suitable for
- Junior basement gully with backflow stop
- Basement gully DN 100
- Sinkamat-K (free-standing)
- LipuSmart-P
- Muli-Mini
Description
- Made of plastic
- For lateral input option
- For fitting on-site
- Weight: 0.1 kg
- Rabattgruppe: 7
Inlet valve DN 50
Suitable for
- LipuMobil-P 0,8
- Muli-Mini
Description
- Made of PVC
- DN 50
- With sealing ring as per DIN EN 19538
- Weight: 0.4 kg
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
- Rabattgruppe: 12
Hand membrane pump 1½"
Suitable for
- Wastewater lifting plant
Description
- For fixing to wall
- Incl. hose
- Clear width: 48 x 80 mm
- Incl, hose clamp
- Clear width: 50 x 70 mm
- Width: 12 mm
- 2 pces required
- Weight: 14.4 kg
- Rabattgruppe: 12
Three way valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 3.3 kg
- Rabattgruppe: 12
Stop valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 1 kg
- Rabattgruppe: 12
