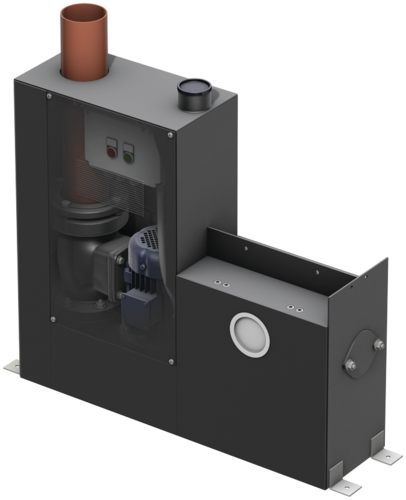

Waste water lifting plant Fäkablock-II
Product benefits
- Easy maintenance thanks to easily accessible functioning parts
- Connection options for up to 3 toilets
- Fully functional wastewater lift as per DIN EN 12050-1
Product information
- Areas of application
- For drainage of toilet installations
- Build into or onto wall
- Pump with channel-impeller in a single block
- Steel container
- Interior corrosion-protected
- Painted exterior
- Switching device
- IP 54 protection, encapsulated in insulation material
- With 1 terminal block
- With 1 motor contactor
- With 1 motor protection switch
- Alarm lamp "Defect"
- Pneumatic level switching
- Visible and audible error messages
- Dependent on mains
- With voltage-free fault reporting "High level"

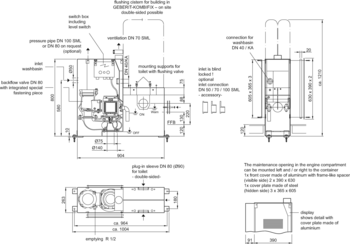

- WC wall connection
- 2 facing push sockets for WC connectors, diameter: 90 mm
- Inlet height from bottom of FÄKABLOCK-II to middle of WC outflow: 340 mm
- Additional WC connection on side of tank with inlet sockets DN 100 (accessory)
- Side inlet
- On side of tank with eccentric inlet socket: DN 50, DN 70 or DN 100 (accessories)
- Washbasin connection
- On side of tank DN 50, DN 70 or DN 100 (accessories) or motor compartment side DN 40 KA
- Pressure line connection
- Backflow valve with special mounting adapter for elastic connection of pressure line: DN 100
- With drain spigot R ½" to empty the pressure line
- Connection ventilation line
- Pipe sockets for connection with CV connection sleeve: DN 70/SML or KA-pipe
- Aluminium screen for motor compartment
- Surface matt anodised
- With ventilation slots

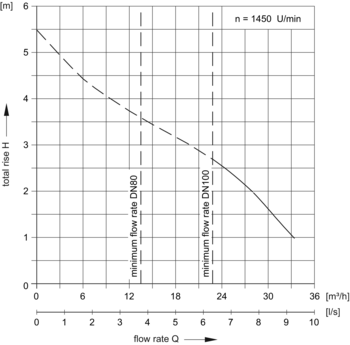

| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||
|---|---|---|---|---|---|
| 1 m | 3 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [°C] | [°C] | |
| Fäkablock-II | 1 – 3.5 | 9.2 | 5.7 | 45 | 80 |
Manual switch
Suitable for
- Fäkablock II
Description
- 3-pole
- With padlock
- Weight: 0.1 kg
- Rabattgruppe: 12
Inlet sockets
Suitable for
- Fäkablock II
Description
- DN 50/SML
- Eccentric
- Conforms to DIN 19522
- Weight: 0.8 kg
- Rabattgruppe: 12
Inlet sockets
Suitable for
- Sinkamat-S/Z
- Fäkablock II
- Sinkamat HW (except HW XL)
Description
- Stainless steel, material grade 304
- DN 100
- Weight: 0.4 kg
- Rabattgruppe: 12
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 88 - 93 mm
- Weight: 0.3 kg

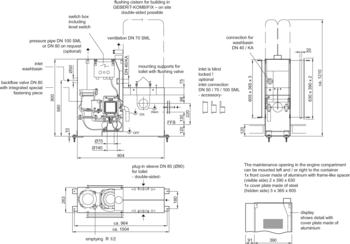

| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||
|---|---|---|---|---|---|
| 1 m | 3 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [°C] | [°C] | |
| Fäkablock-II | 1 – 3.5 | 9.2 | 5.7 | 45 | 80 |
Manual switch
Suitable for
- Fäkablock II
Description
- 3-pole
- With padlock
- Weight: 0.1 kg
- Rabattgruppe: 12
Inlet sockets
Suitable for
- Fäkablock II
Description
- DN 50/SML
- Eccentric
- Conforms to DIN 19522
- Weight: 0.8 kg
- Rabattgruppe: 12
Inlet sockets
Suitable for
- Sinkamat-S/Z
- Fäkablock II
- Sinkamat HW (except HW XL)
Description
- Stainless steel, material grade 304
- DN 100
- Weight: 0.4 kg
- Rabattgruppe: 12
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 88 - 93 mm
- Weight: 0.3 kg
