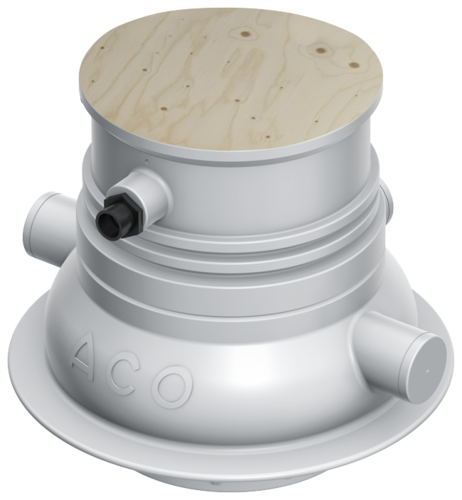

Muli-UF for the shell builder

Product benefits

  • Simple installation due to trade separation
  • Three inlets for selection
  • High usable volume - 27 l
  • Easy assembly and disassembly of the pump by separate pump tank
  • Fully functional floor drain in the top section

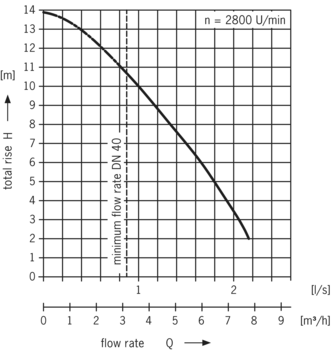

Product information

  • Areas of use:
    • Detached houses
    • For underfloor installation in frost free spaces
  • Housing made out of polyethylene
    • Two different container sizes available
    • Three horizontal DN 100 inlet sockets
    • One socket for DN 50 cable gland
    • One DN 50 ventilation socket
  • Discharge pipe connection
    • Pressure pipe connection according to EN ISO 15493 made of PVC-U; 50-40-R 1¼"
    • Integrated non-return flap
  • A stiffening is not required.
TypeUsable volumeHeightItem

number
DownloadsRemember
Inlet

height Z 1
Height AHeight B
[l][mm][mm]
Pump sump "short" (containers, construction time protection)276707401203.10.00
Pump sump "long" (containers, construction time protection)277708401203.10.02
TypeUsable volumeItem

number
Inlet height Z1
Pump sump "short" (containers, construction time protection)27 l1203.10.00
Pump sump "long" (containers, construction time protection)27 l1203.10.02

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg

Flashing light


Message system with GSM module

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli lifting plants
  • Muli-Max
  • Sinkamat-Z (underfloor) duo
  • Grease separators
  • Measuring device for grease layers
  • Wet refuse collection systems
  • Technical processing systems
Description
  • Does not require mains power
  • Visible and audible alarms
  • 6 digital & 2 analogue freely configurable inputs
  • 1 alarm output 12V
  • Incl. GSM- aerial (2,5m wire)
  • Relaying alarms to mobile phones by SMS
  • For mounting outside the ex-area
  • Housing: 155x180 x103 mm
  • Slot for standard SIM-card
  • Protection level: IP54 (with fitted IP44 antenna socket)
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 30 mA
  • 62 x 62 x 85 mm (LxWxD)
  • Degree of protection: IP66
  • Noise level: 95 dB(A)
  • Weight: 0.2 kg

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V AC
  • Power consumption: 15mA
  • 172x70x78mm (LxBxT)
  • Protection: IP33
  • 92 dB(A)
  • Weight: 0.3 kg

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg

Extension part

Suitable for
  • Backflow stops for installation in the floor plate
  • Sinkamat-Z (underfloor)
  • Muli-UF (underfloor)
  • Triplex-K
  • Quatrix-K
Description
  • With lip seal
  • Graduated height adjustment every 116 mm
    • For Sinkamat-K maximum 2 extension pieces may be mounted
    • For Triplex-K, Quatrix-K and Muli-UF maximum 1 extension pieces may be mounted
  • Weight: 3.4 kg

Sealing flange

Suitable for
  • Backflow stops for installation in the floor plate
  • Sinkamat-Z (underfloor)
  • Muli-UF (underfloor)
  • Triplex-K
  • Quatrix-K
Description
  • For building into waterproof concrete
    • Maximum groundwater level: 2 m
  • Weight: 2 kg

Pressure line set 50 mm diam.

Suitable for
  • Sinkamat-K (underfloor)
    • Mono
    • Duo
  • Muli-UF (underground)
Description
  • 5 m pressure tube ext. diam. 50 (ID 42) with 1 ¼" PVC adaptor socket
  • Max. pressure: 6 bar
  • Weight: 4 kg
