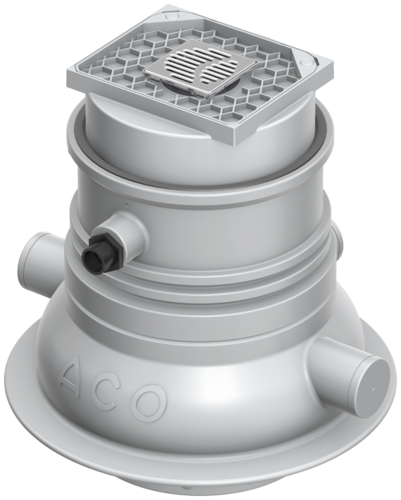

Muli-UF - complete
Product benefits
- Easy insertion
- Choice of 3 inlets
- High usable volume – 27l
- Easy assembly/disassembly of the pump due to separate pump chamber
- Fully adequate floor gully in top section
Product information
- Faecal lifting system
- Field of application
- Cellar drainage for detached houses
- For underfloor installation in frost free spaces
- Housing made out of polyethylene
- 2 different housing sizes available
- 3 horizontal inlet sockets DN 100
- 1 socket for cable gland DN 70
- 1 ventilation socket DN 50
- Top section for tileable cover
- Load class K3
- Rotatable and height-adjustable
- Integrated floor gully with water trap height = 50 mm
- Inspection opening = 330 x 250 mm
- Discharge line connection
- Pressure line connection according to EN ISO 15493 made of PVC-U; 50 40-R 1¼"
- Integrated non-return flap
- Cutter pump
- Degree of protection IP 67
- Installed in separate pump chamber
- With mechanical seal
- 10 m connecting cable
- Level switching
- Pneumatic level switching with 10 m control cable
- Control
- Degree of protection IP 54
- 1.5 m cable and plug with earthing contact
- Isolated group alarm and operating signal

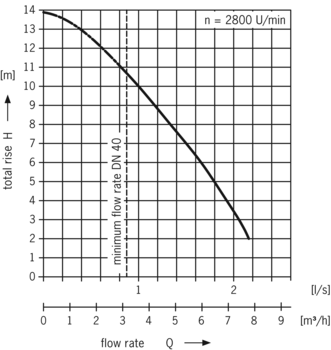

| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | |||||
|---|---|---|---|---|---|---|---|---|
| 2 m | 4 m | 6 m | 8 m | 10 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-UF MWP1 | 2 – 10.6 | 2.17 | 1.92 | 1.67 | 1.33 | 1.0 | 40 | 60 |
| Muli-UF MWP2 | 2 – 10.6 | 2.17 | 1.92 | 1.67 | 1.33 | 1.0 | 40 | 60 |
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12
Extension part
Suitable for
- Backflow stops for installation in the floor plate
- Sinkamat-K
- Muli-UF (underfloor)
- Quatrix-K
Description
- With lip seal
- Graduated height adjustment every 116 mm
- For Sinkamat-K maximum 2 extension pieces may be mounted
- For top section: 360 x 300mm
- For Triplex-K, Quatrix-K and Muli-UF maximum 1 extension pieces may be mounted
- Weight: 3.4 kg
- Rabattgruppe: 7
Sealing flange
Suitable for
- Backflow stops for installation in the floor plate
- Sinkamat-K
- Muli-UF (underfloor)
- Quatrix-K
Description
- For building into waterproof concrete
- Maximum groundwater level: 2 m
- Weight: 4.2 kg
- Rabattgruppe: 7
Pressure line set 50 mm diam.
Suitable for
- Sinkamat-K (underfloor)
- Mono
- Duo
- Muli-UF (underground)
Description
- 5 m pressure tube ext. diam. 50 (ID 42) with 1 ¼" PVC adaptor socket
- Max. pressure: 6 bar
- Weight: 4 kg
- Rabattgruppe: 12
