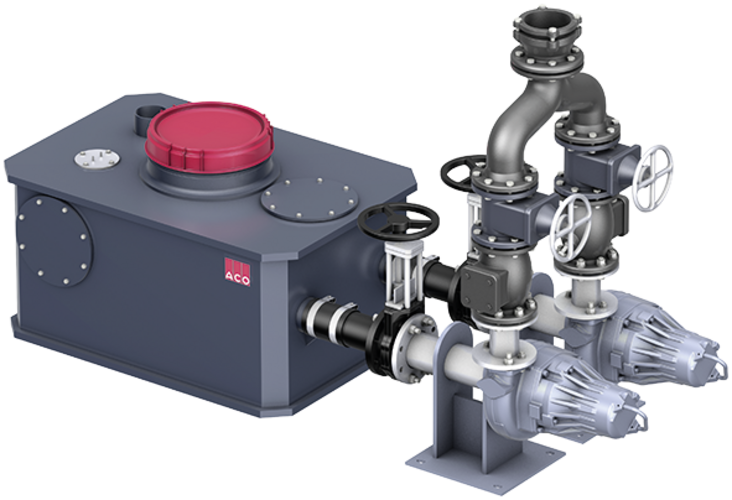

Waste water lifting plant Muli-XL DDP
Product information
- Applications:
- Commercial or industrial units with high levels of waste water
- Downstream of grease separators
- Waste water containing both long and short fibres
- Apartment buildings
- PE-HD tank
- 1 x inspection opening for easy servicing (350 mm clear width) with odour-proof plug cap
- Fixing kit for buoyancy-proof anchorage
- Inlet optionally horizontal on the side or at the end, or vertically from above, choice of DN 100, DN 150 or DN 200
- Vertical socket, choice of DN 70/100 (ventilation)
- R 1½" drain plug
- Two horizontally arranged pumps
- 400 V/50 Hz
- Protection type: IP 68
- Adaptive impeller
- Cable length: 10 m
- Extension pressure line
- Two special backflow valves with venting device
- Special DN 100 mounting adapter for connecting pressure lines from 108 – 114 mm outer pipe diameter (optionally 88 – 90 mm)
- Pneumatic level switching with pilot tube and pneumatic control line
- Mini compressor with air bubble injection available as an accessory
- Switch and alarm device
- Protection type: IP 54
- Cable and CEE plug (32 A): 1.5 m
- Isolated collective fault and operating messages
- Pneumatic control line and motor cable between lifting plant and switchbox: 10 m
Infobox
- The tank on the Muli XL is a configuration part that is manufactured to requirements. The usable volume, inlet height and sockets can be individually configured.

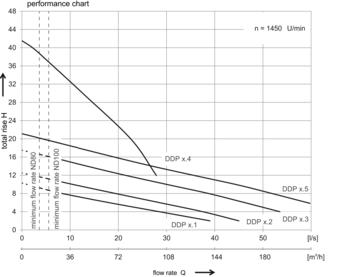

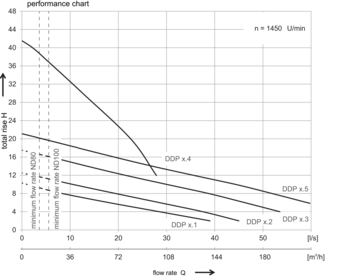

| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||||||
|---|---|---|---|---|---|---|---|---|---|
| 4 m | 8 m | 12 m | 16 m | 20 m | 24 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-XL DDP x.1 | 2 – 9 | 28.5 | 8.3 | 40 | 65 | ||||
| Muli-XL DDP x.2 | 2 – 11.2 | 37.5 | 19.4 | 2.0 | 40 | 65 | |||
| Muli-XL DDP x.3 | 4 – 16.4 | 53.5 | 38.7 | 21.0 | 6.0 | 40 | 65 | ||
| Muli-XL DDP x.4 | 14 – 39.5 | 27.5 | 24.75 | 21.5 | 40 | 65 | |||
| Muli-XL DDP x.5 | 6 – 19.2 | 52.0 | 35.5 | 18.0 | 2.0 | 40 | 65 | ||
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
Flashing light
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
Inlet valve DN 100
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 2 and 4
- LipuMobil – type 0.5
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 176 x 360 mm (L x H)
- Weight: 5.9 kg
Inlet valve DN 150
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Type 7 – Type 10
Description
- Made of PVC
- 160 mm push socket on both sides with rim sealing ring
- Overall dimensions: 226 x 510 mm (L x H)
- Weight: 7 kg
Inlet valve DN 200
Suitable for
- Wastewater lifting plant
- Muli-Star DDP 1/2
- Grease separator made of polyethylene
- From NS 15
Description
- Made out of PVC
- Push socket 200 mm with lip sealing ring on both sides
- Total dimensions: 264 x 637 mm (L x H)
- Weight: 8.4 kg
Inlet valve DN 150
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 7 to 10
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 226 x 420 mm (L x H)
- Weight: 10.2 kg
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
Hand membrane pump 1½"
Suitable for
- Wastewater lifting plant
Description
- For fixing to wall
- Incl. hose
- Clear width: 48 x 80 mm
- Incl, hose clamp
- Clear width: 50 x 70 mm
- Width: 12 mm
- 2 pces required
- Weight: 14.4 kg
Three way valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 3.3 kg
Stop valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 1 kg
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 88 - 93 mm
- Weight: 0.3 kg
siphon
Description
- Weight: 0.7 kg
siphon
Description
- Weight: 1.3 kg
