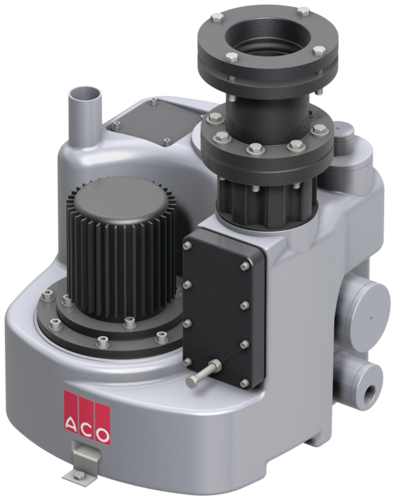

Waste water lifting plant Muli-Star MDP1/MWP1
Product benefits
- Low Weight: 31 kg
- Smooth and quiet running due to low speed
- Free passage: 57 mm
- Fast installation
- Ready to connect
- Can be installed through cover Ø 600
- Blockage-free free flow impeller
Product information
- Area of use
- Detached houses
- Basement flat
- Tank made of polyethylene
- With bottom outlet Rp 1"
- With inspection opening for easy maintenance, diameter: 133 mm
- With fixing set for buoyancy-proof anchorage
- Connection for manual diaphragm pump DN 50
- With 3 inlet horizontal sockets DN 100
- With 1 vertical inlet socket DN 50/DN 100
- With ventilation connection DN 50 for connection to plastic pipe
- Delivery line connection
- Special backflow valve with ball integrated in the housing with screw drain plug
- With integrated special adapter DN 100 for elastic connection of the delivery line of 108 – 114.3 mm outside pipe diameter
- With connecting flange for stop valve DN 80 PN 10
- Pump unit
- Three phase motor (MDP1): 400 V, 50 Hz
- Single phase motor (MWP1): 230 V, 50 Hz
- Degree of protection IP 68
- With blockage-free free-flow impeller
- With pneumatic level switching with 5 m control cable, adjustable to inlet height
- Switching and warning device
- Degree of protection IP 54
- With 1.5 m cable and CEE plug (for MDP1) and with plug with earthing contact (MWP1)
- With isolated group alarm and operation signal
- Tested to EN 12050-1
Infobox
Note: The max. temperature may only be reached for a short time.

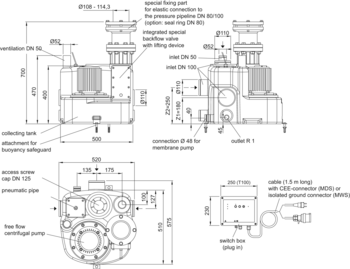

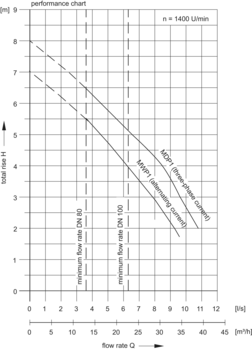

| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | |||
|---|---|---|---|---|---|---|
| 2 m | 4 m | 6 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-Star MDP1 | 2.5 – 6.5 | 10.9 | 8.6 | 4.5 | 40 | 60 |
| Muli-Star MWP1 | 2.5 – 5.5 | 9.7 | 7.0 | 40 | 60 | |
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Stop valve DN 80
Suitable for
- LipuSmart-P
- Muli-Star MDP1/MWP1
- Muli-Star DDP 1/2
Description
- Made of cast iron
- 8 screws and nuts
- 1 DN 80 seal
- Length: 180 mm
- Weight: 19.4 kg
- Rabattgruppe: 12
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 88 - 93 mm
- Weight: 0.3 kg
Inlet valve DN 100
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 2 and 4
- LipuMobil – type 0.5
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 176 x 360 mm (L x H)
- Weight: 5.9 kg
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
- Rabattgruppe: 12
Hand membrane pump 1½"
Suitable for
- Wastewater lifting plant
Description
- For fixing to wall
- Incl. hose
- Clear width: 48 x 80 mm
- Incl, hose clamp
- Clear width: 50 x 70 mm
- Width: 12 mm
- 2 pces required
- Weight: 14.4 kg
- Rabattgruppe: 12
Three way valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 3.3 kg
- Rabattgruppe: 12
Stop valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 1 kg
- Rabattgruppe: 12
