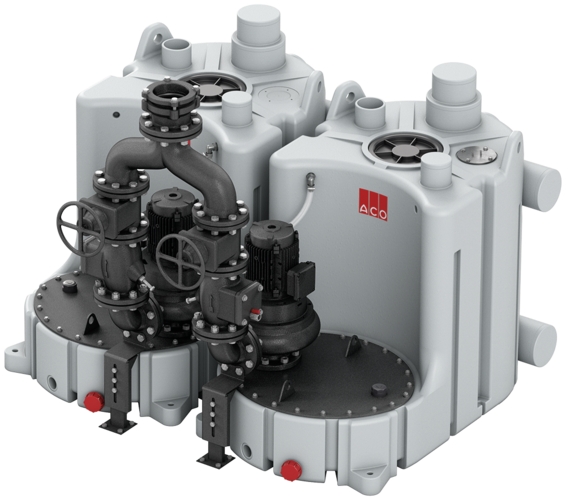

Waste water lifting plant Muli Pro-DDP parallel
Product benefits
- Large usable tank volume
- 8 inlets, 4 inlet heights
- High level of operational safety thanks to pilot tube and air bubble injection
- Energy-saving channel impeller
- Designed to fit through narrow doorways: 780 mm
Product information
- Areas of application
- Commercial or industrial units with high level of wastewater
- Where there are long discharge pressure lines with a large difference in height
- Downstream of grease separators up to NS 22.5
- Polyethylene tank
- With drain plug
- With connection for hand membrane pump 1½"
- With fixing kit for operationally secure attachment
- With 6 horizontal intake nozzles DN 150
- With 2 vertical intake nozzle DN 150/200
- With 2 service openings, clear width: 250 mm
- With ventilation sockets DN 100 to connect to plastic tube
- Connection pressure line
- With 2 special backflow stops DN 80 (DN 100 on MULI Pro-PE K‑75 duo) with venting device
- With Y-branch
- With special mounting adapter DN 100 for connection of 108 – 114.3 mm pipe external diameter pressure line
- 2 pump motors
- Three phase motor 400 V, 50 Hz
- IP 68 protection
- With axle and rotating mechanical seal
- With channel impeller
- Pneumatic level switching with pilot tube and pneumatic control line
- Mini compressor for air bubble injection
- Switch and alarm device
- IP 54 protection
- With 1.5 m cable and EEC plug
- With volt free centralised fault and operational warnings
- Incl. 10 m cable between lift and switch box.
Infobox
Note: The max. temperature must only be attained briefly.
Note: 3-tank plant on request
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12
Signal horn
Signal horn
Flashing light
Stop valve DN 80
Stop valve DN 100
Sealing ring
Securing piece ND 80
Securing piece ND 100
Inlet valve DN 100
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 2 and 4
- LipuMobil – type 0.5
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 176 x 360 mm (L x H)
- Weight: 5.9 kg
- Rabattgruppe: 12
Inlet valve DN 100
Inlet valve DN 150
Inlet valve DN 150
Inlet valve DN 200
Hand membrane pump 1½"
Three way valve 1½"
