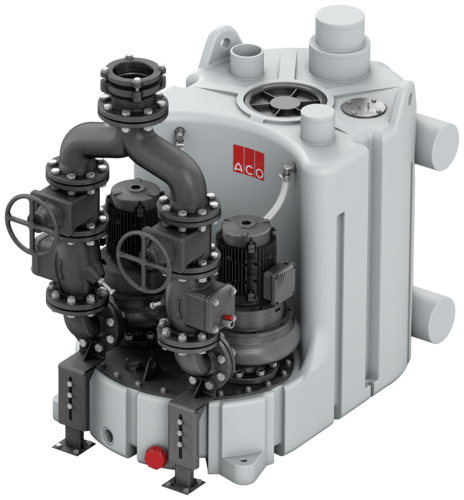

Waste water lifting plant Muli Pro-DDP
Product benefits
- Large usable tank volume
- Various inlet heights
- High level of operational safety thanks to pilot tube and air bubble injection
- Suitable for wastewater containing grease
- Can be extended in parallel lengths
- Energy-saving channel impeller
- Designed to fit through narrow doorways: 780 mm
Product information
- Areas of application
- Apartment buildings
- Small business premises with a high level of wastewater
- Downstream of grease separators up to NS 22,5
- Where there are long discharge pressure lines with a large difference in height
- Polyethylene tank
- With drain plug
- With connection for hand membrane pump 1½"
- With fixing kit for operationally secure attachment
- With 4 horizontal intake nozzles DN 150
- With 1 vertical intake nozzle DN 150/200
- With 1 service opening, clear width: 250 mm
- With ventilation sockets DN 100 to connect to plastic tube
- Connection pressure line
- With 2 special backflow stops DN 80 (DN 100 on Muli Pro-PE K‑75 duo) with venting device
- With Y-branch
- With special mounting adapter DN 100 for connection of 108 – 114.3 mm pipe external diameter pressure line
- 2 pump motors
- Three phase motor 400 V, 50 Hz
- IP 68 protection
- With axle and rotating mechanical seal
- With channel impeller
- Pneumatic level switching with pilot tube and pneumatic control line
- Mini compressor for air bubble injection
- Switch and alarm device
- IP 54 protection
- With 1.5 m cable and EEC plug
- With volt free centralised fault and operational warnings
- Incl. 10 m cable between lift and switch box.
Infobox
Note: The max. temperature must only be attained briefly.

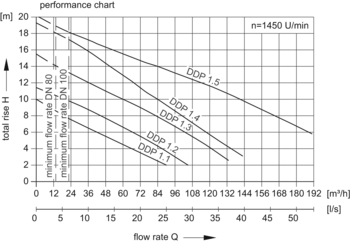

| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | 16 m | 18 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-Pro DDP 1.1 | 3 – 8 | 18.3 | 11.7 | 5.8 | 40 | 60 | |||||
| Muli-Pro DDP 1.2 | 3 – 10 | 24.2 | 18.5 | 12.5 | 5.3 | 40 | 60 | ||||
| Muli-Pro DDP 1.3 | 4 – 14 | 33.5 | 28.4 | 23.1 | 16.8 | 10.3 | 4.2 | 40 | 60 | ||
| Muli-Pro DDP 1.4 | 4 – 17 | 37.3 | 32.7 | 28.1 | 23.1 | 18.8 | 14.1 | 9.4 | 40 | 60 | |
| Muli-Pro DDP 1.5 | 6 – 18 | 51.8 | 46.2 | 39.2 | 31.7 | 23.2 | 14.2 | 6.8 | 40 | 60 | |
Stop valve DN 100
Suitable for
- Wastewater lifting plant
Description
- Made of cast iron
- For pressure line
- Length: 190 mm
- Weight: 34.3 kg
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Stop valve DN 80
Suitable for
- Wastewater lifting plant
Description
- Made of cast iron
- For pressure line
- Length: 180 mm
- Weight: 24 kg
- Rabattgruppe: 12
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 88 - 93 mm
- Weight: 0.3 kg
Securing piece ND 80
Suitable for
- Stop valve
- 0159.09.89
Description
- 8 screws and nuts
- 1 seal
- Weight: 1.3 kg
- Rabattgruppe: 12
Securing piece ND 100
Suitable for
- Stop valve
- 0159.09.90
Description
- 8 screws and nuts
- 1 seal
- Weight: 1.3 kg
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 2 and 4
- LipuMobil – type 0.5
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 176 x 360 mm (L x H)
- Weight: 5.9 kg
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
- Rabattgruppe: 12
Inlet valve DN 150
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 7 to 10
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 226 x 420 mm (L x H)
- Weight: 10.2 kg
- Rabattgruppe: 12
Inlet valve DN 150
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Type 7 – Type 10
Description
- Made of PVC
- 160 mm push socket on both sides with rim sealing ring
- Overall dimensions: 226 x 510 mm (L x H)
- Weight: 7 kg
- Rabattgruppe: 12
Inlet valve DN 200
Suitable for
- Wastewater lifting plant
- Muli-Star DDP 1/2
- Grease separator made of polyethylene
- From NS 15
Description
- Made out of PVC
- Push socket 200 mm with lip sealing ring on both sides
- Total dimensions: 264 x 637 mm (L x H)
- Weight: 8.4 kg
- Rabattgruppe: 11
Hand membrane pump 1½"
Suitable for
- Wastewater lifting plant
Description
- For fixing to wall
- Incl. hose
- Clear width: 48 x 80 mm
- Incl, hose clamp
- Clear width: 50 x 70 mm
- Width: 12 mm
- 2 pces required
- Weight: 14.4 kg
- Rabattgruppe: 12
Three way valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 3.3 kg
- Rabattgruppe: 12
Stop valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 1 kg
- Rabattgruppe: 12
