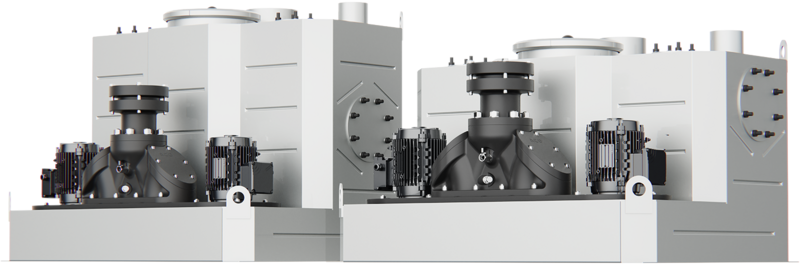

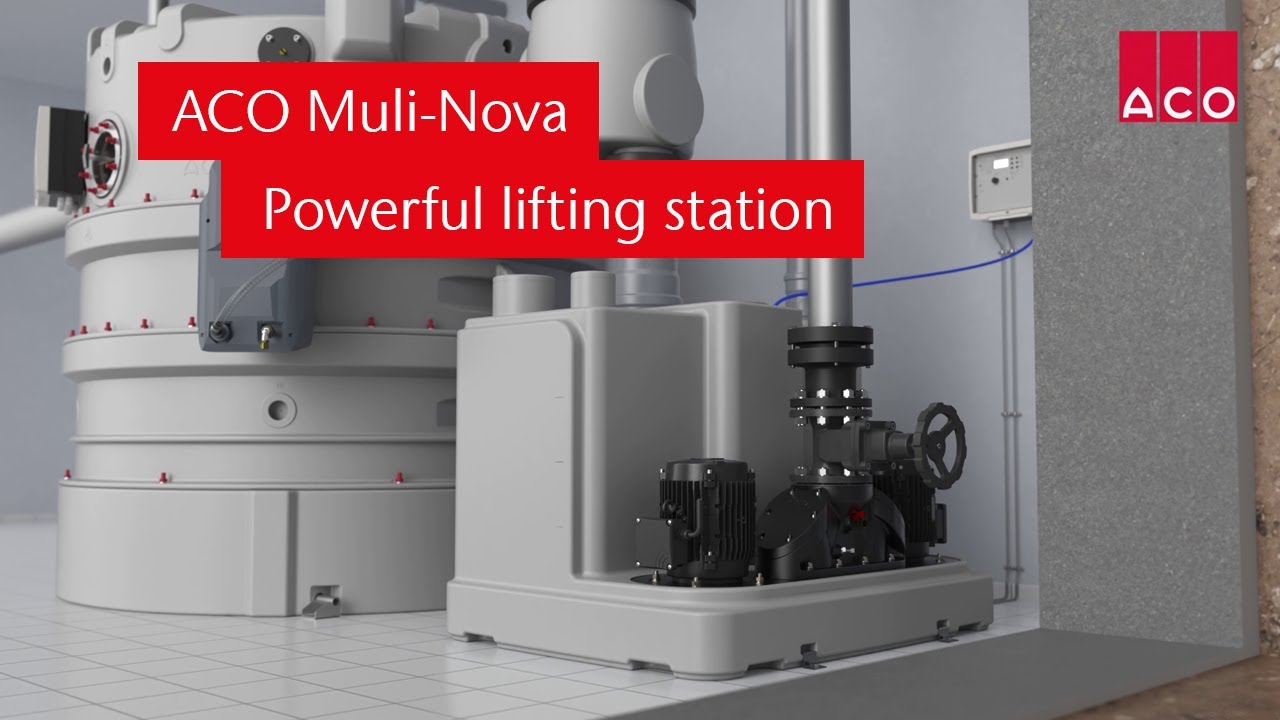

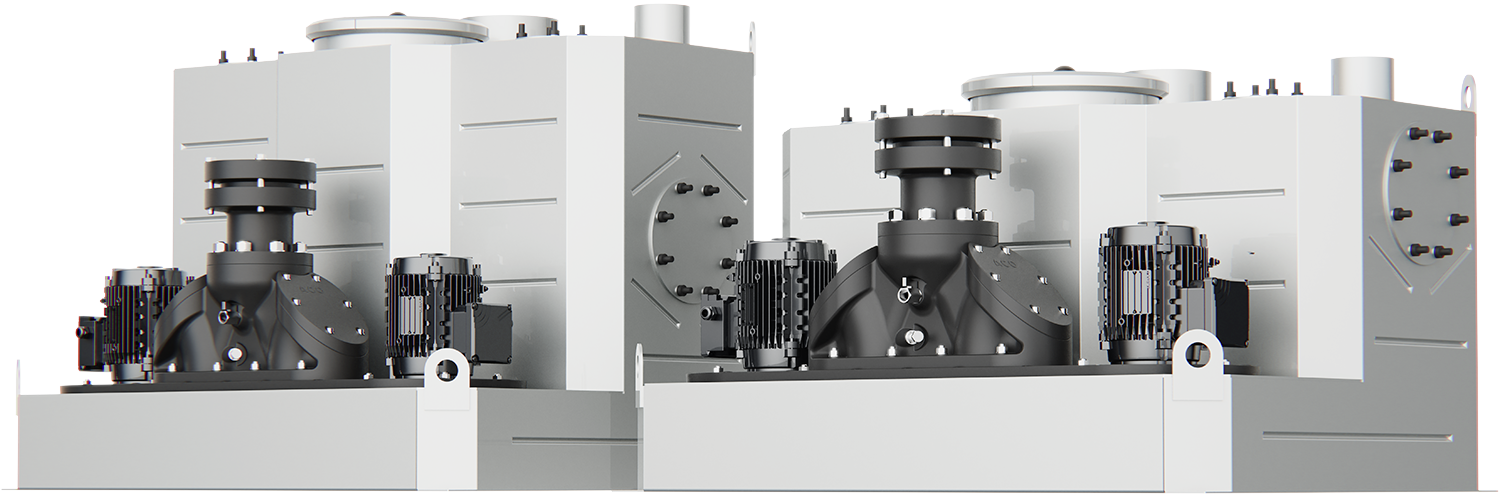

Waste water lifting plant Muli-Nova-S
Product benefits
- Low fire load, higher temperature resistance
- Tested in accordance with DIN EN 12050-1
- Delivery heights of up to 30 m possible
- 2 container sizes available (430/550 l)
- Easy-to-maintain backflow preventer (patented)
Product information
- Scope of application
- Multi-dwelling units
- Office buildings
- Industrial buildings
- Behind separators up to NS20 – in connection with air bubble injection
- Tank made of stainless steel
- Bottom outlet/connection for R 1 1/2" manual membrane pump
- Inspection opening for easy maintenance
- Fastening set for buoyancy-proof anchorage

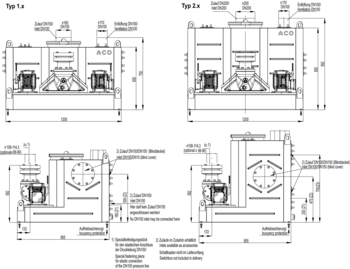

- DDP 1.x:
- Horizontal inlet sockets 3x DN 100/150, 1x DN100, each closed with a blank cover
- Vertical inlet sockets: 1x DN150, 1x DN100 (ventilation)
- DDP 2.x:
- 4x DN100/150 horizontal inlet sockets, each closed with a blank cover
- Vertical inlet sockets: 1x DN200, 1x DN100 (ventilation)
- Discharge line connection
- Patented flap backflow preventer with lift screw
- Drain cock for easy drain
- Special DN 80 mounting adapter for flexible connection of the discharge line with 108 – 114.3 mm outer pipe diameter (optional 88 – 93 mm)
- Connecting flange for DN 80 PN 16 stop valve
- 2 pumping sets
- Three-phase motor: 400 V, 50 Hz
- Protection class IP 68
- Blockage-free free flow impeller
- 10 m connecting cable
- Level switching
- Pneumatic level switching with 10 m control line
- Optional: Pressure transducer
- Optional: Air bubble injection (accessory) for measurement with pilot tube
- Tested in accordance with DIN EN 12050-1
- Permissible delivery temperature up to 40 °C (briefly up to max. 75 °C)
- Control system is not included in the scope of supply and must be ordered separately (see accessories)
Infobox
Note: The max. temperature may only be reached for a short time.
| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | 16 m | 18 m | 20 m | 22 m | 24 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-Nova-S DDP 1.1 | 2 – 10 | 14.4 | 12.1 | 9.2 | 5.3 | 0.4 | 40 | 60 | |||||||
| Muli-Nova-S DDP 1.2 | 2 – 24 | 19.4 | 18.4 | 16.7 | 15.0 | 13.2 | 11.7 | 10.2 | 8.6 | 6.8 | 5.0 | 3.1 | 0.6 | 40 | 60 |
| Muli-Nova-S DDP 1.3 | 2 – 31 | 22.3 | 22.1 | 21.9 | 21.0 | 19.9 | 19.0 | 17.8 | 16.4 | 15.2 | 13.9 | 12.2 | 10.8 | 40 | 60 |
| Muli-Nova-S DDP 2.1 | 2 – 10 | 14.4 | 12.1 | 9.2 | 5.3 | 0.4 | 40 | 60 | |||||||
| Muli-Nova-S DDP 2.2 | 2 – 24 | 19.4 | 18.4 | 16.7 | 15.0 | 13.2 | 11.7 | 10.2 | 8.6 | 6.8 | 5.0 | 3.1 | 0.6 | 40 | 60 |
| Muli-Nova-S DDP 2.3 | 2 – 31 | 22.3 | 22.1 | 21.9 | 21.0 | 19.9 | 19.0 | 17.8 | 16.4 | 15.2 | 13.9 | 12.2 | 10.8 | 40 | 60 |

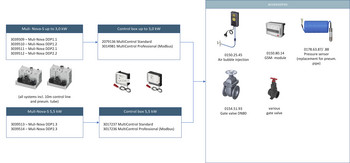

Switching device, ACO Multi Control Duo Professional without Dynamic pressure bell
Suitable for
- Muli-Nova DDP
- Muli-Nova x.1 / x.2
- Muli-Max
- Duo
- Powerlift–P/Powerlift-P/F-H
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- With Modbus RTU functionality for connection to the building management system
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- Without control cable
- Mains-independent alarm via 9V rechargeable battery (85dBA, 5-6h)
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Professional without Dynamic pressure bell
Suitable for
- Muli-Nova DDP
- Muli-Nova x.3
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- With Modbus RTU functionality for connection to the building management system
- CEE 32 plug with phase-changing switch
- Without control cable
- Mains-independent alarm via 9V rechargeable battery (85dBA, 5-6h)
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell
Suitable for
- Muli-Max
- Duo
- Powerlift–P / Powerlift-P/F-H
- Muli-Flex
- Muli-Nova DDP
- Muli-Nova x.1 / x.2
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- Without control line
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell
Suitable for
- Muli-Nova DDP
- Muli-Nova x.3
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- CEE 32 plug with phase-changing switch
- Without control line
- Weight: 5.4 kg
- Rabattgruppe: 12
Inlet valve DN 150
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Type 7 – Type 10
Description
- Made of PVC
- 160 mm push socket on both sides with rim sealing ring
- Overall dimensions: 226 x 510 mm (L x H)
- Weight: 7 kg
- Rabattgruppe: 12
Air bubble injection
Suitable for
- Muli-Max
- Powerlift–P
- Muli-Flex
Description
- To increase operational safety (where floating surfaces are generated e.g. grease separator)
- For pneumatic level switching
- Mini compressor
- Connection: 230 V
- Plug and use
- With T-screw-in connection
- With backflow valve
- Weight: 0.6 kg
- Rabattgruppe: 12
pressure sensor
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- With cable for installation: 20 m
- Weight: 2 kg
- Rabattgruppe: 12
pressure sensor
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- Cable for installation: 40 m
- Weight: 3.4 kg
- Rabattgruppe: 12
Safety barrier
Suitable for
- Pressure pick-off
- Float switch with ATEX-certificate
Description
- To separate Ex-risk and secure areas
- Incl. housing
- Weight: 0.5 kg
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Inlet valve DN 150
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 7 to 10
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 226 x 420 mm (L x H)
- Weight: 10.2 kg
- Rabattgruppe: 12
Float switch
Suitable for
- For faecal and non-faecal wastewater
- MultiControl controls as float switches
- MultiControl controls as additional High alarm float
Description
- Housing: PRE-ELEC PP
- Degree of protection: IP68
- Switch voltage: 4-40 V
- Switch current: 1-100 mA
- Connection cable: 10m
- Switch inclination: 10°
- Protection class: II 1G Ex ia IIC T6 Ga
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
- Rabattgruppe: 12
3047944: Halterung Niveau Messung aus VA
Suitable for
- Wastewater lifting station
- ACO Muli-Nova-S
3047949: Zulauf DN100 VA
Suitable for
- Wastewater lifting station
- ACO Muli-Nova-S
3047950: Zulauf DN150 VA
Suitable for
- Wastewater lifting station
- ACO Muli-Nova-S
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 83 - 93 mm
- Weight: 0.3 kg
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Pump stations with ACO MultiControl switching device
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Flashing light
Suitable for
- Pump stations with ACO MultiControl switching device
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 40 mA
- IP66
- Weight: 1 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 2 and 4
- LipuMobil – type 0.5
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 176 x 360 mm (L x H)
- Weight: 5.9 kg
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
- Rabattgruppe: 12
Inlet valve DN 200
Suitable for
- Wastewater lifting plant
- Muli-Star DDP 1/2
- Grease separator made of polyethylene
- From NS 15
Description
- Made out of PVC
- Push socket 200 mm with lip sealing ring on both sides
- Total dimensions: 264 x 637 mm (L x H)
- Weight: 8.4 kg
- Rabattgruppe: 11
Stop valve DN 80
Suitable for
- LipuSmart-P
- Muli-Star MDP1/MWP1
- Muli-Star DDP 1/2
Description
- Made of cast iron
- 8 screws and nuts
- 1 DN 80 seal
- Length: 180 mm
- Weight: 19.4 kg
- Rabattgruppe: 12
Hand membrane pump 1½"
Suitable for
- Wastewater lifting plant
Description
- For fixing to wall
- Incl. hose
- Clear width: 48 x 80 mm
- Incl, hose clamp
- Clear width: 50 x 70 mm
- Width: 12 mm
- 2 pces required
- Weight: 14.4 kg
- Rabattgruppe: 12
Three way valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 3.3 kg
- Rabattgruppe: 12
Stop valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 1 kg
- Rabattgruppe: 12
| Type | Delivery head | Delivery flow Q with overall delivery head H | Media temperature | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2 m | 4 m | 6 m | 8 m | 10 m | 12 m | 14 m | 16 m | 18 m | 20 m | 22 m | 24 m | Normal | Maximum | ||
| [m] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [l/s] | [°C] | [°C] | |
| Muli-Nova-S DDP 1.1 | 2 – 10 | 14.4 | 12.1 | 9.2 | 5.3 | 0.4 | 40 | 60 | |||||||
| Muli-Nova-S DDP 1.2 | 2 – 24 | 19.4 | 18.4 | 16.7 | 15.0 | 13.2 | 11.7 | 10.2 | 8.6 | 6.8 | 5.0 | 3.1 | 0.6 | 40 | 60 |
| Muli-Nova-S DDP 1.3 | 2 – 31 | 22.3 | 22.1 | 21.9 | 21.0 | 19.9 | 19.0 | 17.8 | 16.4 | 15.2 | 13.9 | 12.2 | 10.8 | 40 | 60 |
| Muli-Nova-S DDP 2.1 | 2 – 10 | 14.4 | 12.1 | 9.2 | 5.3 | 0.4 | 40 | 60 | |||||||
| Muli-Nova-S DDP 2.2 | 2 – 24 | 19.4 | 18.4 | 16.7 | 15.0 | 13.2 | 11.7 | 10.2 | 8.6 | 6.8 | 5.0 | 3.1 | 0.6 | 40 | 60 |
| Muli-Nova-S DDP 2.3 | 2 – 31 | 22.3 | 22.1 | 21.9 | 21.0 | 19.9 | 19.0 | 17.8 | 16.4 | 15.2 | 13.9 | 12.2 | 10.8 | 40 | 60 |
Switching device, ACO Multi Control Duo Professional without Dynamic pressure bell
Suitable for
- Muli-Nova DDP
- Muli-Nova x.1 / x.2
- Muli-Max
- Duo
- Powerlift–P/Powerlift-P/F-H
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- With Modbus RTU functionality for connection to the building management system
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- Without control cable
- Mains-independent alarm via 9V rechargeable battery (85dBA, 5-6h)
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Professional without Dynamic pressure bell
Suitable for
- Muli-Nova DDP
- Muli-Nova x.3
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- With Modbus RTU functionality for connection to the building management system
- CEE 32 plug with phase-changing switch
- Without control cable
- Mains-independent alarm via 9V rechargeable battery (85dBA, 5-6h)
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell
Suitable for
- Muli-Max
- Duo
- Powerlift–P / Powerlift-P/F-H
- Muli-Flex
- Muli-Nova DDP
- Muli-Nova x.1 / x.2
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- CEE 16 plug with phase-changing switch
- Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
- Without control line
- Weight: 5.4 kg
- Rabattgruppe: 12
Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell
Suitable for
- Muli-Nova DDP
- Muli-Nova x.3
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- CEE 32 plug with phase-changing switch
- Without control line
- Weight: 5.4 kg
- Rabattgruppe: 12
Inlet valve DN 150
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Type 7 – Type 10
Description
- Made of PVC
- 160 mm push socket on both sides with rim sealing ring
- Overall dimensions: 226 x 510 mm (L x H)
- Weight: 7 kg
- Rabattgruppe: 12
Air bubble injection
Suitable for
- Muli-Max
- Powerlift–P
- Muli-Flex
Description
- To increase operational safety (where floating surfaces are generated e.g. grease separator)
- For pneumatic level switching
- Mini compressor
- Connection: 230 V
- Plug and use
- With T-screw-in connection
- With backflow valve
- Weight: 0.6 kg
- Rabattgruppe: 12
pressure sensor
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- With cable for installation: 20 m
- Weight: 2 kg
- Rabattgruppe: 12
pressure sensor
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Powerlift-P/F-H
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- Cable for installation: 40 m
- Weight: 3.4 kg
- Rabattgruppe: 12
Safety barrier
Suitable for
- Pressure pick-off
- Float switch with ATEX-certificate
Description
- To separate Ex-risk and secure areas
- Incl. housing
- Weight: 0.5 kg
- Rabattgruppe: 12
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg
- Rabattgruppe: 12
Inlet valve DN 150
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 7 to 10
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 226 x 420 mm (L x H)
- Weight: 10.2 kg
- Rabattgruppe: 12
Float switch
Suitable for
- For faecal and non-faecal wastewater
- MultiControl controls as float switches
- MultiControl controls as additional High alarm float
Description
- Housing: PRE-ELEC PP
- Degree of protection: IP68
- Switch voltage: 4-40 V
- Switch current: 1-100 mA
- Connection cable: 10m
- Switch inclination: 10°
- Protection class: II 1G Ex ia IIC T6 Ga
- Rabattgruppe: 12
Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
- Rabattgruppe: 12
3047944: Halterung Niveau Messung aus VA
Suitable for
- Wastewater lifting station
- ACO Muli-Nova-S
3047949: Zulauf DN100 VA
Suitable for
- Wastewater lifting station
- ACO Muli-Nova-S
3047950: Zulauf DN150 VA
Suitable for
- Wastewater lifting station
- ACO Muli-Nova-S
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Powerlift–P / Powerlift-P/F-H
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
- Rabattgruppe: 12
Connection and flood module set
Suitable for
- Triplex-K backflow stops
- DN 100 – DN 150
- Quatrix-K backflow stops
- All wastewater lifting plants
- All separators
Description
- To report a leak caused for example by a pipe bursting
- For electrically conducting liquids
- With volt free contact
- Visible and audible alarms (approx. 80 dB)
- Dimensions (width x height x depth): 160 x 120 x 75 mm
- Protection level: IP 65
- Operating voltage: 230 V/AC 50/60 Hz
- Plug and use: 1.4 m
- Overflow indicator with 10 m cable
- Weight: 1.1 kg
- Rabattgruppe: 12
Sealing ring
Suitable for
- LipuSmart-P
- Powerlift installation kit DN 100
- Fäkablock II
- All Muli wastewater lifting plants
Description
- As additional component for pressure line DN 80
- Clamping range: 83 - 93 mm
- Weight: 0.3 kg
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
- Rabattgruppe: 12
Signal horn
Suitable for
- Pump stations with ACO MultiControl switching device
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
- Rabattgruppe: 12
Flashing light
Suitable for
- Pump stations with ACO MultiControl switching device
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 40 mA
- IP66
- Weight: 1 kg
- Rabattgruppe: 12
Flashing light
Description
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Grease separator made of polyethylene
- Starch separator made of polyethylene
- Upstream tank systems type 2 and 4
- LipuMobil – type 0.5
Description
- Made out of PVC
- Spigot Ø110 on both sides for sleeveless pipe systems made of cast iron or plastic
- Total dimensions: 176 x 360 mm (L x H)
- Weight: 5.9 kg
- Rabattgruppe: 12
Inlet valve DN 100
Suitable for
- Wastewater lifting plant
- Polyethylene grease separator
- Polyethylene starch separator
- Upstream tank plant
- Typ 2 and 4
- LipuMobil-P – Type 0.5
Description
- Made of PVC
- 110 mm push socket on both sides with rim sealing ring
- Overall dimensions: 176 x 330 mm (L x H)
- Weight: 3.1 kg
- Rabattgruppe: 12
Inlet valve DN 200
Suitable for
- Wastewater lifting plant
- Muli-Star DDP 1/2
- Grease separator made of polyethylene
- From NS 15
Description
- Made out of PVC
- Push socket 200 mm with lip sealing ring on both sides
- Total dimensions: 264 x 637 mm (L x H)
- Weight: 8.4 kg
- Rabattgruppe: 11
Stop valve DN 80
Suitable for
- LipuSmart-P
- Muli-Star MDP1/MWP1
- Muli-Star DDP 1/2
Description
- Made of cast iron
- 8 screws and nuts
- 1 DN 80 seal
- Length: 180 mm
- Weight: 19.4 kg
- Rabattgruppe: 12
Hand membrane pump 1½"
Suitable for
- Wastewater lifting plant
Description
- For fixing to wall
- Incl. hose
- Clear width: 48 x 80 mm
- Incl, hose clamp
- Clear width: 50 x 70 mm
- Width: 12 mm
- 2 pces required
- Weight: 14.4 kg
- Rabattgruppe: 12
Three way valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 3.3 kg
- Rabattgruppe: 12
Stop valve 1½"
Suitable for
- Wastewater lifting plant
Description
- For hand membrane pump
- Weight: 1 kg
- Rabattgruppe: 12
