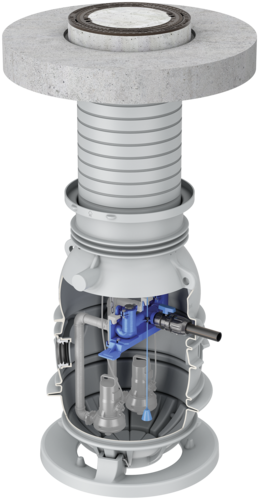

Pumping stations Muli-Max mono/duo – load class: D 400

Product benefits

  • Total installation depth up to 3000 mm
  • Inlet depth max. 2225 mm
  • Pneumatic level switch for high operational safety
  • Buoyancy-proof against ground water level up to 0.675 m from ground level
    • Optional: foot for buoyancy safety completely up to ground level OK
  • Installation without on-site concrete work
  • Accessible by all vehicles, including trucks

Product information

  • Application areas
    • Single and multiple family houses
    • Office buildings
    • Industrial buildings
    • Pressure Drainage
  • Single or double pump station for below ground installation from polyethylene
  • Tested according to EN 12050
  • With automatic above water coupling
    • Suitable for submersible pumps from ACO
  • Pressure connection from PE-HD DN 50 (OD 63 mm), with ball valve and compression fitting 63 x 63 mm OD
  • Installation height: 2,200-3,000mm
  • Connecting height (from top of tank to center of pressure connection): 1,150 – 1,950 mm mm
  • Two inlets OD 160 mm, connecting height top of cover until center of pipe: 1,425 – 2,225 mm, one sealing ring in scope of delivery
  • Two inlets OD 110 mm, connecting h height top of cover until center of pipe height: 1,425 mm – 2,225 mm
  • Two connections OD 110 mm for cable pipe and ventilation, connecting height top of cover until center of pipe height: 70 – 1,570 mm
  • Connection with pipe sleeve R ½” for rinsing connection / vacuum interruption (accessories)
  • Manhole cover (optionally locked)
    • Load class: D400
    • Opening: 600 mm according to EN 124
    • Without ventilation
    • With lifting tool
  • With load distribution plate: OD 1550 mm/ID 625 mm, height 200 mm from reinforced concrete
  • With raising tube
    • Height: 1,300 mm
    • Height-adjustable, inclusive sealing ring
  • Suitable submerged pumps mono/duo
TypeDescriptionHeightUsable volumeWeightItem

number
Remember
To
[mm][l][kg]
Mono
  • Cover: placed loosely
22502709850178.13.8612
Mono
  • Cover: screwed shut odour-proof
225027010620178.13.8712
Duo
  • Cover: placed loosely
22502709980178.13.8812
Duo
  • Cover: screwed shut odour-proof
225027010760178.13.8912
TypeDescriptionHeightUsable volumeWeightItem

number
To
ImageMono
  • Cover: placed loosely
2250 mm270 l985 kg0178.13.86
ImageMono
  • Cover: screwed shut odour-proof
2250 mm270 l1062 kg0178.13.87
ImageDuo
  • Cover: placed loosely
2250 mm270 l998 kg0178.13.88
ImageDuo
  • Cover: screwed shut odour-proof
2250 mm270 l1076 kg0178.13.89

Switching device, ACO Multi Control Mono Advanced

Suitable for
  • Muli-Max
    • Mono-plant
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • EEC 16-plug with phase inverter
  • 20 m pneumatic control line 10 x 1.5 mm
  • Dynamic pressure bell
  • Cable duct
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 8 VA
  • Temperature range: -20 to +60 °C
  • IP 54 protection
  • Weight: 4 kg
  • Rabattgruppe: 12

Switching device, ACO Multi Control Mono Professional

Suitable for
  • Muli-Max
    • Mono-plant
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • EEC 16-plug with phase inverter
  • 20 m pneumatic control line 10 x 1.5 mm
  • Dynamic pressure bell
  • Cable duct
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 8 VA
  • Temperature range: -20 to +60 °C
  • IP 54 protection
  • With Modbus RTU - functionality for connection to the building management system
  • Weight: 4 kg
  • Rabattgruppe: 12

Switching device, ACO Multi Control Duo Advanced incl. Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo-plants
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • 20 m pneumatic control cable 8 x 6 mm
  • Weight: 5.4 kg
  • Rabattgruppe: 12

Switching device, ACO Multi Control Duo Professional incl. Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo-plants
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • With Modbus RTU functionality for connection to the building management system
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • 20 m pneumatic control cable 8 x 6 mm
  • Weight: 5.4 kg
  • Rabattgruppe: 12

Switching device, ACO Multi Control Duo Advanced without Dynamic pressure bell

Suitable for
  • Muli-Max
    • Duo
  • Powerlift–P / Powerlift-P/F-H
  • Muli-Flex
  • Muli-Nova DDP
    • Muli-Nova x.1 / x.2
Description
  • For pumps up to 5,5 kW
  • Plug and use with 1.5 m mains cable
  • Operating voltage: 400 V
  • Frequency: 50/60 Hz
  • Control voltage: 230 V/AC
  • Current consumption when idling: max 10 VA
  • Temperature range: -20 to +60 ° C
  • IP 54 protection
  • CEE 16 plug with phase-changing switch
    • Convertible to CEE 32 with item no. 0150.79.75 (5G4 with CEE 32 plug)
  • Without control line
  • Weight: 5.4 kg
  • Rabattgruppe: 12

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Flashing light

Description
  • Rabattgruppe: 12

Float switch

Suitable for
  • For faecal and non-faecal wastewater
  • MultiControl controls as float switches
  • MultiControl controls as additional High alarm float
Description
  • Housing: PRE-ELEC PP
  • Degree of protection: IP68
  • Switch voltage: 4-40 V
  • Switch current: 1-100 mA
  • Connection cable: 10m
  • Switch inclination: 10°
  • Protection class: II 1G Ex ia IIC T6 Ga
  • Rabattgruppe: 12

Drill connection seal DN 110

Description
  • Weight: 0.4 kg
  • Rabattgruppe: 12

Drill connection seal DN 150

Description
  • Weight: 0.5 kg
  • Preis 01.01.2024 in € (zzgl. Umsatzsteuer): 55,22 €
  • Rabattgruppe: 12

Foot for buoyancy protection

Description
  • Weight: 11.5 kg
  • Rabattgruppe: 12

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg
  • Rabattgruppe: 12

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V AC
  • Power consumption: 30mA
  • Ø62x85 mm (L/B x T)
  • Protection: IP66
  • 95 dB(A)
  • Weight: 0.3 kg
  • Rabattgruppe: 12

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 30 mA
  • 62 x 62 x 85 mm (LxWxD)
  • Degree of protection: IP66
  • Noise level: 95 dB(A)
  • Weight: 0.2 kg
  • Rabattgruppe: 12

Air bubble injection

Suitable for
  • Muli-Max
  • Powerlift–P
  • Muli-Flex
Description
  • To increase operational safety (where floating surfaces are generated e.g. grease separator)
  • For pneumatic level switching
  • Mini compressor
    • Connection: 230 V
    • Plug and use
  • With T-screw-in connection
  • With backflow valve
  • Weight: 0.6 kg
  • Rabattgruppe: 12

Outdoor cabinet

Description
  • Dimensions: 310 x 1460 x 207 mm (H x W x D)
  • With pre-fuse C16 (16 A)
  • With 10 mm² PE-terminals for voltage compensation
  • Flashing light (knock resistant)
  • Closed using safety lock cylinder
  • Weight: 21 kg
  • Rabattgruppe: 12

Outdoor cabinet

Description
  • Dimensions: 310 x 1460 x 207 mm (H x W x D)
  • With pre-fuse C16 (16 A)
  • With 10 mm² PE-terminals for voltage compensation
  • Flashing light (knock resistant)
  • Closed using safety lock cylinder
  • Weight: 21.1 kg
  • Rabattgruppe: 12

Outdoor cabinet

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-B/P-D
Description
  • As empty housing
  • Dimensions: 310 x 230 x 1,400 mm (L x W x H)
  • For installation for an on-site backflow loop in DN 50
  • With heated cabinet and thermostat, 230 V, 50 Hz
  • Integrated back-up fuse: 1-pole B16A
  • With mounting plate and safety lock
  • Weight: 13.8 kg
  • Rabattgruppe: 12

Outdoor cabinet for local pressure pipes an controller

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-DA/P-DAP
Description
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • DN 50 – DN 150
  • With mounting plate incl. base
  • With lamp
  • With CEE32 and work socket with earth contact
  • Integrated back-up fuse: 3-pole B32A
  • Integrated Fi 40 40/0.03A 4-pole
  • With heating and thermostat
  • With security lock
  • Weight: 76 kg
  • Rabattgruppe: 12

Outdoor cabinet for local pressure pipes an controller

Suitable for
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • LipuLift-P-B/P-D
Description
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • DN 50 – DN 150
  • With mounting plate incl. base
  • With lamp
  • With CEE16 and work socket
  • Integrated back-up fuse: 3-pole C20A
  • Integrated Fi 40 40/0.03A 4-pole
  • With heating and thermostat
  • With security lock
  • Weight: 76 kg
  • Rabattgruppe: 12

Open air cupboard

Suitable for
  • GRP outdoor cabinet for on-site pressure line
    • DN 80
    • DN 100
    • DN 125
    • DN 150
,
  • LipuLift-P Serie
  • Powerlift-P/F-H
Description
  • With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
  • With mounting plate incl. base
  • With heating and thermostat
  • With CEE32 and work socket with earth contact
  • Integrated back-up fuse: 3-pole B32A
  • Integrated Fi 40 40/0.03A 4-pole
  • Dimension: 2000 x 806 x 335 mm (H x W x D)
  • Weight: 100 kg
  • Rabattgruppe: 12

Pressure pick-up

Suitable for
  • Control ACO Multi-Control Mono/Duo
  • LipuLift-P/LipuLift-PF
  • Powerlift-P/F-H
  • Muli-Flex
Description
  • 4–20 mA
  • For secure switching cable lengths > 12 m
  • 0–200 mbar
  • With cable for installation: 20 m
  • Weight: 2 kg
  • Rabattgruppe: 12

Pressure pick-up

Suitable for
  • Control ACO Multi-Control Mono/Duo
  • LipuLift-P/LipuLift-PF
  • Powerlift-P/F-H
  • Muli-Flex
Description
  • 4–20 mA
  • For secure switching cable lengths > 12 m
  • 0–200 mbar
  • Cable for installation: 40 m
  • Weight: 3.4 kg
  • Rabattgruppe: 12

Safety barrier

Suitable for
  • Pressure pick-off
  • Float switch with ATEX-certificate
Description
  • To separate Ex-risk and secure areas
  • Incl. housing
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Guide strap

Suitable for
  • Top section
    • 0178.08.35
Description
  • Quantity required
    • 1 pce for Muli-Max Mono
    • 2 pces for Muli-Max Duo
    • 2 pces for LipuLift-P
  • Weight: 1.6 kg
  • Rabattgruppe: 12

Guide strap

Suitable for
  • Top section
    • 0178.08.36
Description
  • Quantity required
    • 1 pce for Muli-Max Mono
    • 2 pces for Muli-Max Duo
  • Weight: 2 kg
  • Rabattgruppe: 12

Flushing connection

Suitable for
  • Muli-Max
  • Powerlift–P
  • Muli-Flex
Description
  • Total height: 430 mm
  • Weight: 2 kg
  • Rabattgruppe: 12

Vacuum relief valve

Suitable for
  • Muli-Max
  • Powerlift–P
Description
  • Only possible in combination with Flushing connection
  • Weight: 1.5 kg
  • Rabattgruppe: 12

Compression fitting 63 x 63 mm

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
  • LipuLift-P
  • Muli-Max
Description
  • Material: PP
  • Pressure level: PN16
  • For extension of the pressure line pipe Ø63 mm
  • Weight: 0.6 kg
  • Rabattgruppe: 12

Compression fitting 63 x 75 mm

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
  • LipuLift-P
  • Muli-Max
Description
  • Material: PP
  • Pressure level: PN16
  • For extending the pressure line diameter from Ø63 mm to Ø75 mm
  • Weight: 0.8 kg
  • Rabattgruppe: 12

Compression fitting 63 x 90 mm

Suitable for
  • Powerlift installation kit DN 50
  • Powerlift–P
  • LipuLift-P
  • Muli-Max
Description
  • Material: PP
  • Pressure level: PN16
  • For extending the pressure line diameter from Ø63 mm to Ø90 mm
  • Weight: 0.7 kg
  • Rabattgruppe: 12
