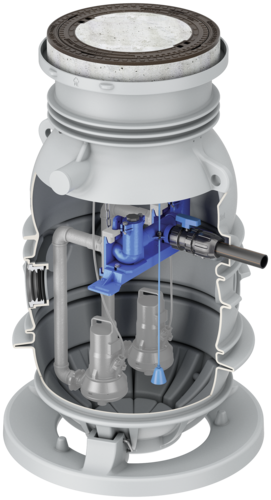

Pumping stations Muli-Max mono/duo – load class: B 125
Product benefits
- Total installation depth up to 3000 mm
- Inlet depth max. 2225 mm
- Pneumatic level switch for high operational safety
- Buoyancy-proof against ground water level up to 0.675 m from ground level
- Optional: foot for buoyancy safety completely up to ground level OK
- Installation without on-site concrete work
- Accessible by cars
Product information
- Application areas
- Single and multiple family houses
- Office buildings
- Industrial buildings
- Pressure Drainage
- Single or double pump station for below ground installation from polyethylene
- Tested according to EN 12050
- With automatic above water coupling
- Suitable for submersible pumps from ACO
- Pressure connection from PE-HD DN 50 (OD 63 mm), with ball valve and compression fitting 63 x 63 mm OD
- Installation height: 1,951mm
- Connecting height (from top of tank to center of pressure connection): 901 mm
- Two inlets OD 160 mm, connecting height top of cover until center of pipe: 1,176 mm, one sealing ring in scope of delivery
- Two inlets OD 110 mm, connecting h height top of cover until center of pipe height: 1,176 mm
- Two connections OD 110 mm for cable pipe and ventilation, connecting height top of cover until center of pipe height: 521 mm
- Connection with pipe sleeve R ½” for rinsing connection / vacuum interruption (accessories)
- Manhole cover (optionally locked)
- Load class: B125
- Opening: 600 mm according to EN 124
- Without ventilation
- With lifting tool
- Suitable submerged pumps mono/duo
Switching device, ACO Multi Control Mono
Suitable for
- Muli-Max
- Mono-plant
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 16-plug with phase inverter
- 20 m pneumatic control line 10 x 1.5 mm
- Dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 8 VA
- Temperature range: -20 to +60 °C
- IP 54 protection
- Weight: 4 kg
Switching device, ACO Multi Control Mono Professional
Suitable for
- Muli-Max
- Mono-plant
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 16-plug with phase inverter
- 20 m pneumatic control line 10 x 1.5 mm
- Dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 8 VA
- Temperature range: -20 to +60 °C
- IP 54 protection
- With Modbus RTU - functionality for connection to the building management system
- Weight: 4 kg
Switching device, ACO Multi Control Duo Professional incl. Dynamic pressure bell
Suitable for
- Muli-Max
- Duo-plants
- Powerlift–P
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 16-plug with phase inverter
- 20 m pneumatic control line 10 x 1.5 mm
- Dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- Weight: 5.4 kg
Switching device, ACO Multi Control Duo incl. Dynamic pressure bell
Suitable for
- Muli-Max
- Duo-plants
- Powerlift–P
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 16-plug with phase inverter
- 20 m pneumatic control line 10 x 1.5 mm
- Dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 16-plug with phase inverter
- 20 m pneumatic control line 8 x 6 mm
- Dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- Weight: 5.4 kg
Switching device, ACO Multi Control Duo without Dynamic pressure bell
Suitable for
- Muli-Max
- Duo-plants
- Powerlift–P
- Muli-Flex
Description
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 16-plug with phase inverter
- 20 m pneumatic control line 10 x 1.5 mm
- Dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- For pumps up to 5,5 kW
- Plug and use with 1.5 m mains cable
- EEC 32-plug with phase inverter
- Without pneumatic control line and dynamic pressure bell
- Cable duct
- Operating voltage: 400 V
- Frequency: 50/60 Hz
- Control voltage: 230 V/AC
- Current consumption when idling: max 10 VA
- Temperature range: -20 to +60 ° C
- IP 54 protection
- Weight: 6.0 kg
- Weight: 5.4 kg
Flashing light
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V
- Power consumption: 70 mA
- Weight: 0.5 kg
Flashing light
Float switch
Suitable for
- For faecal and non-faecal wastewater
- MultiControl controls as float switches
- MultiControl controls as additional High alarm float
Description
- Housing: PRE-ELEC PP
- Degree of protection: IP68
- Switch voltage: 4-40 V
- Switch current: 1-100 mA
- Connection cable: 10m
- Switch inclination: 10°
- Protection class: II 1G Ex ia IIC T6 Ga
Drill connection seal DN 110
Description
- Weight: 0.4 kg
Drill connection seal DN 150
Description
- Weight: 0.5 kg
Foot for buoyancy protection
Description
- Weight: 11.5 kg
Signalling unit
Suitable for
- Faecal matter backflow automatic stop Quatrix-K type 3F
- All Muli wastewater lifting plants
- Upstream tank plant mono/duo
- Muli-Max
- Sinkamat –K/-KD
- Sinkamat-Z
- Sinkamat-Z (underfloor)
- Duo
- LipuLift-P
Description
- Self-charging
- With floating contact
- Visual and acoustic
- Without contact transmitter
- For mounting outside the potentially explosive atmosphere
- Dimensions: 175 x 125 x 75 mm W x H x D
- Protection type: IP65
- Operating voltage: 230 V/AC 50/60 Hz
- Ready to plug in with cable: 2 m
- Weight: 1.4 kg
Message system with GSM module
Suitable for
- All grease separators
- Grease layer thickness measuring device
- Pre-tank plants
- Technical processing systems
- Quatrix-K backflow preventer type 3F
- Sinkamat-K (underfloor) duo
- Muli lifting units
- Pumping stations
- Installation sets
Description
- Parameter via app (Android & iOs)
- Mains-independent alarm via 12V lead-gel battery
- Optical and acoustic alarm message
- Freely configurable inputs
- 6 digital inputs with LED status display
- 1 analogue
- 1 alarm output 12 V
- Alarm forwarding via SMS to mobile phones
- For mounting outside the hazardous area
- Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
- Protective doctor: IP54
- Operating voltage: 230 V/AC 50/60 Hz
- Weight: 2 kg

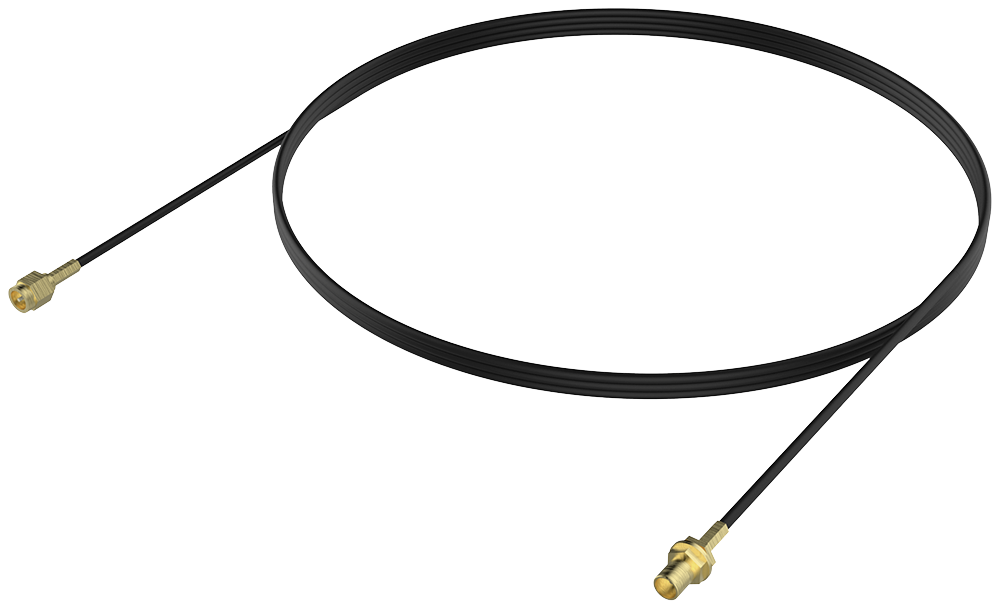

Connection cable antenna GSM
Suitable for
- GSM - Modul
Description
- Length incl. connections: approx. 15 m
- Cable type: RG58
- Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
- Only one extension cable may be used per GSM module
- Usable in temperature range: -20°C to 85°C
Signal horn
Suitable for
- Signalling unit with voltage-free fault reporting
- LipuSmart-P
- Muli-Max with signalling unit
- LipuLift-P
Description
- 230V AC
- Power consumption: 30mA
- Ø62x85 mm (L/B x T)
- Protection: IP66
- 95 dB(A)
- Weight: 0.3 kg
Signal horn
Suitable for
- Signalling unit
- Signalling unit with GSM module
Description
- Operating voltage: 12V DC
- Power consumption: 30 mA
- 62 x 62 x 85 mm (LxWxD)
- Degree of protection: IP66
- Noise level: 95 dB(A)
- Weight: 0.2 kg
Air bubble injection
Suitable for
- Muli-Max
- Powerlift–P
- Muli-Flex
Description
- To increase operational safety (where floating surfaces are generated e.g. grease separator)
- For pneumatic level switching
- Mini compressor
- Connection: 230 V
- Plug and use
- With T-screw-in connection
- With backflow valve
- Weight: 0.6 kg
Outdoor cabinet
Description
- Dimensions: 310 x 1460 x 207 mm (H x W x D)
- With pre-fuse C16 (16 A)
- With 10 mm² PE-terminals for voltage compensation
- Flashing light (knock resistant)
- Closed using safety lock cylinder
- Weight: 21 kg
Outdoor cabinet
Description
- Dimensions: 310 x 1460 x 207 mm (H x W x D)
- With pre-fuse C16 (16 A)
- With 10 mm² PE-terminals for voltage compensation
- Flashing light (knock resistant)
- Closed using safety lock cylinder
- Weight: 21.1 kg
Outdoor cabinet
Suitable for
- Muli-Max
- Powerlift–P
- LipuLift-P-B/P-D
Description
- As empty housing
- Dimensions: 310 x 230 x 1,400 mm (L x W x H)
- For installation for an on-site backflow loop in DN 50
- With heated cabinet and thermostat, 230 V, 50 Hz
- Integrated back-up fuse: 1-pole B16A
- With mounting plate and safety lock
- Weight: 13.8 kg
Outdoor cabinet for local pressure pipes an controller
Suitable for
- Muli-Max
- Powerlift–P
- LipuLift-P-DA/P-DAP
Description
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- DN 50 – DN 150
- With mounting plate incl. base
- With lamp
- With CEE32 and work socket with earth contact
- Integrated back-up fuse: 3-pole B32A
- Integrated Fi 40 40/0.03A 4-pole
- With heating and thermostat
- With security lock
- Weight: 76 kg
Outdoor cabinet for local pressure pipes an controller
Suitable for
- Muli-Max
- Powerlift–P
- LipuLift-P-B/P-D
Description
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- DN 50 – DN 150
- With mounting plate incl. base
- With lamp
- With CEE16 and work socket
- Integrated back-up fuse: 3-pole C20A
- Integrated Fi 40 40/0.03A 4-pole
- With heating and thermostat
- With security lock
- Weight: 76 kg
Open air cupboard
Suitable for
- GRP outdoor cabinet for on-site pressure line
- DN 80
- DN 100
- DN 125
- DN 150
- LipuLift-P Serie
Description
- With reserve space for installation of an on-site backflow loop according to DIN 12056-4 and 1986-100
- With mounting plate incl. base
- With heating and thermostat
- With CEE32 and work socket with earth contact
- Integrated back-up fuse: 3-pole B32A
- Integrated Fi 40 40/0.03A 4-pole
- Dimension: 2000 x 806 x 335 mm (H x W x D)
- Weight: 100 kg
Pressure pick-up
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- With cable for installation: 20 m
- Weight: 2 kg
Pressure pick-up
Suitable for
- Control ACO Multi-Control Mono/Duo
- LipuLift-P/LipuLift-PF
- Muli-Flex
Description
- 4–20 mA
- For secure switching cable lengths > 12 m
- 0–200 mbar
- Cable for installation: 40 m
- Weight: 3.4 kg
Safety barrier
Suitable for
- Pressure pick-off
- Float switch with ATEX-certificate
Description
- To separate Ex-risk and secure areas
- Incl. housing
- Weight: 0.5 kg
Short top section
Description
- Weight: 21.6 kg
Long top section
Description
- Weight: 30 kg
Guide strap
Suitable for
- Top section
- 0178.08.35
Description
- Quantity required
- 1 pce for Muli-Max Mono
- 2 pces for Muli-Max Duo
- 2 pces for LipuLift-P
- Weight: 1.6 kg
Guide strap
Suitable for
- Top section
- 0178.08.36
Description
- Quantity required
- 1 pce for Muli-Max Mono
- 2 pces for Muli-Max Duo
- Weight: 2 kg
Flushing connection
Suitable for
- Muli-Max
- Powerlift–P
- Muli-Flex
Description
- Total height: 430 mm
- Weight: 2 kg
Vacuum relief valve
Suitable for
- Muli-Max
- Powerlift–P
- Powerlift installation kit
Description
- Only possible in combination with Flushing connection
- Weight: 1.5 kg
Compression fitting 63 x 63 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extension of the pressure line pipe Ø63 mm
- Weight: 0.6 kg
Compression fitting 63 x 75 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extending the pressure line diameter from Ø63 mm to Ø75 mm
- Weight: 0.8 kg
Compression fitting 63 x 90 mm
Suitable for
- Powerlift installation kit DN 50
- Powerlift–P
- LipuLift-P
- Muli-Max
Description
- Material: PP
- Pressure level: PN16
- For extending the pressure line diameter from Ø63 mm to Ø90 mm
- Weight: 0.7 kg
