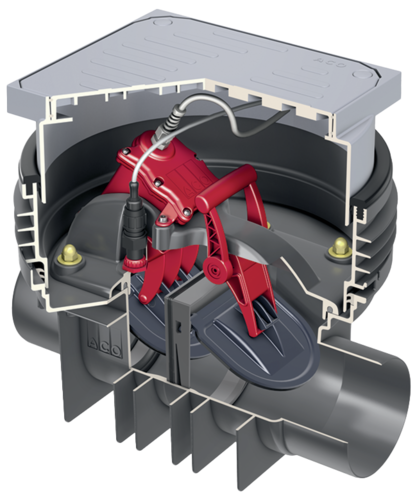

Quatrix-K – with shaft system

Product benefits

  • Only 12 mm gradient difference
  • Only 71 cm installation opening without reverse gradient
  • Optimum for renovation
  • CCTV camera accessible
  • Optionally with height-adjustable sealing flange for waterproof concrete
  • Pneumatic measurement system for fault-free operation

Product information

  • Made of plastic
  • For installation in the floor slab
  • Type 3F tested to EN 13564
  • With double backflow safety valve
    • With 1 automatic operating seal
    • With 1 manual emergency seal
  • With large cleaning and maintenance opening and test pipe
  • With ready to plug in, electrical control unit IP 54 with integrated 4-week self-monitoring
  • With visual and acoustic backflow signal
  • With emergency power supply
  • With floating contact for remote messaging
  • Motor is flood-proof IP 68 (3 m, 24 h)
  • Cable length: 5 m (extension to 30 m possible)
  • Height-adjustable and rotatable top section
  • Surface water-tight reversible plate for tiled or plastic cover
    • Load class: K 3
  • Connection pipes made with spigots in the factory
InstallationDescriptionNominal widthWeightItem

number
Remember
[kg]
For installation in floor plate
  • Type 3F, suitable for
    • Water containing faeces (black water)
    • Free of faecal matter (grey water) systems as per DIN EN 13564
  • Surface water-tight reversible plate for tiled or plastic cover
    • Load class: K 3
DN 10015.46203707
DN 12515.46204877
DN 15015.46203717
InstallationDescriptionNominal widthWeightItem

number
For installation in floor plate
  • Type 3F, suitable for
    • Water containing faeces (black water)
    • Free of faecal matter (grey water) systems as per DIN EN 13564
  • Surface water-tight reversible plate for tiled or plastic cover
    • Load class: K 3
DN 10015.4 kg620370
For installation in floor plate
  • Type 3F, suitable for
    • Water containing faeces (black water)
    • Free of faecal matter (grey water) systems as per DIN EN 13564
  • Surface water-tight reversible plate for tiled or plastic cover
    • Load class: K 3
DN 12515.4 kg620487
For installation in floor plate
  • Type 3F, suitable for
    • Water containing faeces (black water)
    • Free of faecal matter (grey water) systems as per DIN EN 13564
  • Surface water-tight reversible plate for tiled or plastic cover
    • Load class: K 3
DN 15015.4 kg620371

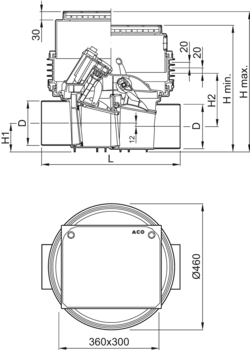

Scale drawing
Nominal widthDimensionsRecess
DLH1H2H min.H max.
[mm][mm][mm][mm][mm][mm][mm]
DN 10011046079217460512560 x 710
DN 12512546986210460512560 x 730
DN 150160504104192460512560 x 820

Signal horn

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V AC
  • Power consumption: 30mA
  • Ø62x85 mm (L/B x T)
  • Protection: IP66
  • 95 dB(A)
  • Weight: 0.3 kg
  • Rabattgruppe: 12

Flashing light

Suitable for
  • Signalling unit with voltage-free fault reporting
  • LipuSmart-P
  • Muli-Max with signalling unit
  • LipuLift-P
Description
  • 230V
  • Power consumption: 70 mA
  • Weight: 0.5 kg
  • Rabattgruppe: 12

Flashing light

Description
  • Rabattgruppe: 12

Message system with GSM module

Suitable for
  • All grease separators
  • Grease layer thickness measuring device
  • Pre-tank plants
  • Technical processing systems
  • Quatrix-K backflow preventer type 3F
  • Sinkamat-K (underfloor) duo
  • Muli lifting units
  • Pumping stations
  • Installation sets
Description
  • Parameter via app (Android & iOs)
  • Mains-independent alarm via 12V lead-gel battery
  • Optical and acoustic alarm message
  • Freely configurable inputs
    • 6 digital inputs with LED status display
    • 1 analogue
  • 1 alarm output 12 V
  • Alarm forwarding via SMS to mobile phones
  • For mounting outside the hazardous area
  • Housing: 192 x 150(with cable gland) x 100 mm (WxHxD)
  • Protective doctor: IP54
  • Operating voltage: 230 V/AC 50/60 Hz
  • Weight: 2 kg
  • Rabattgruppe: 12

Connection cable antenna GSM

Suitable for
  • GSM - Modul
Description
  • Length incl. connections: approx. 15 m
  • Cable type: RG58
  • Connections:1 x SMA plug (SMA/M) and 1 x SMA socket (SMA/F)
  • Only one extension cable may be used per GSM module
  • Usable in temperature range: -20°C to 85°C

Signalling unit

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
  • All Muli wastewater lifting plants
  • Upstream tank plant mono/duo
  • Muli-Max
  • Powerlift–P / Powerlift-P/F-H
  • Sinkamat –K/-KD
  • Sinkamat-Z
  • Sinkamat-Z (underfloor)
    • Duo
  • LipuLift-P
Description
  • Self-charging
  • With floating contact
  • Visual and acoustic
  • Without contact transmitter
  • For mounting outside the potentially explosive atmosphere
  • Dimensions: 175 x 125 x 75 mm W x H x D
  • Protection type: IP65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Ready to plug in with cable: 2 m
  • Weight: 1.4 kg
  • Rabattgruppe: 12

Connection and flood module set

Suitable for
  • Triplex-K backflow stops
    • DN 100 – DN 150
  • Quatrix-K backflow stops
  • All wastewater lifting plants
  • All separators
Description
  • To report a leak caused for example by a pipe bursting
  • For electrically conducting liquids
  • With volt free contact
  • Visible and audible alarms (approx. 80 dB)
  • Dimensions (width x height x depth): 160 x 120 x 75 mm
  • Protection level: IP 65
  • Operating voltage: 230 V/AC 50/60 Hz
  • Plug and use: 1.4 m
  • Overflow indicator with 10 m cable
  • Weight: 1.1 kg
  • Rabattgruppe: 12

Extension part

Suitable for
  • Backflow stops for installation in the floor plate
  • Sinkamat-K
  • Muli-UF (underfloor)
  • Quatrix-K
Description
  • With lip seal
  • Graduated height adjustment every 116 mm
    • For Sinkamat-K maximum 2 extension pieces may be mounted
    • For top section: 360 x 300mm
    • For Triplex-K, Quatrix-K and Muli-UF maximum 1 extension pieces may be mounted
  • Weight: 3.4 kg
  • Rabattgruppe: 7

Sealing flange

Suitable for
  • Backflow stops for installation in the floor plate
  • Sinkamat-K
  • Muli-UF (underfloor)
  • Quatrix-K
Description
  • For building into waterproof concrete
    • Maximum groundwater level: 2 m
  • Weight: 4.2 kg
  • Rabattgruppe: 7

Top section

Suitable for
  • Backflow stops for installation in the floor plate
Description
  • Weight: 2.6 kg
  • Rabattgruppe: 7

Reversible cover plate

Suitable for
  • Backflow stops for installation in the floor plate
Description

Reversible cover plate for tile or plastic cover

  • Weight: 1 kg
  • Rabattgruppe: 7

Test hopper

Suitable for
  • ACO backflow stops
Description
  • For servicing all dimensions
  • Weight: 0.1 kg
  • Rabattgruppe: 7

Battery pack replacement


Drive motor

Suitable for
  • Quatrix-K Type 3F V2.0 (before year of construction 2016)
Description
  • With 5 m supply cable
  • Replacement drive motor ACO faecal backflow machine
    • Quatrix‑K type 3F
    • DN 100/DN 125/DN 150

Drive motor

Suitable for
  • Quatrix-K Type 3F V3.0 (from year of construction 2016)
Description
  • With 5 m supply cable
  • Replacement drive motor ACO faecal backflow machine
    • Quatrix‑K type 3F
    • DN 100/DN 125/DN 150

Extension set

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
Description
  • For cable conduits DN 70
  • Angles and bends ≤ 45°
  • Pressure hose (10 m)
  • Supply cable and plug (5 m)
  • For empty cable ducts DN 70
  • Weight: 1 kg
  • Rabattgruppe: 7

Extension set

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
Description
  • For cable conduits DN 70
  • Angles and bends ≤ 45°
  • Sensor cable (m)
  • Motor cable (m)
  • Weight: 2.1 kg
  • Rabattgruppe: 7

Extension set

Suitable for
  • Faecal matter backflow automatic stop Quatrix-K type 3F
Description
  • For cable conduits DN 70
  • Angles and bends ≤ 45°
  • Sensor cable (m)
  • Motor cable (25 m)
  • Weight: 3.2 kg
  • Rabattgruppe: 7

Signal horn

Suitable for
  • Signalling unit
  • Signalling unit with GSM module
Description
  • Operating voltage: 12V DC
  • Power consumption: 30 mA
  • 62 x 62 x 85 mm (LxWxD)
  • Degree of protection: IP66
  • Noise level: 95 dB(A)
  • Weight: 0.2 kg
  • Rabattgruppe: 12
