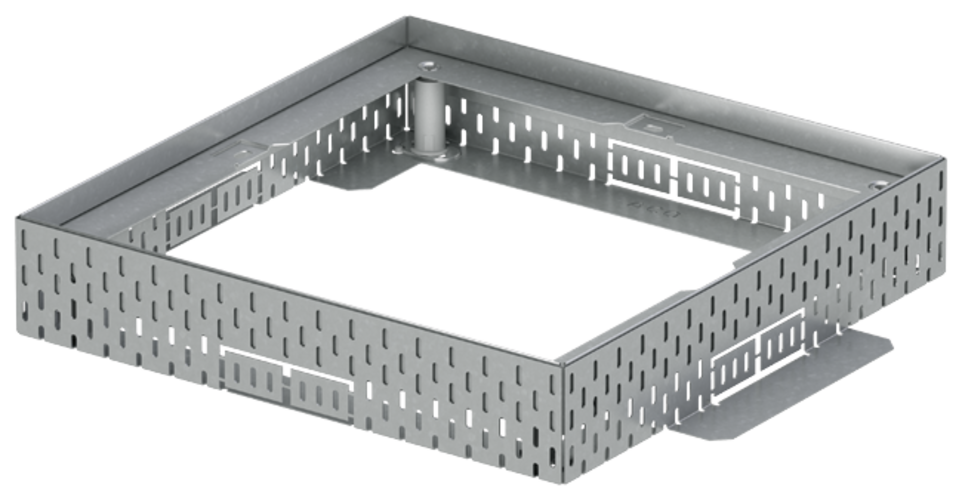

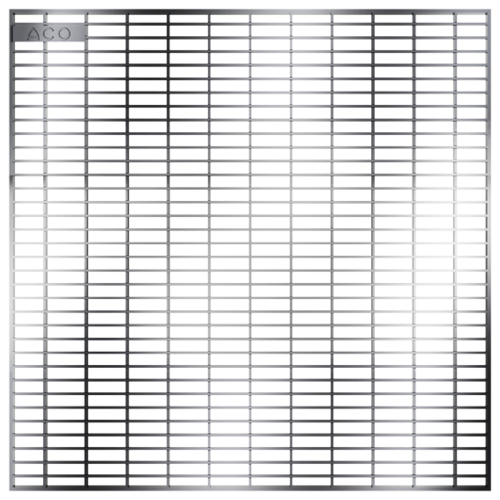

Top sections and gratings for roof gullys made of stainless steel

	Dimensions		Height adjustability	Item number	Downloads	Remember
	Length	Width	Height adjustability
	[mm]	[mm]	[mm]
	400	400	50	320019
			55 – 78	320020
			78 – 108	320021
	500	500	50	320022
			55 – 78	320023
			78 – 108	320024

	Dimensions		Height adjustability	Item number	Downloads	Remember
	Length	Width	Height adjustability
	[mm]	[mm]	[mm]
	400	400	30	320037
			60	320038
			120	320039
	500	500	30	320040
			60	320041
			120	320042

	Dimensions		Item number	Downloads	Remember
	Length	Width
	[mm]	[mm]
	400	400	38573
	500	500	38574

	Height- adjusta- bility H1min – H1max	Weight	Item number
	50 mm	1.5 kg	320019
	55 – 78 mm	2.5 kg	320020
	78 – 108 mm	3.0 kg	320021
	50 mm	1.7 kg	320022
	55 – 78 mm	4.0 kg	320023
	78 – 108 mm	4.0 kg	320024
	30 mm	0.8 kg	320037
	60 mm	1.9 kg	320038
	120 mm	3.0 kg	320039
	30 mm	1.6 kg	320040
	60 mm	2.3 kg	320041
	120 mm	2.5 kg	320042
		3.5 kg	38573
		6.2 kg	38574

ACO Variant-Flex flat roof single drains

ACO Variant-Flex flat roof single drains

	Dimensions		Height adjustability	Item number	Downloads	Remember
	Length	Width	Height adjustability
	[mm]	[mm]	[mm]
	400	400	50	320019
			55 – 78	320020
			78 – 108	320021
	500	500	50	320022
			55 – 78	320023
			78 – 108	320024

	Dimensions		Height adjustability	Item number	Downloads	Remember
	Length	Width	Height adjustability
	[mm]	[mm]	[mm]
	400	400	30	320037
			60	320038
			120	320039
	500	500	30	320040
			60	320041
			120	320042

	Dimensions		Item number	Downloads	Remember
	Length	Width
	[mm]	[mm]
	400	400	38573
	500	500	38574

	Height- adjusta- bility H1min – H1max	Weight	Item number
	50 mm	1.5 kg	320019
	55 – 78 mm	2.5 kg	320020
	78 – 108 mm	3.0 kg	320021
	50 mm	1.7 kg	320022
	55 – 78 mm	4.0 kg	320023
	78 – 108 mm	4.0 kg	320024
	30 mm	0.8 kg	320037
	60 mm	1.9 kg	320038
	120 mm	3.0 kg	320039
	30 mm	1.6 kg	320040
	60 mm	2.3 kg	320041
	120 mm	2.5 kg	320042
		3.5 kg	38573
		6.2 kg	38574
