ACO Variant-Flex flat roof single drains

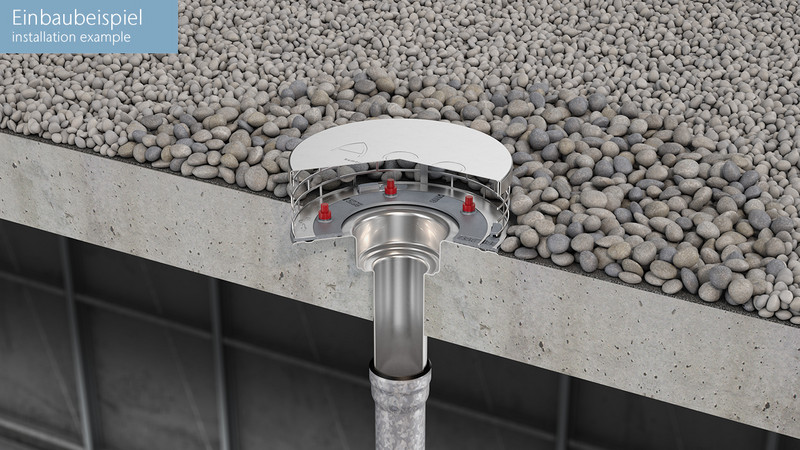

ACO Variant-flex Flat Roof Single Drains 589898

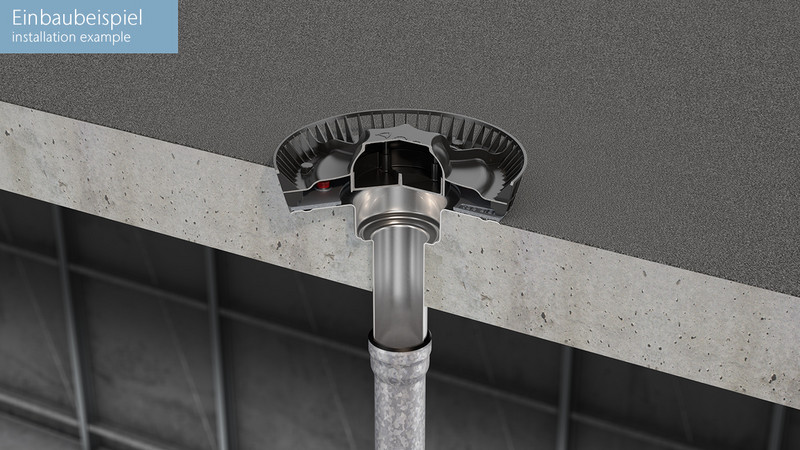

ACO Variant-flex Flat Roof Single Drains 589900

		Nominal width	Recess	Weight	Item number		Downloads	Remember
		Nominal width	[mm]	[kg]	Item number		Downloads	Remember
		DN 50	260 x 190	3.6	1511.90.00	13
		DN 70	260 x 190	3.7	1531.90.00	13
		DN 100	260 x 190	4.1	1551.90.00	13
		DN 125	290 x 210	5.1	1571.90.00	13

		Nominal width	Recess	Weight	Item number		Downloads	Remember
		Nominal width	[mm]	[kg]	Item number		Downloads	Remember
		DN 50	360 x 190	2.2	1511.50.00	13
		DN 70	360 x 190	2.4	1531.50.00	13
		DN 100	360 x 190	2.5	1551.50.00	13

Freispiegelentwässerung - Anstauhöhe: 35 mm			Edelstahlkiesfang
Nennweite	Stutzenneigung	Ausführung	Hauptentwässerung	Abflussleistung	Notentwässerung	Abflussleistung
DN			l/s	PDF	l/s	PDF
DN 50	90°	1-teilig	6,2 l/s		6,2 l/s
	90°	2-teilig	6,3 l/s		6,3 l/s
	0°	1-teilig	6,6 l/s		6,6 l/s
	0°	2-teilig	6,5 l/s		6,5 l/s
DN 70	90°	1-teilig	6,7 l/s		6,7 l/s
	90°	2-teilig	6,8 l/s		6,8 l/s
	0°	1-teilig	7,1 l/s		7,1 l/s
	0°	2-teilig	7,1 l/s		7,1 l/s
DN 100	90°	1-teilig	7,7 l/s		7,7 l/s
	90°	2-teilig	7,5 l/s		7,5 l/s
	0°	1-teilig	7,0 l/s		7,0 l/s
	0°	2-teilig	7,1 l/s		7,1 l/s
DN 125	90°	1-teilig	11,0 l/s		10,8 l/s
DN 125	90°	2-teilig	11,0 l/s		10,8 l/s
Unterdruckentwässerung - Anstauhöhe: 55 mm			Luftschleuse
Nennweite	Stutzenneigung	Ausführung	Hauptentwässerung	Abflusswerte	Notentwässerung	Abflusswerte
DN			l/s	PDF	l/s	PDF
DN 50	90°	1-teilig	8,8 l/s		8,8 l/s
	0°	1-teilig	9,0 l/s		9,0 l/s
	90°	2-teilig	8,8 l/s		8,8 l/s
	0°	2-teilig	9,1 l/s		9,0 l/s
DN 70	90°	1-teilig	19,1 l/s		17,8 l/s
	0°	1-teilig	18,9 l/s		17,5 l/s
	90°	2-teilig	19,2 l/s		17,8 l/s
	0°	2-teilig	19,2 l/s		17,7 l/s
DN 100	90°	1-teilig	30,8 l/s		24,2 l/s
	0°	1-teilig	24,2 l/s		22,2 l/s
	90°	2-teilig	31,5 l/s		23,4 l/s
	0°	2-teilig	24,8 l/s		21,2 l/s

Top sections for gully bodies Variant-Flex

Top sections for gully bodies Variant-Flex

Roofing membranes for Spin/Jet flat roof gullys made of stainless steel

Top sections and gratings for roof gullys

Top sections and gratings for roof gullys

Top sections and gratings for roof gullys made of stainless steel

Top sections and gratings for roof gullys made of stainless steel

Self-regulating heating

Suitable for

ACO flat roof gully Variant-Flex
- DN50 - DN125

Description

For ice-free flat roof gullies
- Variant-Flex DN50 - DN125
Self-regulating heating element
Can be mounted variably on the connection port
Nominal power: 26 W/m
Connection line length: 1 m
Rabattgruppe: 13

Item no.
3021945

Insulating body

Description

Weight: 0.8 kg
Rabattgruppe: 13

Item no.
1510.94.00

Insulating body

Description

Weight: 1.2 kg
Rabattgruppe: 13

Item no.
1530.94.00

Insulating body

Description

Weight: 1 kg
Rabattgruppe: 13

Item no.
1550.94.00

Insulating body

Description

Für Ablauftopf mit Rohrstutzen
DN 125, Länge: 330 mm
Aus Steinwolle
Alukaschiert
Nicht brennbar
Weight: 1.1 kg
Rabattgruppe: 13

Item no.
1570.94.00

Insulating body

Description

Weight: 0.2 kg
Rabattgruppe: 13

Item no.
1510.93.00

Insulating body

Description

Weight: 0.1 kg
Rabattgruppe: 13

Item no.
1510.95.00

Insulating body

Description

Weight: 0.1 kg
Rabattgruppe: 13

Item no.
1530.93.00

Insulating body

Description

Weight: 0.1 kg
Rabattgruppe: 13

Item no.
1530.95.00

Insulating body

Description

Weight: 0.1 kg
Rabattgruppe: 13

Item no.
1550.93.00

Insulating body

Description

Weight: 0.1 kg
Rabattgruppe: 13

Item no.
1550.95.00

Insulating body

Description

Weight: 0.2 kg
Rabattgruppe: 13

Item no.
1570.93.00

Insulating body

Description

Weight: 0.2 kg
Rabattgruppe: 13

Item no.
1570.95.00

Insulating body

Description

Weight: 0.2 kg
Rabattgruppe: 13

Item no.
1590.53.00

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
EPDM
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5169.20.26

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
PVC-weich
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5169.30.26

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
NBR/SBR
Weight: 0.5 kg
Rabattgruppe: 1

Item no.
5169.40.26

Holder sheet for trapezoidal panel roof

Description

Weight: 3.9 kg
Rabattgruppe: 13

Item no.
1590.02.00

Holder sheet for trapezoidal panel roof

Description

Weight: 3.8 kg
Rabattgruppe: 13

Item no.
1570.02.00

Control shaft

Suitable for

Jet/Spin series stainless steel flat roof gullies

Description

Stainless steel, material grade 304
Load class: K 3
Weight: 5.3 kg
Rabattgruppe: 13

Item no.
0153.73.05

Formwork aid

Description

Rabattgruppe: 13

Item no.
1500.06.00

Gravel trap

Description

Rabattgruppe: 13

Item no.
1500.00.10

Gravel trap

Description

Rabattgruppe: 13

Item no.
1590.00.30

Retention top section

Description

Rabattgruppe: 13

Item no.
1590.00.05

Retention top section

Description

Rabattgruppe: 13

Item no.
1590.00.07

Retention top section

Description

Rabattgruppe: 13

Item no.
1590.00.08

Retention top section

Description

Rabattgruppe: 13

Item no.
1590.00.09

Pilot tube for emergency overflow

Description

Weight: 0.6 kg
Rabattgruppe: 13

Item no.
1590.00.01

Pilot tube for emergency overflow

Description

Weight: 0.8 kg
Rabattgruppe: 13

Item no.
1570.00.02

Pilot tube for emergency overflow

Description

Rabattgruppe: 13

Item no.
1590.00.03

Airlock made of plastic

Description

Rabattgruppe: 13

Item no.
1590.00.50
