ACO Variant-Spin complete flat roof drains – two-piece for gravity drainage

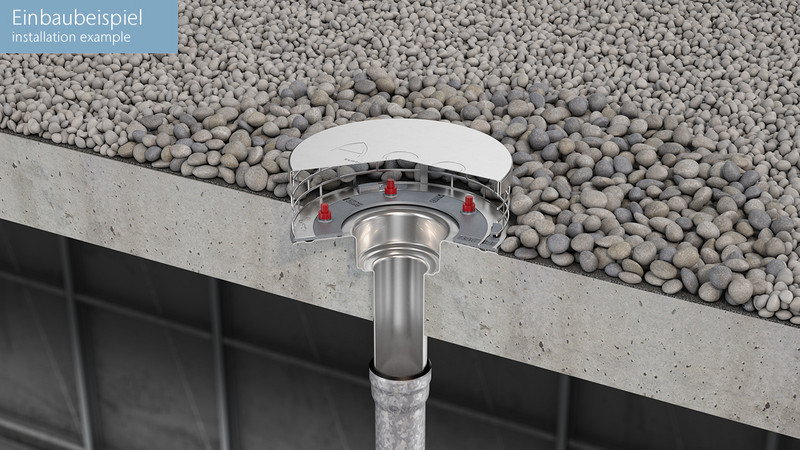

ACO Variant-spin Complete Flat Roof Drains Two-piece For Gravity Drainage 589898

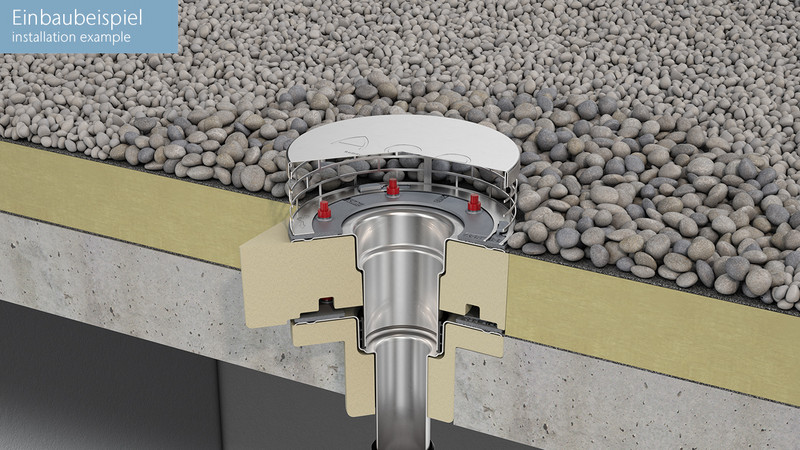

ACO Variant-spin Complete Flat Roof Drains Two-piece For Gravity Drainage 589902

		Gravel trap basket	Insulation	Nominal width	Recess	Weight	Item number		Downloads	Remember
		Gravel trap basket	Insulation	Nominal width	[mm]	[kg]	Item number		Downloads	Remember
		made of stainless steel	Uninsulated	DN 50	260 x 190	8.6	1619.20.10	13
				DN 70	260 x 190	8.8	1639.20.10	13
				DN 100	260 x 190	9.1	1659.20.10	13
		made of stainless steel	Uninsulated	DN 125	290 x 210	11.1	1679.20.10	13
		made of stainless steel	PUR insulating body	DN 50	260 x 190	8.8	1619.23.10	13
				DN 70	260 x 190	9.0	1639.23.10	13
				DN 100	260 x 190	9.3	1659.23.10	13
		made of stainless steel	PUR insulating body	DN 125	290 x 210	11.3	1679.23.10	13
		made of stainless steel	PUR insulating body with heating	DN 50	260 x 190	9.1	1619.23.30	13
				DN 70	260 x 190	9.3	1639.23.30	13
				DN 100	260 x 190	9.6	1659.23.30	13
		made of stainless steel	PUR insulating body with heating	DN 125	290 x 210	11.9	1679.23.30	13

		Gravel trap basket	Insulation	Nominal width	Recess	Weight	Item number		Downloads	Remember
		Gravel trap basket	Insulation	Nominal width	[mm]	[kg]	Item number		Downloads	Remember
		made of stainless steel	Uninsulated	DN 50	360 x 190	7.2	1615.20.10	13
				DN 70	360 x 190	7.4	1635.20.10	13
				DN 100	360 x 190	7.5	1655.20.10	13
		made of stainless steel	PUR insulating body	DN 50	360 x 190	7.4	1615.23.10	13
				DN 70	360 x 190	7.6	1635.23.10	13
				DN 100	360 x 190	7.7	1655.23.10	13
		made of stainless steel	PUR insulating body with heating	DN 50	360 x 190	7.7	1615.23.30	13
				DN 70	360 x 190	7.9	1635.23.30	13
				DN 100	360 x 190	8.0	1655.23.30	13

Abflussleistung Variant Flex - Spin Komplett

Freispiegelentwässerung - Anstauhöhe: 35 mm
Nennweite	Stutzenneigung	Ausführung	Hauptentwässerung	Abflussleistung	Notentwässerung	Abflussleistung
DN			l/s	PDF	l/s	PDF
DN 50	90°	2-teilig	6,3 l/s		6,3 l/s
DN 50	0°	2-teilig	6,5 l/s		6,5 l/s
DN 70	90°	2-teilig	6,8 l/s		6,8 l/s
DN 70	0°	2-teilig	7,1 l/s		7,1 l/s
DN 100	90°	2-teilig	7,5 l/s		7,5 l/s
DN 100	0°	2-teilig	7,1 l/s		7,1 l/s
DN 125	90°	2-teilig	10,9 l/s		10,9 l/s
DN 125	0°	2-teilig	–		–

Roofing membranes for Spin/Jet flat roof gullys made of stainless steel

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
EPDM
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5169.20.26

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
PVC-weich
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5169.30.26

Flange seal set

Suitable for

Flat roof gullies Passavant Spin made of cast iron
- DN 70/DN 100
Flat roof gullies Jet made of cast iron
- DN 50

Description

Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
Thickness: 4 mm
NBR/SBR
Weight: 0.5 kg
Rabattgruppe: 1

Item no.
5169.40.26

Insulating body

Description

Weight: 0.7 kg
Rabattgruppe: 13

Item no.
1590.91.00

Insulating body

Description

Weight: 0.6 kg
Rabattgruppe: 13

Item no.
1570.91.00

Pilot tube for emergency overflow

Description

Weight: 0.6 kg
Rabattgruppe: 13

Item no.
1590.00.01

Pilot tube for emergency overflow

Description

Weight: 0.8 kg
Rabattgruppe: 13

Item no.
1570.00.02

Retention top section

Description

Rabattgruppe: 13

Item no.
1590.00.05

Retention top section

Description

Rabattgruppe: 13

Item no.
1590.00.07

Retention top section

Description

Rabattgruppe: 13

Item no.
1590.00.08

Retention top section

Description

Rabattgruppe: 13

Item no.
1590.00.09

Formwork aid

Description

Rabattgruppe: 13

Item no.
1500.06.00

Holder sheet for trapezoidal panel roof

Description

Weight: 3.9 kg
Rabattgruppe: 13

Item no.
1590.02.00

Holder sheet for trapezoidal panel roof

Description

Weight: 3.8 kg
Rabattgruppe: 13

Item no.
1570.02.00

Insulating body

Description

Weight: 0.8 kg
Rabattgruppe: 13

Item no.
1510.94.00

Insulating body

Description

Weight: 1.2 kg
Rabattgruppe: 13

Item no.
1530.94.00

Insulating body

Description

Weight: 1 kg
Rabattgruppe: 13

Item no.
1550.94.00

Insulating body

Description

Für Ablauftopf mit Rohrstutzen
DN 125, Länge: 330 mm
Aus Steinwolle
Alukaschiert
Nicht brennbar
Weight: 1.1 kg
Rabattgruppe: 13

Item no.
1570.94.00

Self-regulating heating

Suitable for

ACO flat roof gully Variant-Flex
- DN50 - DN125

Description

For ice-free flat roof gullies
- Variant-Flex DN50 - DN125
Self-regulating heating element
Can be mounted variably on the connection port
Nominal power: 26 W/m
Connection line length: 1 m
Rabattgruppe: 13

Item no.
3021945
