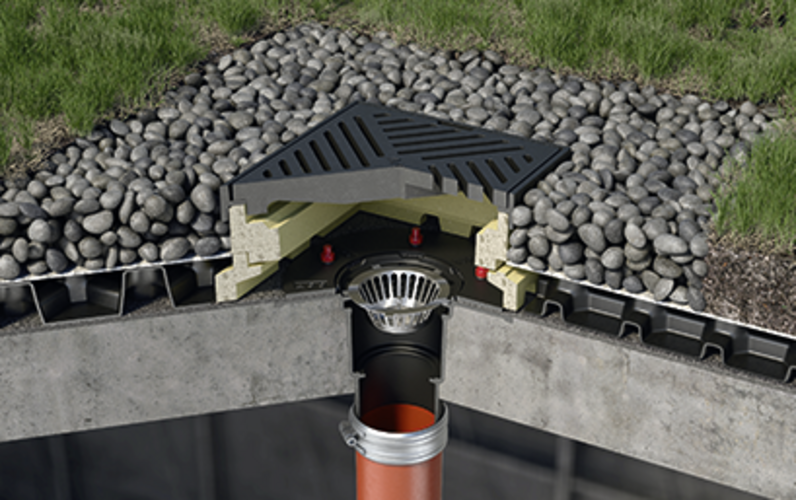

Gully body Passavant Spin, DN 125 – DN 150 | gravity drainage
Product benefits
- No additional fire load
- Permanent resistance
- Maintenance-friendly
- 100% UV resistant
- Flexibility in sealing
- PVC/PE/PP/Bitumen
- Variable installation
- On-site height adjustment by means of cast iron adjustment ring
- Can be utilised as emergency drainage
- Few components, compact design
Product information
- Made of cast iron
- Building material class A1, non-flammable
- With paint coat
- High pressure resistance > 700 N/mm²
- Tested in accordance with EN 1253-2
- With flat compression seal flange
- For recess necessary for thread slots
- With seepage openings

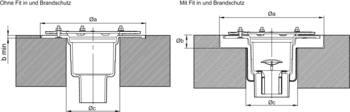

Nominal width | øa | øb | øc | Description | Item number |
---|---|---|---|---|---|
[mm] | [mm] | [mm] | |||
DN 125 | 370 | 10 | 210 | For gully bodies without insulation bodies | 7035.10.12 |
DN 125 | 380 | 45 | 220 | For gully bodies with insulation bodies | 7035.10.12 |
DN 150 | 370 | 10 | 210 | For gully bodies without insulation bodies | 7036.10.12 |
DN 150 | 380 | 45 | 220 | For gully bodies with insulation bodies | 7036.10.12 |


Upper part of gully body Passavant Spin

ACO Covecta cover plates

Top sections and gratings for roof gullies

Top sections and gratings for roof gullys

Top sections and gratings for roof gullys made of stainless steel
Flat roof heating
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- Turboflow emergency gully made of stainless steel
- Flat roof gullies Passavant Spin made of cast iron
- DN 125 – DN 150
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 40 W
- Weight: 0.4 kg
- Rabattgruppe: 1
Flat roof heating with thermostat
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- Turboflow emergency gully made of stainless steel
- Flat roof gullies Passavant Spin made of cast iron
- DN 125 – DN 150
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 40 W
- Weight: 0.4 kg
- Rabattgruppe: 1
Insulating body for gully
Insulating body for gully
Removable dirt trap
Adjustable height
Adjustable height
Levelling height
Gravel trap
Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 125/DN 150
- Flat roof gullies Spin made of cast iron
- DN 100 – DN 150
- Flat roof gullies Jet made of cast iron
- DN 80
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- EPDM
- Weight: 0.6 kg
- Rabattgruppe: 1
Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 125/DN 150
- Flat roof gullies Spin made of cast iron
- DN 100 – DN 150
- Flat roof gullies Jet made of cast iron
- DN 80
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- PVC-weich
- Weight: 0.4 kg
- Rabattgruppe: 1
Flange seal set
Suitable for
- Flat roof gullies Passavant Spin made of cast iron
- DN 125/DN 150
- Flat roof gullies Spin made of cast iron
- DN 100 – DN 150
- Flat roof gullies Jet made of cast iron
- DN 80
Description
- Consisting of:
- 1 flange seal for loose flange
- 1 flange seal for fixed flange
- Thickness: 4 mm
- NBR/SBR
- Weight: 0.5 kg
- Rabattgruppe: 1
