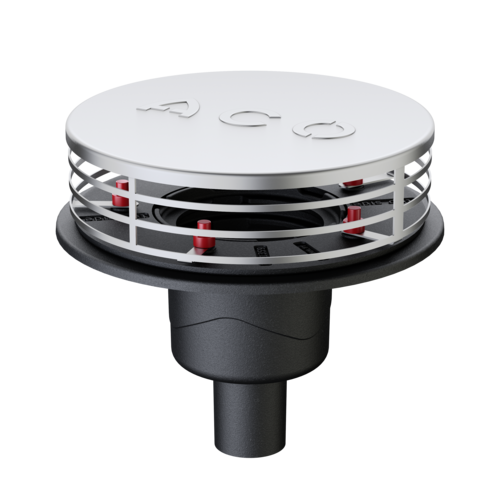

Gully body Passavant Jet, DN 50 | gravity drainage
Product information
- Gully bodies DN 50
- Painted cast iron (transport protection)
- Building material class A1
- Tested to DIN EN 1253
- With clamping flange
- With seepage openings
- With functional element

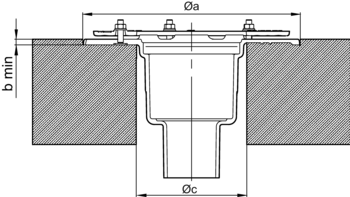

Nominal width | øa | øb | øc | Description | Item number |
---|---|---|---|---|---|
[mm] | [mm] | [mm] | |||
DN 50 | 330 | 10 | 160 | For gully bodies without insulation bodies | 7037.10.12 |
DN 50 | 330 | 40 | 160 | For gully bodies with insulation bodies | 7037.10.12 |


Upper part of gully body Passavant Spin

ACO Covecta cover plates

Top sections and gratings for roof gullies
Flat roof heating
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
- Rabattgruppe: 1
Flat roof heating with thermostat
Suitable for
- Flat roof gullies Jet/Spin series made of stainless steel
- DN 40 – DN 125
- Parapet wall gully Spin/Jet made of stainless steel
- 45° and 90°
- Turboflow emergency gully made of stainless steel
- DN 50 – DN 70
- Flat roof gullies Passavant Spin made of cast iron
- DN 70 – DN 100
Description
- Mains connection: 220 – 240 V
- Degree of protection: IP 67
- Connection line
- H05RN-F2x1,0
- Length: 1 m
- Height: 95 mm
- Nominal power: 25 W
- Weight: 0.3 kg
- Rabattgruppe: 1
Insulationbody upper part
Adjustable height
Adjustable height
Gravel trap
Levelling height
Pilot tube
Flange seal set
Flange seal set
Flange seal set
Lip seal ring
Suitable for
- Jet flat roof gullies
- DN 50
- Upper part for Spin flat roof gullies
- DN 70
- 1-/2-piece flat roof/terrace Spin gullies DN 70 for ventilation pipe to be added during installation
- SML-pipe DN 100 made from cast iron for grey water downpipes over roof, length as per DIN EN 12056 and DIN 1986‑100
Description
- Diameter: 136 mm
- Weight: 0.1 kg
- Rabattgruppe: 1
