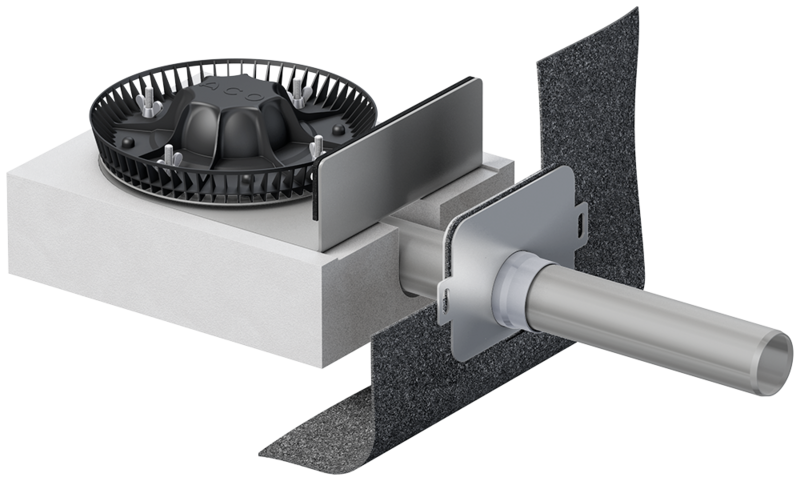

Complete attic drains Jet (45°/90°) – vacuum drainage

Flange: 45 ° upstand for Bitumen sealing membrane

Nominal widthSocket inclinationVersionInsulationItem

number		Remember
ImageDN 501,5°With attic leadthrough and function partPUR insulating body1156.31.0113
DN 701,5°With attic leadthrough and function partPUR insulating body1176.31.0113

Flange: 90° upstand for plastic sealing membrane

Nominal widthSocket inclinationVersionInsulationItem

number		Remember
DN 501,5°With attic leadthrough and function partPUR insulating body1156.31.0213
DN 701,5°With attic leadthrough and function partPUR insulating body1176.31.0213
Nominal widthSocket inclinationVersionFlangeInsulationItem

number
ImageDN 501,5°With attic leadthrough and function part45 ° upstand for Bitumen sealing membranePUR insulating body1156.31.01
ImageDN 701,5°With attic leadthrough and function part45 ° upstand for Bitumen sealing membranePUR insulating body1176.31.01
DN 501,5°With attic leadthrough and function part90° upstand for plastic sealing membranePUR insulating body1156.31.02
DN 701,5°With attic leadthrough and function part90° upstand for plastic sealing membranePUR insulating body1176.31.02
Art. Nr.:NennweiteAblaufleistung Unterdruckentwässerung
Mit Funktionsteil(Stauhöhe 55 mm)
l/s
ACO Attikakomplettablauf Jet 45° für Bitumendichtungsbahnen
1156.31.01DN 509,0
1176.31.01DN 7018,0
ACO Attikakomplettablauf Jet 90° für Kunststoffdichtungsbahnen
1156.31.02DN 509,0
1176.31.02DN 7018,0

Self-regulating heating

Suitable for
  • ACO flat roof gully Variant-Flex
    • DN50 - DN125
Description
  • For ice-free flat roof gullies
    • Variant-Flex DN50 - DN125
  • Self-regulating heating element
  • Can be mounted variably on the connection port
  • Nominal power: 26 W/m
  • Connection line length: 1 m
  • Rabattgruppe: 13
Item no.
3021945

Gravel trap cover

Suitable for
  • Spin Series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • 45° and 90°
Description
  • Stainless steel, material grade 304
  • Height: 75 mm
  • Weight: 1 kg
  • Rabattgruppe: 13
Item no.
0174.46.63

Gravel trap cover

Suitable for
  • Spin Series stainless steel flat roof gullies
  • Attika Spin/Jet roof gullies
    • 45° and 90°
Description
  • Stainless steel, material grade 304
  • Height: 225 mm
  • Weight: 1.6 kg
  • Rabattgruppe: 13
Item no.
0174.46.64

Gravel trap

Suitable for
  • Flat roof gully Spin made of stainless steel
  • Parapet wall gully Spin made of stainless steel
    • 45° and 90°
Description
  • Plastic
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.87.36

0174.93.82: Funktionsteil

Suitable for
  • Parapet wall gully Jet made of stainless steel
    • 45° and 90°
    • DN 50 – DN 70
Description
  • Rabattgruppe: 13
Item no.
0174.93.82

Damming ring for emergency overflow

Suitable for
  • Parapet wall gully Spin made of stainless steel
    • 45° and 90°
Description
  • Weight: 0.7 kg
  • Rabattgruppe: 13
Item no.
0174.95.12

Damming ring for emergency overflow

Suitable for
  • Parapet wall gully Jet made of stainless steel
    • 45° and 90°
    • DN 50 – DN 70
Description
  • Material grade 304
  • Height: 55 mm
  • Weight: 1.2 kg
  • Rabattgruppe: 13
Item no.
0174.93.64

Insulating body

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
Description
  • Rabattgruppe: 13
Item no.
0174.93.83

Attika duct

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
    • DN 50
Description
  • Material grade 304
  • With factory-made clamped bitumen connection sleeve
  • Weight: 3 kg
  • Rabattgruppe: 13
Item no.
0174.93.68

Attika duct

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
    • DN 70
Description
  • Material grade 304
  • With factory-made clamped bitumen connection sleeve
  • Weight: 3 kg
  • Rabattgruppe: 13
Item no.
0174.93.69

Attika duct

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
    • DN 100
Description
  • Material grade 304
  • With factory-made clamped bitumen connection sleeve
  • Weight: 3 kg
  • Rabattgruppe: 13
Item no.
0174.93.67

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • EPDM
  • Weight: 0.2 kg
  • Rabattgruppe: 13
Item no.
0174.42.87

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • PVC-weich
  • Weight: 0.3 kg
  • Rabattgruppe: 13
Item no.
0174.42.92

Flange seal

Suitable for
  • Jet/Spin series stainless steel flat roof gullies
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
  • Multiflex flat roof ducts
    • DN 70/DN 100
Description
  • Thickness: 4 mm
  • NBR/SBR
  • Weight: 0.3 kg
  • Rabattgruppe: 13
Item no.
0174.42.97

Flange seal

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
Description
  • EPDM
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.93.78

Flange seal

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
Description
  • PVC-weich
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.93.79

Flange seal

Suitable for
  • Parapet wall gully Spin/Jet made of stainless steel
    • 45° and 90°
Description
  • NBR/SBR
  • Weight: 0.1 kg
  • Rabattgruppe: 13
Item no.
0174.93.80

0174.97.37: Attikadurchführung DN 50

Description
  • DN 50
  • Rabattgruppe: 13
Item no.
0174.97.37

0174.97.38: Attikadurchführung DN 70

Description
  • Rabattgruppe: 13
Item no.
0174.97.38

0174.97.39: Attikadurchführung DN 100

Description
  • DN 100
  • Rabattgruppe: 13
Item no.
0174.97.39
