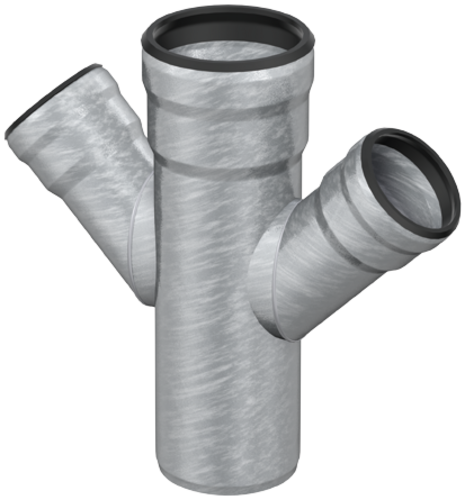

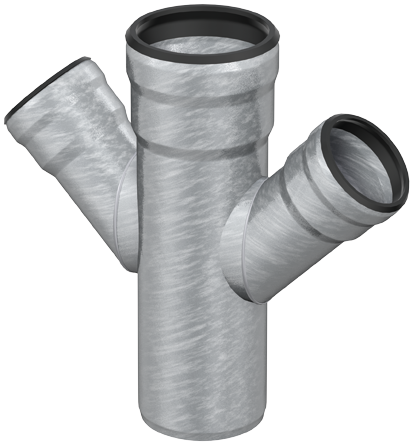

Gm-X reduction-double branchs

Product benefits

  • Material: Galvanised steel
    • Building material class: A1
    • Non-combustible
    • No introduction of additional fire load

Product information

  • With 1 A push sockets
  • Not inflammable, building material class A1
  • Made from galvanised steel
  • With additional internal coating
  • According to DIN EN 1123

Infobox

Note: Please order sealing elements separately

Note: Special designs for branches on request

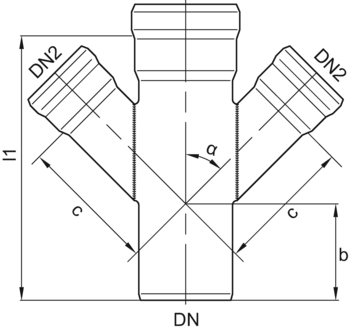

Nominal widthDimensionsWeightItem

number
Remember
DNDN2bcl1
[mm][mm][mm][kg]
DN 70DN 50751061751.18E520457558
DN 100DN 70901362302.47E520451778
DN 801101472562.9E520451888
DN 125DN 1001051762904.38E520453258
DN 150DN 100951952905.12E520453508
DN 1251102303405.9E520454008
DN 70DN 50100611501.0E520877558
DN 100DN 70125802001.89E520871778
DN 125DN 1001551052553.67E520873258
DN 150DN 1001551192554.3E520873508
Nominal widthDimensionsWeightItem

number
DN1DN2bcl1
DN 70DN 5075 mm106 mm175 mm1.18 kgE52045755
DN 100DN 7090 mm136 mm230 mm2.47 kgE52045177
DN 100DN 80110 mm147 mm256 mm2.9 kgE52045188
DN 125DN 100105 mm176 mm290 mm4.38 kgE52045325
DN 150DN 10095 mm195 mm290 mm5.12 kgE52045350
DN 150DN 125110 mm230 mm340 mm5.9 kgE52045400
DN 70DN 50100 mm61 mm150 mm1.0 kgE52087755
DN 100DN 70125 mm80 mm200 mm1.89 kgE52087177
DN 125DN 100155 mm105 mm255 mm3.67 kgE52087325
DN 150DN 100155 mm119 mm255 mm4.3 kgE52087350
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipes0174.14.670174.14.680174.14.690174.14.700174.14.710174.14.730174.14.740174.14.75
For the transition to pipe 32 mm0174.14.830174.14.84
For the transition to pipe 38 mm and plastic siphon 40 mm0174.14.850174.14.86
For the transition to pipe 48 mm and plastic siphon 50 mm0174.14.87
For the transition of the KA sleeve DN 100 to GM-X pipe DN 1000174.14.80
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 800174.14.82
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm0174.14.72
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mm0174.14.81
Article No.Article No.Article No.Article No.Article No.Article No.Article No.Article No.
DN 40DN 50DN 70DN 80DN 100DN 125DN 150DN 200
For GM-X pipesE80010040 E80010050E80010070 E80010080E80010100 E80010125E80010150 E80010200
For the transition to pipe 32 mmE80100040 E80100050
For the transition to pipe 38 mm and plastic siphon 40 mmE80110040 E80110050
For the transition to pipe 48 mm and plastic siphon 50 mm E80130050
For the transition of the KA sleeve DN 100 to GM-X pipe DN 100 E80040100
For the transition of the GM-X sleeve DN 80 to KA-pipe DN 80E80060080
For the transition of the special GM-X sleeve DN 100 to KA-pipe 110 mm E80010110
For the transition of the GM-X sleeve DN 125 to KA-pipe 125 mmE80055125

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 32
Description
  • Prevents axial shifting.
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Prevents axial shifting.
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Prevents axial shifting.
  • Weight: 0.6 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Prevents axial shifting.
  • Weight: 0.5 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Prevents axial shifting.
  • Weight: 0.6 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Prevents axial shifting.
  • Weight: 1 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Prevents axial shifting.
  • Weight: 1.3 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 32
Description
  • With release catch for connector pipe/branch
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 40
Description
  • With release catch for connector pipe/branch
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 50
Description
  • With release catch for connector pipe/branch
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 70
Description
  • With release catch for connector pipe/branch
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 80
Description
  • With release catch for connector pipe/branch
  • Weight: 0.5 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 100
Description
  • With release catch for connector pipe/branch
  • Weight: 0.9 kg
  • Rabattgruppe: 8

Safety clamp

Suitable for
  • GM-X drainpipes
  • DN 125
Description
  • With release catch for connector pipe/branch
  • Weight: 1.2 kg
  • Rabattgruppe: 8

Safety bar

Suitable for
  • GM-X drainpipes

DN 150

Description
  • Weight: 1.8 kg
  • Rabattgruppe: 8

Safety bar

Suitable for
  • GM-X drainpipes

DN 200

Description
  • Weight: 2.5 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 40
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 50
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 70
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 80
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 100
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 125
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • GM-X drainpipe
  • GM-X Filling and ventilation lines for heating oil tanks
  • DN 150
Description
  • Striker pin length: 120 mm
  • No soundproofing insert
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 40

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 50

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 70

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 80

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 100

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 125

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 150

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.3 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 200

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • No soundproofing insert
  • Weight: 0.4 kg
  • Rabattgruppe: 8

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 40
  • D = 100 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 50
  • D = 130 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 70
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 80
  • D = 150 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 100
  • D = 180 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 125
  • D = 220 mm

Fire protection moulding

Suitable for
  • Gm-X drainpipe and compound piping
Description
  • Fire resistance class: R 30 – R 90 for pipe separation
  • Length: 250 mm
  • DN 150
  • D = 225 mm

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 40

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 50

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.1 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 70

Thread: M 8

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 80

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 100

Thread: M 10

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.2 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 125

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.7 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 150

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.5 kg
  • Rabattgruppe: 8

Pipe clamp

Suitable for
  • Gm-X drainpipe

DN 200

Thread: M 12

Description
  • For threaded pin or hanger bolt
  • With soundproofing insert
  • Weight: 0.7 kg
  • Rabattgruppe: 8

GM-X lubricant

Suitable for
  • GM-X drainpipes
  • GM-X compound piping
Description
  • In can
  • Contents: 1,000 g
  • To be used as per laying instructions 0154.49.79
  • Weight: 1.1 kg
  • Rabattgruppe: 8
