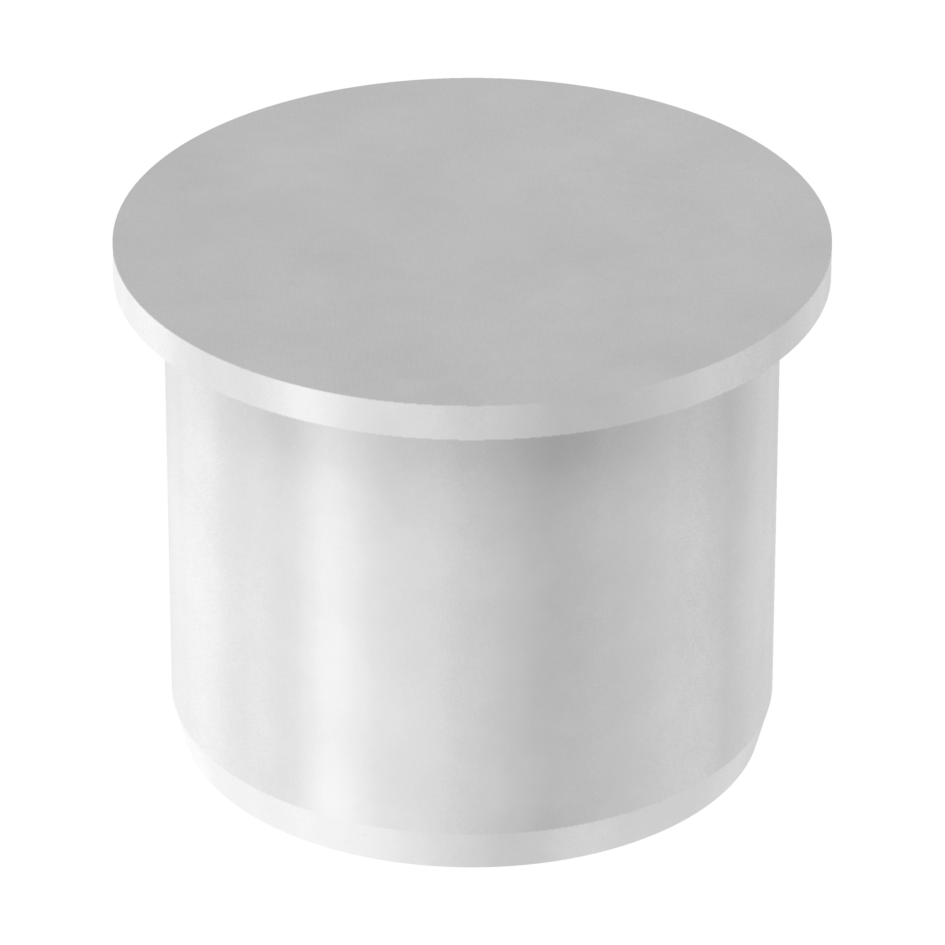

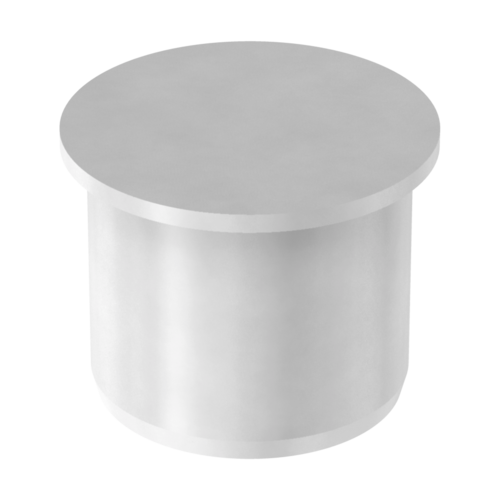

Socket plug

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation
Nominal pipe sizeDimensionsMaterialWeightItem

number
Remember

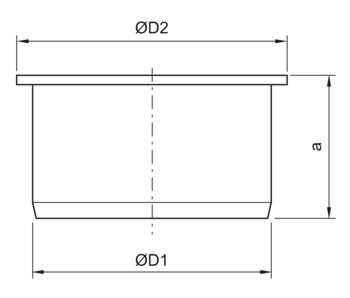

D1D2a
[mm][mm][mm][kg]
DN 404050501.44040.10417405
DN 505058451.44040.1098888
DN 757585451.44040.3098889
DN 110110120451.44040.5098890
DN 125125135501.44040.60419782
DN 160160170501.44040.6098891
DN 200200210501.44040.7098994
DN 250250260831.44041.00417131
DN 315315325731.44042.20417215
Nominal sizeDimensionsMaterialWeightItem

number
D1D2a
DN 4040 mm50 mm50 mm1.44040.10 kg417405
DN 5050 mm58 mm45 mm1.44040.10 kg98888
DN 7575 mm85 mm45 mm1.44040.30 kg98889
DN 110110 mm120 mm45 mm1.44040.50 kg98890
DN 125125 mm135 mm50 mm1.44040.60 kg419782
DN 160160 mm170 mm50 mm1.44040.60 kg98891
DN 200200 mm210 mm50 mm1.44040.70 kg98994
DN 250250 mm260 mm83 mm1.44041.00 kg417131
DN 315315 mm325 mm73 mm1.44042.20 kg417215
