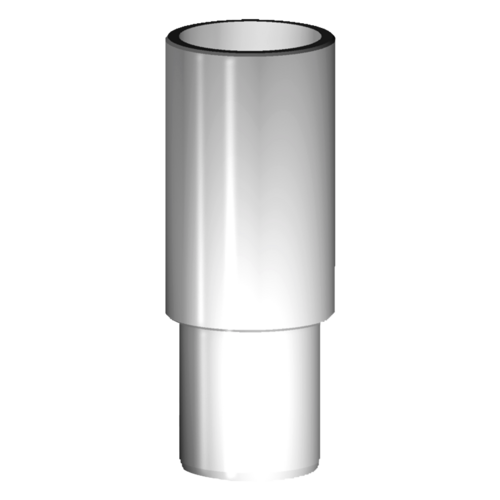

Weld on piece with spigot form E2

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
Resistant to thermal and dynamic shocks
Fast, reliable and cost-effective installation
Sagging-proof
Non-combustible
Rodent-proof

Product information

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

Order information

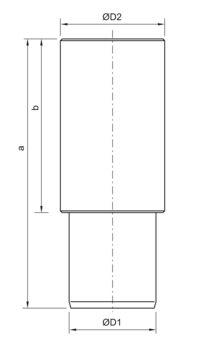

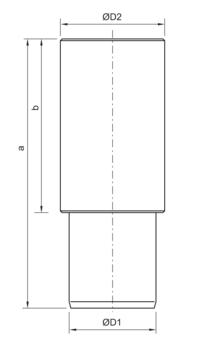

Dimensions				Material	Seal	Weight	Item number	Downloads	Remember
D1	D2	a	b			Weight
[mm]	[mm]	[mm]	[mm]			[kg]

50	60.3	155	100	1.4404	EPDM	0.82	419963

75	88.9	160	100	1.4404	EPDM	1.67	419965

110	125	155	100	1.4404	EPDM	1.60	419967

	Dimensions				Seal	Material	Weight	Item number
	D1	D2	a	b	Seal	Material	Weight	Item number

	50 mm	60.3 mm	155 mm	100 mm	EPDM	1.4404	0.82 kg	419963

	75 mm	88.9 mm	160 mm	100 mm	EPDM	1.4404	1.67 kg	419965

	110 mm	125 mm	155 mm	100 mm	EPDM	1.4404	1.60 kg	419967
