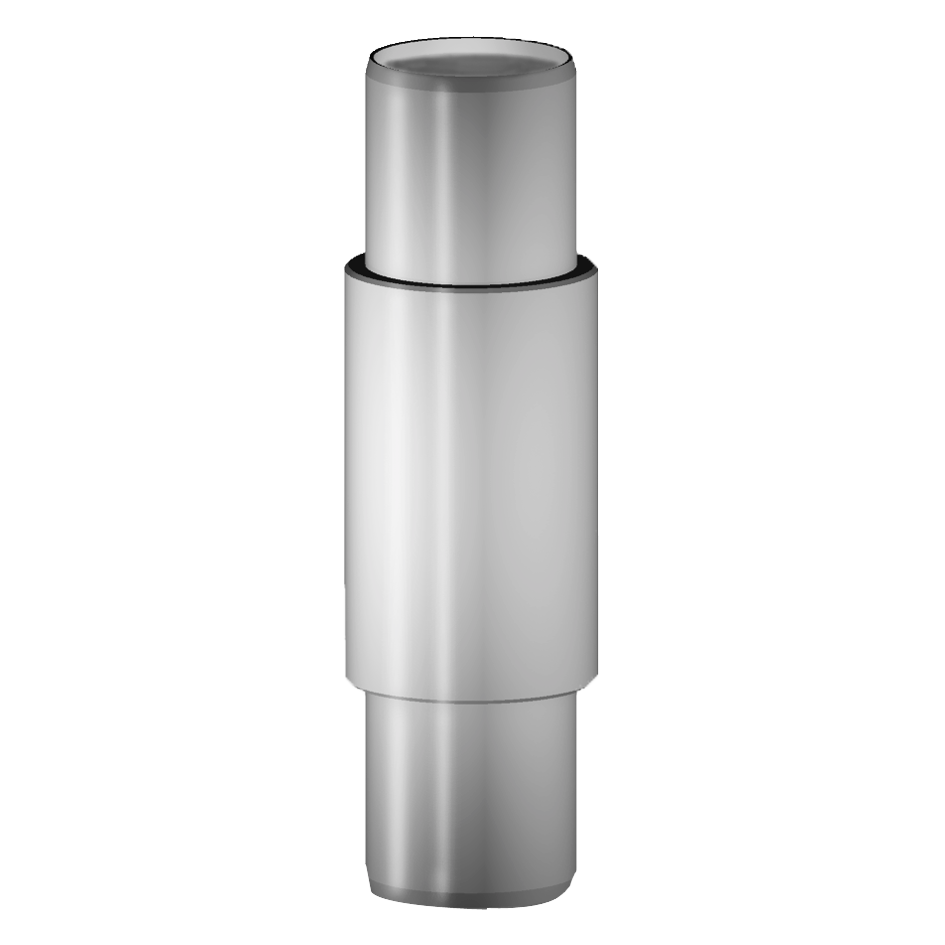

Toilet penetration

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
Suitable for both syphonic, vacuum and gravity drainage solutions
Double lip seal push-fit connection for easy and reliable installation

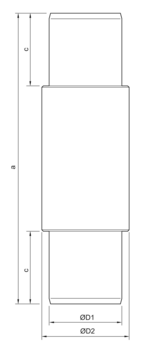

Dimensions					Material	Seal	Weight	Item number
D1	D2	a	b	c			Weight
[mm]	[mm]	[mm]	[mm]	[mm]			[kg]

50	60	200	100	50	1.4301	EPDM	1.00	419272
50	60	200	100	50	1.4404	EPDM	1.00	419273

Dimensions					Seal	Material	Weight	Item number
D1	D2	a	b	c	Seal	Material	Weight	Item number

50 mm	60 mm	200 mm	100 mm	50 mm	EPDM	1.4301	1.00 kg	419272
50 mm	60 mm	200 mm	100 mm	50 mm	EPDM	1.4404	1.00 kg	419273
