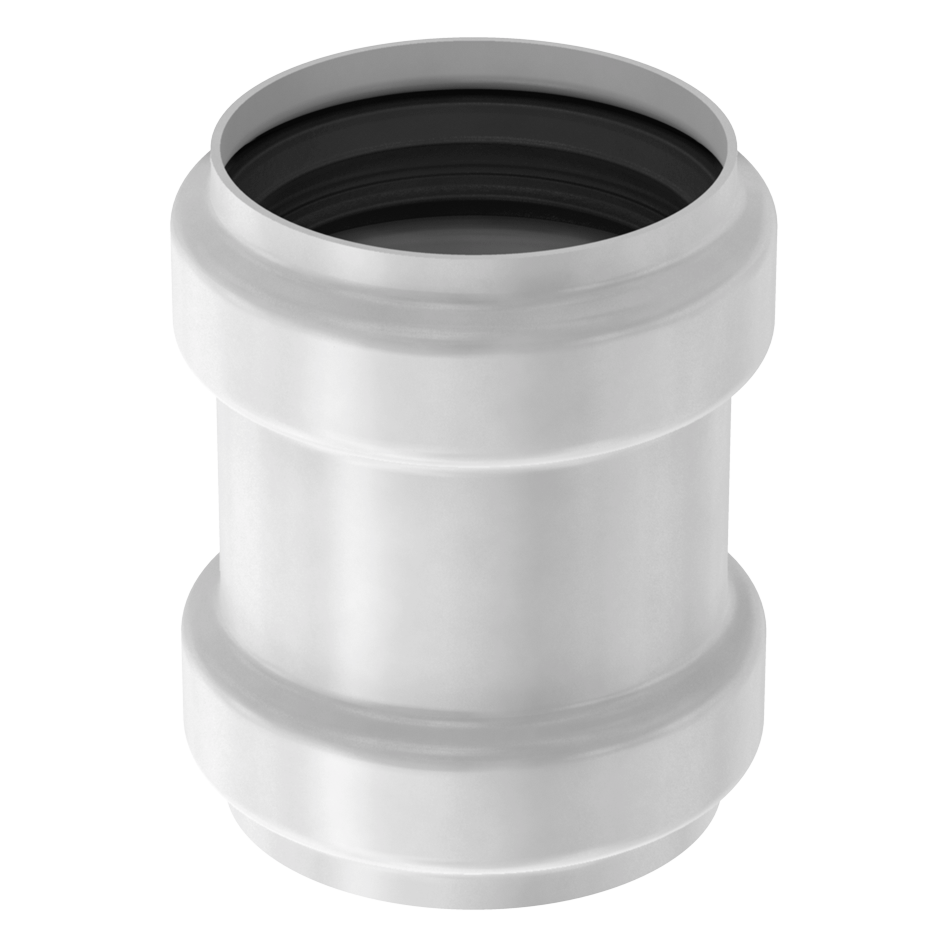

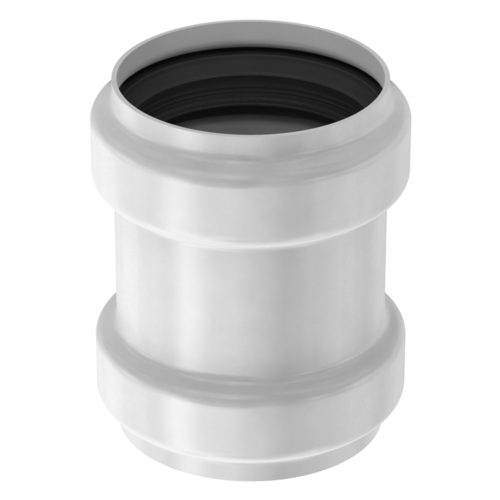

Repair coupling

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

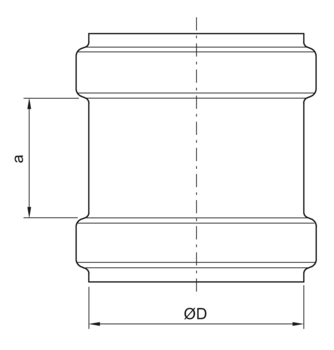

Nominal pipe sizeDimensionsMaterialSealWeightItem

number
Remember
Da
[mm][mm][kg]
DN 404057.21.4301EPDM0.08417388
1.4404EPDM0.08417390
DN 5050441.4301EPDM0.1098830
Viton®0.1098831
1.4404EPDM0.1098880
Viton®0.1098881
DN 7575461.4301EPDM0.2098832
Viton®0.2098833
1.4404EPDM0.2098882
Viton®0.2098883
DN 110110521.4301EPDM0.3098834
Viton®0.3098835
1.4404EPDM0.3098884
Viton®0.3098885
DN 125125701.4301EPDM0.34419772
Viton®0.34419773
1.4404EPDM0.34419774
Viton®0.34419775
DN 160160761.4301EPDM0.7098836
Viton®0.7098837
1.4404EPDM0.7098886
Viton®0.7098887
DN 2002001001.4301EPDM1.50419435
Viton®1.50419436
1.4404EPDM1.50419437
Viton®1.50419438
DN 2502501821.4404EPDM2.40417139
Viton®2.40417141
DN 3153151791.4404EPDM4.90417220

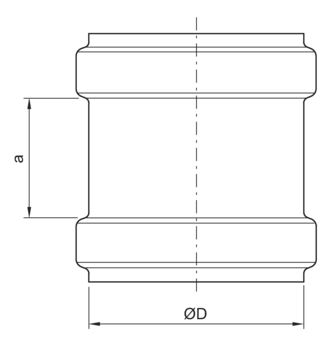

Nominal sizeDimensionsSealMaterialWeightItem

number
Da
DN 4040 mm57.2 mmEPDM1.43010.08 kg417388
1.44040.08 kg417390
DN 5050 mm44 mmEPDM1.43010.10 kg98830
Viton®1.43010.10 kg98831
EPDM1.44040.10 kg98880
Viton®1.44040.10 kg98881
DN 7575 mm46 mmEPDM1.43010.20 kg98832
Viton®1.43010.20 kg98833
EPDM1.44040.20 kg98882
Viton®1.44040.20 kg98883
DN 110110 mm52 mmEPDM1.43010.30 kg98834
Viton®1.43010.30 kg98835
EPDM1.44040.30 kg98884
Viton®1.44040.30 kg98885
DN 125125 mm70 mmEPDM1.43010.34 kg419772
Viton®1.43010.34 kg419773
EPDM1.44040.34 kg419774
Viton®1.44040.34 kg419775
DN 160160 mm76 mmEPDM1.43010.70 kg98836
Viton®1.43010.70 kg98837
EPDM1.44040.70 kg98886
Viton®1.44040.70 kg98887
DN 200200 mm100 mmEPDM1.43011.50 kg419435
Viton®1.43011.50 kg419436
EPDM1.44041.50 kg419437
Viton®1.44041.50 kg419438
DN 250250 mm182 mmEPDM1.44042.40 kg417139
Viton®1.44042.40 kg417141
DN 315315 mm179 mmEPDM1.44044.90 kg417220
