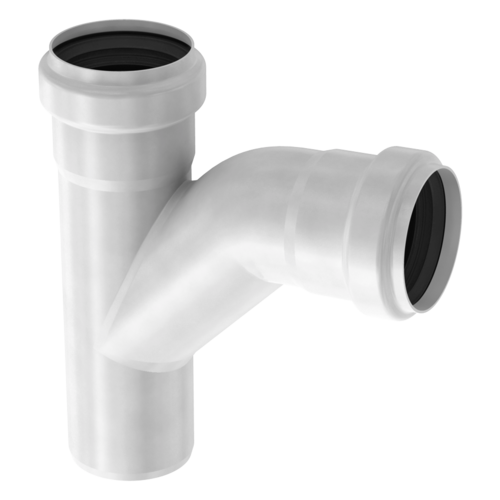

Swept single branch 87,5°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

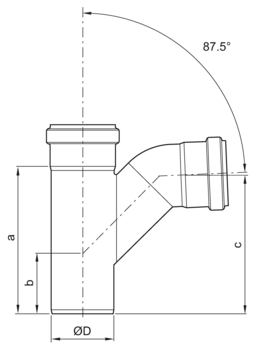

Nominal pipe sizeAngle αDimensionsMaterialSealWeightItem

number
Remember
Dabc
[mm][mm][mm][mm][kg]
DN 4087,5°40115551051.4301EPDM0.30417376
1.4404EPDM0.30417380
DN 5087,5°50128571171.4301EPDM0.3098814
Viton®0.3098815
1.4404EPDM0.3098864
Viton®0.3098865
DN 7587,5°75179741571.4301EPDM0.6098816
Viton®0.6098817
1.4404EPDM0.6098866
Viton®0.6098867
DN 11087,5°110233882091.4301EPDM1.1098818
Viton®1.1098819
1.4404EPDM1.1098868
Viton®1.1098869
DN 16087,5°1603321843021.4301EPDM2.8098820
Viton®2.8098821
1.4404EPDM2.8098870
Viton®2.8098871
Nominal sizeAngle αDimensionsSealMaterialWeightItem

number
Dabc
DN 4087,5°40 mm115 mm55 mm105 mmEPDM1.43010.30 kg417376
1.44040.30 kg417380
DN 5087,5°50 mm128 mm57 mm117 mmEPDM1.43010.30 kg98814
Viton®1.43010.30 kg98815
EPDM1.44040.30 kg98864
Viton®1.44040.30 kg98865
DN 7587,5°75 mm179 mm74 mm157 mmEPDM1.43010.60 kg98816
Viton®1.43010.60 kg98817
EPDM1.44040.60 kg98866
Viton®1.44040.60 kg98867
DN 11087,5°110 mm233 mm88 mm209 mmEPDM1.43011.10 kg98818
Viton®1.43011.10 kg98819
EPDM1.44041.10 kg98868
Viton®1.44041.10 kg98869
DN 16087,5°160 mm332 mm184 mm302 mmEPDM1.43012.80 kg98820
Viton®1.43012.80 kg98821
EPDM1.44042.80 kg98870
Viton®1.44042.80 kg98871
