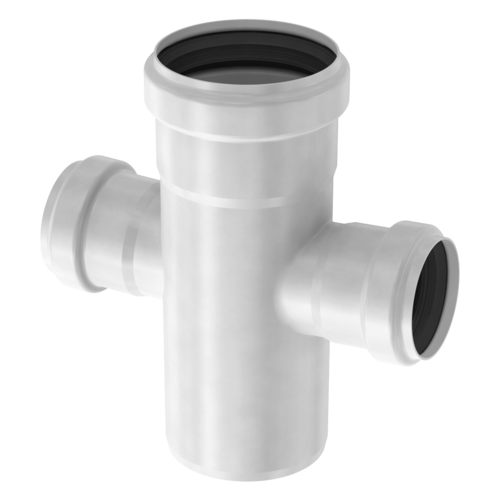

Double branch reduction 87,5°

Product benefits

ACO pipe used toggether with other ACO drainage products provides complex building drainage solution:

  • Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
  • Resistant to thermal and dynamic shocks
  • Fast, reliable and cost-effective installation
  • Sagging-proof
  • Non-combustible
  • Rodent-proof

Product information

  • Stainless steel ACO pipe system is designed for gray and black water, rainwater and industrial waste water drainage applications
  • Suitable for both syphonic, vacuum and gravity drainage solutions
  • Double lip seal push-fit connection for easy and reliable installation

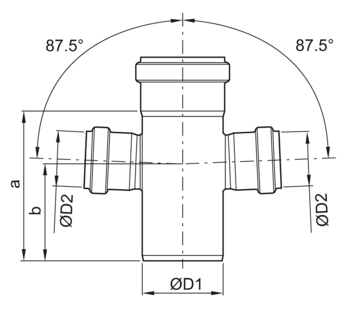

Nominal pipe sizeAngle αDimensionsMaterialSealWeightItem

number
Remember
D1D2ab
[mm][mm][mm][mm][kg]
DN 50 / DN 4087,5°5040106711.4301EPDM0.25417398
1.4404EPDM0.25417399
DN 75 / DN 5087,5°7550139901.4301EPDM0.3098940
Viton®0.3098941
1.4404EPDM0.3098942
Viton®0.3098943
DN 110 / DN 5087,5°110501831171.4301EPDM0.6098944
Viton®0.6098945
1.4404EPDM0.6098946
Viton®0.6098947
DN 110 / DN 7587,5°110751831171.4301EPDM0.9098900
Viton®0.9098901
1.4404EPDM0.9098902
Viton®0.9098903
DN 160 / DN 11087,5°1601102881841.4301EPDM2.70400695
Viton®2.70400696
1.4404EPDM2.70400697
Viton®2.70400698

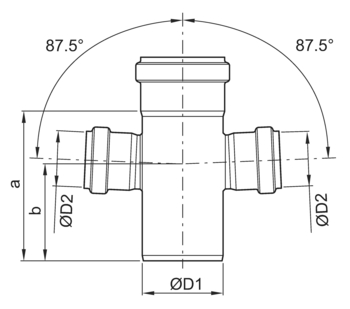

Nominal sizeAngle αDimensionsSealMaterialWeightItem

number
D1D2ab
DN 50 / DN 4087,5°50 mm40 mm106 mm71 mmEPDM1.43010.25 kg417398
1.44040.25 kg417399
DN 75 / DN 5087,5°75 mm50 mm139 mm90 mmEPDM1.43010.30 kg98940
Viton®1.43010.30 kg98941
EPDM1.44040.30 kg98942
Viton®1.44040.30 kg98943
DN 110 / DN 5087,5°110 mm50 mm183 mm117 mmEPDM1.43010.60 kg98944
Viton®1.43010.60 kg98945
EPDM1.44040.60 kg98946
Viton®1.44040.60 kg98947
DN 110 / DN 7587,5°110 mm75 mm183 mm117 mmEPDM1.43010.90 kg98900
Viton®1.43010.90 kg98901
EPDM1.44040.90 kg98902
Viton®1.44040.90 kg98903
DN 160 / DN 11087,5°160 mm110 mm288 mm184 mmEPDM1.43012.70 kg400695
Viton®1.43012.70 kg400696
EPDM1.44042.70 kg400697
Viton®1.44042.70 kg400698
