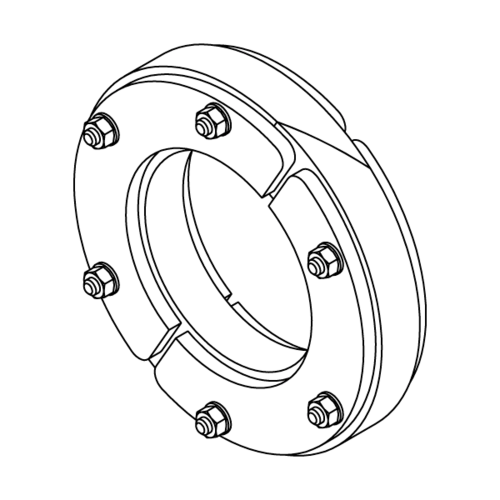

APLEX mono - split variant

Versatility and Compatibility: APLEX wall seals accommodate a broad range of perforating piping sizes, from 15 mm to 275 mm.
Durability and Resistance: Constructed from corrosion-proof yellow chromated steel and special rubber, the seals offer long-lasting performance.
Flexible Design Options: The seals offer design flexibility, allowing for precise location and dimension adjustments either before or after wall construction.
Ease of Installation: The seals can be conveniently installed using a plastic tube method during concrete works, simplifying the process.
Waterproof and Pressure-Resistant: APLEX provides tailored sealing solutions that are waterproof and specifically designed for areas with pressure water activity.

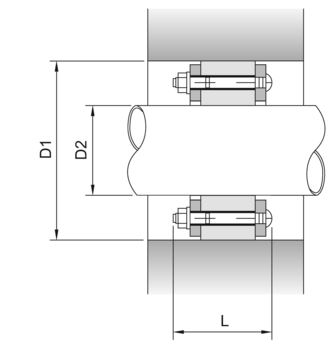

D1	D2	L	Seal	Weight	Item number	Downloads	Remember
[mm]	[mm]	[mm]	Seal	[kg]	Item number	Downloads	Remember
80	25 – 28	53	EPDM	0.55	401126
80	32 – 35	53	EPDM	0.54	401127
80	36 – 40	53	EPDM	0.53	401128
100	41 – 44	53	EPDM	0.72	401129
100	47 – 51	53	EPDM	0.71	401130
100	52 – 56	53	EPDM	0.69	401131
125	57 – 61	53	EPDM	1.33	401132
125	62 – 65	53	EPDM	1.30	401133
125	73 – 76	53	EPDM	1.27	401134
150	78 – 81	53	EPDM	1.70	401135
150	88 – 91	53	EPDM	1.65	401136
150	98 – 102	53	EPDM	1.60	401137
200	108 – 112	53	EPDM	2.78	401138
200	114 – 118	53	EPDM	2.72	401139
200	123 – 126	53	EPDM	2.67	401140
200	128 – 132	53	EPDM	2.62	401141
200	133 – 136	53	EPDM	2.59	401142
200	137 – 141	53	EPDM	2.56	401143
250	142 – 146	53	EPDM	4.46	401144
250	158 – 162	53	EPDM	4.35	401145
250	165 – 170	53	EPDM	4.23	401146
250	177 – 181	53	EPDM	4.11	401321
300	200 – 204	53	EPDM	5.59	401147
300	209 – 212	53	EPDM	5.49	401148
300	218 – 221	53	EPDM	5.40	401149
300	222 – 225	53	EPDM	5.31	401150
350	248 – 252	53	EPDM	7.00	401151
350	272 – 275	53	EPDM	6.90	401152

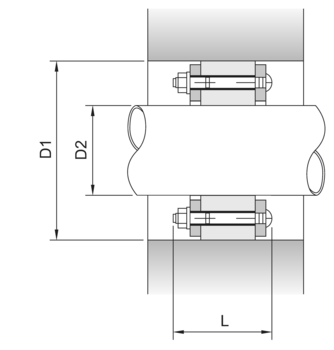

D1	D2	L	Seal	Weight	Item number
80 mm	25 – 28 mm	53 mm	EPDM	0.55 kg	401126
80 mm	32 – 35 mm	53 mm	EPDM	0.54 kg	401127
80 mm	36 – 40 mm	53 mm	EPDM	0.53 kg	401128
100 mm	41 – 44 mm	53 mm	EPDM	0.72 kg	401129
100 mm	47 – 51 mm	53 mm	EPDM	0.71 kg	401130
100 mm	52 – 56 mm	53 mm	EPDM	0.69 kg	401131
125 mm	57 – 61 mm	53 mm	EPDM	1.33 kg	401132
125 mm	62 – 65 mm	53 mm	EPDM	1.30 kg	401133
125 mm	73 – 76 mm	53 mm	EPDM	1.27 kg	401134
150 mm	78 – 81 mm	53 mm	EPDM	1.70 kg	401135
150 mm	88 – 91 mm	53 mm	EPDM	1.65 kg	401136
150 mm	98 – 102 mm	53 mm	EPDM	1.60 kg	401137
200 mm	108 – 112 mm	53 mm	EPDM	2.78 kg	401138
200 mm	114 – 118 mm	53 mm	EPDM	2.72 kg	401139
200 mm	123 – 126 mm	53 mm	EPDM	2.67 kg	401140
200 mm	128 – 132 mm	53 mm	EPDM	2.62 kg	401141
200 mm	133 – 136 mm	53 mm	EPDM	2.59 kg	401142
200 mm	137 – 141 mm	53 mm	EPDM	2.56 kg	401143
250 mm	142 – 146 mm	53 mm	EPDM	4.46 kg	401144
250 mm	158 – 162 mm	53 mm	EPDM	4.35 kg	401145
250 mm	165 – 170 mm	53 mm	EPDM	4.23 kg	401146
250 mm	177 – 181 mm	53 mm	EPDM	4.11 kg	401321
300 mm	200 – 204 mm	53 mm	EPDM	5.59 kg	401147
300 mm	209 – 212 mm	53 mm	EPDM	5.49 kg	401148
300 mm	218 – 221 mm	53 mm	EPDM	5.40 kg	401149
300 mm	222 – 225 mm	53 mm	EPDM	5.31 kg	401150
350 mm	248 – 252 mm	53 mm	EPDM	7.00 kg	401151
350 mm	272 – 275 mm	53 mm	EPDM	6.90 kg	401152
