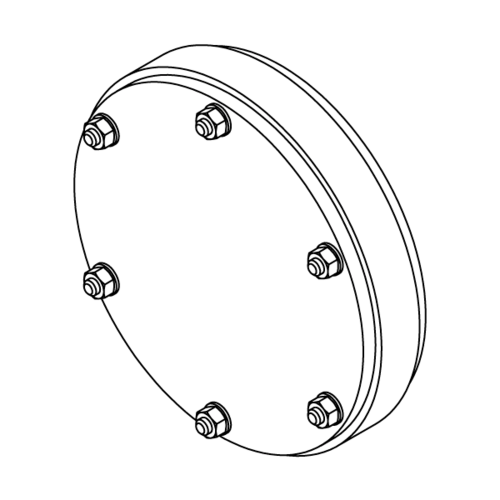

APLEX mono - dead end variant

Versatility and Compatibility: APLEX wall seals accommodate a broad range of perforating piping sizes, from 15 mm to 275 mm.
Durability and Resistance: Constructed from corrosion-proof yellow chromated steel and special rubber, the seals offer long-lasting performance.
Flexible Design Options: The seals offer design flexibility, allowing for precise location and dimension adjustments either before or after wall construction.
Ease of Installation: The seals can be conveniently installed using a plastic tube method during concrete works, simplifying the process.
Waterproof and Pressure-Resistant: APLEX provides tailored sealing solutions that are waterproof and specifically designed for areas with pressure water activity.

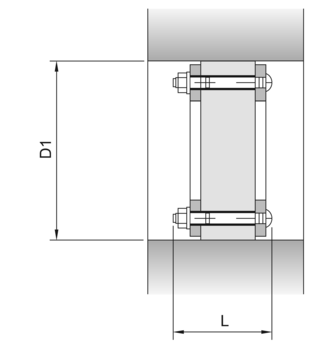

D1	L	Seal	Weight	Item number	Downloads	Remember
[mm]	[mm]	Seal	[kg]	Item number	Downloads	Remember
50	53	EPDM	0.50	401311
80	53	EPDM	0.80	401312
100	53	EPDM	1.00	401313
125	53	EPDM	1.80	401314
150	53	EPDM	2.55	401315
200	53	EPDM	4.00	401316
250	53	EPDM	6.20	401317
300	53	EPDM	8.50	401318
350	53	EPDM	11.60	401319

D1	L	Seal	Weight	Item number
50 mm	53 mm	EPDM	0.50 kg	401311
80 mm	53 mm	EPDM	0.80 kg	401312
100 mm	53 mm	EPDM	1.00 kg	401313
125 mm	53 mm	EPDM	1.80 kg	401314
150 mm	53 mm	EPDM	2.55 kg	401315
200 mm	53 mm	EPDM	4.00 kg	401316
250 mm	53 mm	EPDM	6.20 kg	401317
300 mm	53 mm	EPDM	8.50 kg	401318
350 mm	53 mm	EPDM	11.60 kg	401319
