APLEX liner

Versatility and Compatibility: APLEX wall seals accommodate a broad range of perforating piping sizes, from 15 mm to 275 mm.
Durability and Resistance: Constructed from corrosion-proof yellow chromated steel and special rubber, the seals offer long-lasting performance.
Flexible Design Options: The seals offer design flexibility, allowing for precise location and dimension adjustments either before or after wall construction.
Ease of Installation: The seals can be conveniently installed using a plastic tube method during concrete works, simplifying the process.
Waterproof and Pressure-Resistant: APLEX provides tailored sealing solutions that are waterproof and specifically designed for areas with pressure water activity.

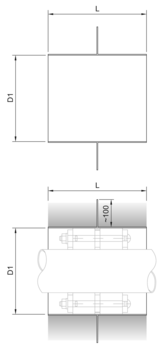

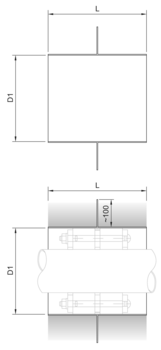

D1	L	Material	Weight	Item number	Downloads	Remember
[mm]	[mm]	Material	[kg]	Item number	Downloads	Remember
50	300	1.4301	2.00	98411
80	300	1.4301	2.70	98412
100	300	1.4301	3.10	98413
125	300	1.4301	3.70	98414
150	300	1.4301	4.30	98415
200	300	1.4301	5.40	98416
250	300	1.4301	6.50	98417
300	300	1.4301	7.70	98418
350	300	1.4301	8.80	98431
50	400	1.4301	2.30	98419
80	400	1.4301	3.10	98420
100	400	1.4301	3.60	98421
125	400	1.4301	4.30	98422
150	400	1.4301	5.10	98423
200	400	1.4301	6.40	98424
250	400	1.4301	7.80	98425
300	400	1.4301	9.20	98426
350	400	1.4301	10.50	98432

D1	L	Material	Weight	Item number
50 mm	300 mm	1.4301	2.00 kg	98411
80 mm	300 mm	1.4301	2.70 kg	98412
100 mm	300 mm	1.4301	3.10 kg	98413
125 mm	300 mm	1.4301	3.70 kg	98414
150 mm	300 mm	1.4301	4.30 kg	98415
200 mm	300 mm	1.4301	5.40 kg	98416
250 mm	300 mm	1.4301	6.50 kg	98417
300 mm	300 mm	1.4301	7.70 kg	98418
350 mm	300 mm	1.4301	8.80 kg	98431
50 mm	400 mm	1.4301	2.30 kg	98419
80 mm	400 mm	1.4301	3.10 kg	98420
100 mm	400 mm	1.4301	3.60 kg	98421
125 mm	400 mm	1.4301	4.30 kg	98422
150 mm	400 mm	1.4301	5.10 kg	98423
200 mm	400 mm	1.4301	6.40 kg	98424
250 mm	400 mm	1.4301	7.80 kg	98425
300 mm	400 mm	1.4301	9.20 kg	98426
350 mm	400 mm	1.4301	10.50 kg	98432
