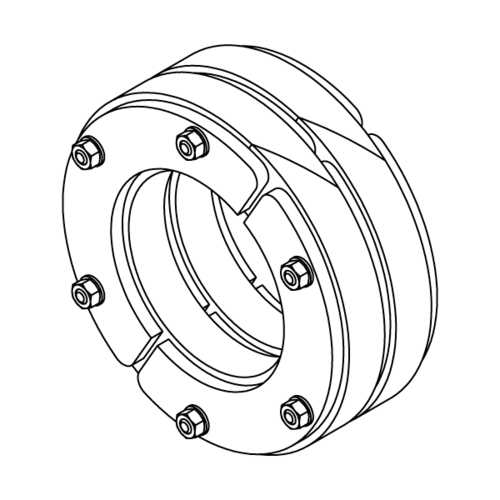

APLEX duo - split variant

Product benefits

  • Versatility and Compatibility: APLEX wall seals accommodate a broad range of perforating piping sizes, from 15 mm to 275 mm.
  • Durability and Resistance: Constructed from corrosion-proof yellow chromated steel and special rubber, the seals offer long-lasting performance.
  • Flexible Design Options: The seals offer design flexibility, allowing for precise location and dimension adjustments either before or after wall construction.
  • Ease of Installation: The seals can be conveniently installed using a plastic tube method during concrete works, simplifying the process.
  • Waterproof and Pressure-Resistant: APLEX provides tailored sealing solutions that are waterproof and specifically designed for areas with pressure water activity.

Product information

  • Massive zinc flange
  • Nuts and washers from stainless steel
  • Screws with strength of 8.8 screwed and welded to the flange
  • Wide sealing, material EPDM with temperature resistance up to 130°C
  • Marking of each product by the hole diameter and the tube diameter range

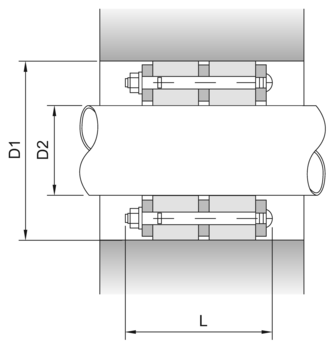

D1D2LSealWeightItem

number
Remember
[mm][mm][mm][kg]
8025 – 2878EPDM0.70401153
8032 – 3578EPDM0.68401154
8036 – 4078EPDM0.66401155
10041 – 4478EPDM0.94401156
10047 – 5178EPDM0.92401157
10052 – 5678EPDM0.88401158
12557 – 6178EPDM1.66401159
12562 – 6578EPDM1.60401160
12573 – 7678EPDM1.54401161
15078 – 8178EPDM2.16401162
15088 – 9178EPDM2.04401163
15098 – 10278EPDM1.92401164
200108 – 11278EPDM3.56401165
200114 – 11878EPDM3.44401166
200123 – 12678EPDM3.34401167
200128 – 13278EPDM3.24401168
200133 – 13678EPDM3.18401169
200137 – 14178EPDM3.12401170
250142 – 14678EPDM5.64401171
250158 – 16278EPDM5.42401172
250165 – 17078EPDM5.18401173
250177 – 18178EPDM5.10401322
300200 – 20478EPDM6.98401174
300209 – 21278EPDM6.78401175
300218 – 22178EPDM6.60401176
300222 – 22578EPDM6.42401177
350248 – 25278EPDM8.40401178
350272 – 27578EPDM8.30401179

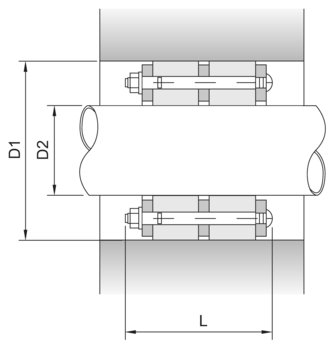

D1D2LSealWeightItem

number
80 mm25 – 28 mm78 mmEPDM0.70 kg401153
80 mm32 – 35 mm78 mmEPDM0.68 kg401154
80 mm36 – 40 mm78 mmEPDM0.66 kg401155
100 mm41 – 44 mm78 mmEPDM0.94 kg401156
100 mm47 – 51 mm78 mmEPDM0.92 kg401157
100 mm52 – 56 mm78 mmEPDM0.88 kg401158
125 mm57 – 61 mm78 mmEPDM1.66 kg401159
125 mm62 – 65 mm78 mmEPDM1.60 kg401160
125 mm73 – 76 mm78 mmEPDM1.54 kg401161
150 mm78 – 81 mm78 mmEPDM2.16 kg401162
150 mm88 – 91 mm78 mmEPDM2.04 kg401163
150 mm98 – 102 mm78 mmEPDM1.92 kg401164
200 mm108 – 112 mm78 mmEPDM3.56 kg401165
200 mm114 – 118 mm78 mmEPDM3.44 kg401166
200 mm123 – 126 mm78 mmEPDM3.34 kg401167
200 mm128 – 132 mm78 mmEPDM3.24 kg401168
200 mm133 – 136 mm78 mmEPDM3.18 kg401169
200 mm137 – 141 mm78 mmEPDM3.12 kg401170
250 mm142 – 146 mm78 mmEPDM5.64 kg401171
250 mm158 – 162 mm78 mmEPDM5.42 kg401172
250 mm165 – 170 mm78 mmEPDM5.18 kg401173
250 mm177 – 181 mm78 mmEPDM5.10 kg401322
300 mm200 – 204 mm78 mmEPDM6.98 kg401174
300 mm209 – 212 mm78 mmEPDM6.78 kg401175
300 mm218 – 221 mm78 mmEPDM6.60 kg401176
300 mm222 – 225 mm78 mmEPDM6.42 kg401177
350 mm248 – 252 mm78 mmEPDM8.40 kg401178
350 mm272 – 275 mm78 mmEPDM8.30 kg401179
