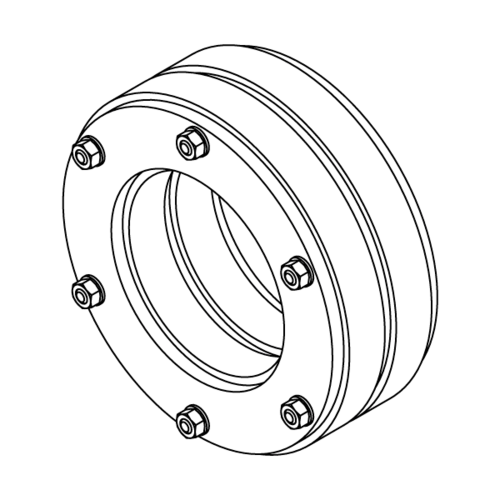

APLEX duo

Product benefits

  • Versatility and Compatibility: APLEX wall seals accommodate a broad range of perforating piping sizes, from 15 mm to 275 mm.
  • Durability and Resistance: Constructed from corrosion-proof yellow chromated steel and special rubber, the seals offer long-lasting performance.
  • Flexible Design Options: The seals offer design flexibility, allowing for precise location and dimension adjustments either before or after wall construction.
  • Ease of Installation: The seals can be conveniently installed using a plastic tube method during concrete works, simplifying the process.
  • Waterproof and Pressure-Resistant: APLEX provides tailored sealing solutions that are waterproof and specifically designed for areas with pressure water activity.

Product information

  • Massive zinc flange
  • Nuts and washers from stainless steel
  • Screws with strength of 8.8 screwed and welded to the flange
  • Wide sealing, material EPDM with temperature resistance up to 130°C
  • Marking of each product by the hole diameter and the tube diameter range

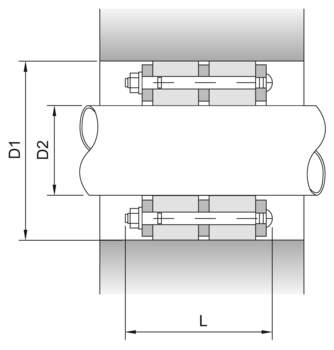

D1D2LSealWeightItem

number
Remember
[mm][mm][mm][kg]
5015 – 1878EPDM0.2270731
5019 – 2278EPDM0.2270732
8025 – 2878EPDM0.7070733
8032 – 3578EPDM0.6870734
8036 – 4078EPDM0.6670735
10041 – 4478EPDM0.9470736
10047 – 5178EPDM0.9270737
10052 – 5678EPDM0.8870738
12557 – 6178EPDM1.6670739
12562 – 6578EPDM1.6070740
12573 – 7678EPDM1.5470741
15078 – 8178EPDM2.1670742
15088 – 9178EPDM2.0470743
15098 – 10278EPDM1.9270744
200108 – 11278EPDM3.5670745
200114 – 11878EPDM3.4470746
200123 – 12678EPDM3.3470747
200128 – 13278EPDM3.2470748
200133 – 13678EPDM3.1870749
200137 – 14178EPDM3.1270750
250142 – 14678EPDM5.6470751
250158 – 16278EPDM5.4270752
250165 – 17078EPDM5.1870753
250177 – 18178EPDM5.1072693
300200 – 20478EPDM6.9870754
300209 – 21278EPDM6.7870755
300218 – 22178EPDM6.6070756
300222 – 22578EPDM6.4270757
350248 – 25278EPDM8.4072958
350272 – 27578EPDM8.3072959

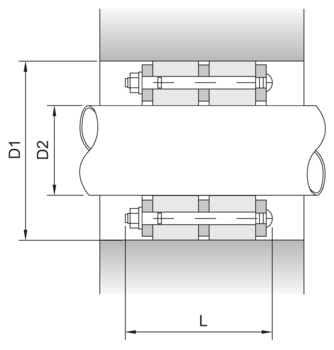

D1D2LSealWeightItem

number
50 mm15 – 18 mm78 mmEPDM0.22 kg70731
50 mm19 – 22 mm78 mmEPDM0.22 kg70732
80 mm25 – 28 mm78 mmEPDM0.70 kg70733
80 mm32 – 35 mm78 mmEPDM0.68 kg70734
80 mm36 – 40 mm78 mmEPDM0.66 kg70735
100 mm41 – 44 mm78 mmEPDM0.94 kg70736
100 mm47 – 51 mm78 mmEPDM0.92 kg70737
100 mm52 – 56 mm78 mmEPDM0.88 kg70738
125 mm57 – 61 mm78 mmEPDM1.66 kg70739
125 mm62 – 65 mm78 mmEPDM1.60 kg70740
125 mm73 – 76 mm78 mmEPDM1.54 kg70741
150 mm78 – 81 mm78 mmEPDM2.16 kg70742
150 mm88 – 91 mm78 mmEPDM2.04 kg70743
150 mm98 – 102 mm78 mmEPDM1.92 kg70744
200 mm108 – 112 mm78 mmEPDM3.56 kg70745
200 mm114 – 118 mm78 mmEPDM3.44 kg70746
200 mm123 – 126 mm78 mmEPDM3.34 kg70747
200 mm128 – 132 mm78 mmEPDM3.24 kg70748
200 mm133 – 136 mm78 mmEPDM3.18 kg70749
200 mm137 – 141 mm78 mmEPDM3.12 kg70750
250 mm142 – 146 mm78 mmEPDM5.64 kg70751
250 mm158 – 162 mm78 mmEPDM5.42 kg70752
250 mm165 – 170 mm78 mmEPDM5.18 kg70753
250 mm177 – 181 mm78 mmEPDM5.10 kg72693
300 mm200 – 204 mm78 mmEPDM6.98 kg70754
300 mm209 – 212 mm78 mmEPDM6.78 kg70755
300 mm218 – 221 mm78 mmEPDM6.60 kg70756
300 mm222 – 225 mm78 mmEPDM6.42 kg70757
350 mm248 – 252 mm78 mmEPDM8.40 kg72958
350 mm272 – 275 mm78 mmEPDM8.30 kg72959
