APLEX basement slab penetration

Versatility and Compatibility: APLEX wall seals accommodate a broad range of perforating piping sizes, from 15 mm to 275 mm.
Durability and Resistance: Constructed from corrosion-proof yellow chromated steel and special rubber, the seals offer long-lasting performance.
Flexible Design Options: The seals offer design flexibility, allowing for precise location and dimension adjustments either before or after wall construction.
Ease of Installation: The seals can be conveniently installed using a plastic tube method during concrete works, simplifying the process.
Waterproof and Pressure-Resistant: APLEX provides tailored sealing solutions that are waterproof and specifically designed for areas with pressure water activity.

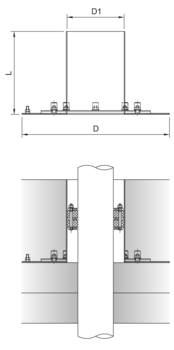

D	D1	L	Material	Weight	Item number	Downloads	Remember
[mm]	[mm]	[mm]	Material	[kg]	Item number	Downloads	Remember
250	50	300	1.4301	2.30	405351
280	80	300	1.4301	3.00	405352
300	100	300	1.4301	3.60	405353
325	125	300	1.4301	4.20	405354
350	150	300	1.4301	4.80	405355
400	200	300	1.4301	6.00	405356
450	250	300	1.4301	7.90	405357
500	300	300	1.4301	8.40	405358
550	350	300	1.4301	9.70	405359

D	D1	L	Material	Weight	Item number
250 mm	50 mm	300 mm	1.4301	2.30 kg	405351
280 mm	80 mm	300 mm	1.4301	3.00 kg	405352
300 mm	100 mm	300 mm	1.4301	3.60 kg	405353
325 mm	125 mm	300 mm	1.4301	4.20 kg	405354
350 mm	150 mm	300 mm	1.4301	4.80 kg	405355
400 mm	200 mm	300 mm	1.4301	6.00 kg	405356
450 mm	250 mm	300 mm	1.4301	7.90 kg	405357
500 mm	300 mm	300 mm	1.4301	8.40 kg	405358
550 mm	350 mm	300 mm	1.4301	9.70 kg	405359
