Parking deck drains for mastic asphalt, DN 100

Product benefits

  • Stainless steel parking deck drain for mastic asphalt
    • For heights 35mm and 70mm

Product information

  • Made of stainless steel
  • Tested according to DIN EN 1253-2
  • Building material class A1, non-combustible
  • 1-piece
  • Incl. grating
  • Socket inclination. 90°
  • With connecting flange width 120mm according to DIN 18532 for mastic asphalt
  • Load class M125

Nominal width: DN 100

Flange designMaterialVersionGratingRecess (LxB)Flow rateWeightItem

number		Remember
[mm][l/s][kg]

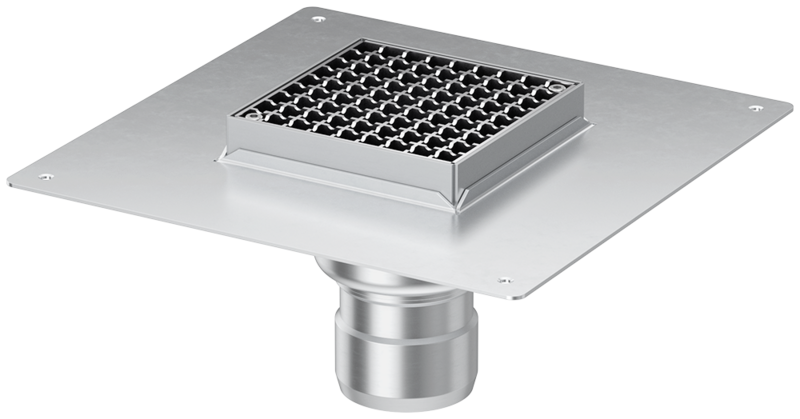

With connecting flangeStainless steel, material grade 304For mastic asphalt with a height of 35mm
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
  • M 125
500 x 5008.15.59519.59.9317
Stainless steel, material grade 316For mastic asphalt with a height of 35mm
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
  • M 125
500 x 5008.16.59519.59.9517

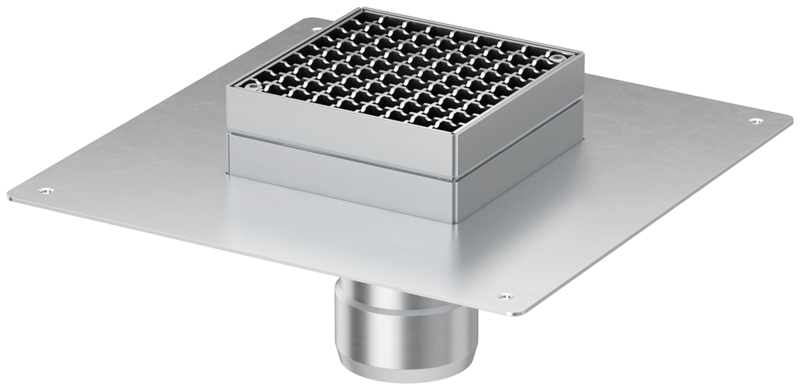

With connecting flangeStainless steel, material grade 304For mastic asphalt with a height of 70mm
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
  • M 125
500 x 5008.15.59519.59.9417
Stainless steel, material grade 316For mastic asphalt with a height of 70mm
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
  • M 125
500 x 5008.16.59519.59.9617
Nominal widthClassFlange designMaterialVersionGratingRecess (LxB)Flow rateWeightItem

number
DN 100M 125With connecting flangeStainless steel, material grade 304For mastic asphalt with a height of 35mm
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
  • M 125
500 x 500 mm8.1 l/s5.5 kg9519.59.93
DN 100M 125With connecting flangeStainless steel, material grade 316For mastic asphalt with a height of 35mm
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
  • M 125
500 x 500 mm8.1 l/s6.5 kg9519.59.95
DN 100M 125With connecting flangeStainless steel, material grade 304For mastic asphalt with a height of 70mm
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
  • M 125
500 x 500 mm8.1 l/s5.5 kg9519.59.94
DN 100M 125With connecting flangeStainless steel, material grade 316For mastic asphalt with a height of 70mm
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
  • M 125
500 x 500 mm8.1 l/s6.5 kg9519.59.96

Abflusswerte: Parkdeckabläufe Edelstahl Gussasphalt

ArtikelnummerNennweiteAblaufleistungAbflussleistung
Anstauhöhe 35 mm
DNl/sPDF
9519.59.931009,0
9519.59.951009,0
9519.59.941009,0
9519.59.961009,0
