Parking Deck Drains For Liquid Waterproofing Dn 70 - Dn 100 271125

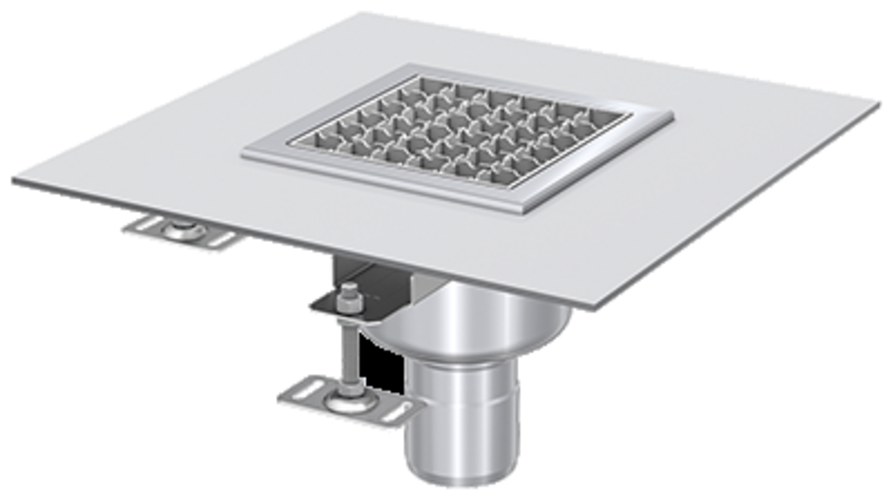

Parking deck drains for liquid waterproofing, DN 70 - DN 100

Product benefits

  • Special solution for floor slabs without floor gully
Contact
Downloads

Product information

  • Made of stainless steel
  • Tested in accordance with EN 1253-2
  • Building material class A1, non-flammable
  • 1-piece
  • Incl. mesh grating
  • Socket inclination: 90°
  • With connection flange for liquid parking deck coatings
  • Load class: M 125

Nominal width: DN 70

Flange designMaterialGratingRecess (LxB)Flow rateWeightItem

number		Remember
[mm][l/s][kg]
ImageFor composite sealsStainless steel, material grade 304
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
  • M 125
500 x 5003.86.79579.59.9117
Stainless steel, material grade 316
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
  • M 125
500 x 5003.86.79579.59.9217

Nominal width: DN 100

Flange designMaterialGratingRecess (LxB)Flow rateWeightItem

number		Remember
[mm][l/s][kg]
ImageFor composite sealsStainless steel, material grade 304
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
  • M 125
500 x 50010.06.99519.59.9117
Stainless steel, material grade 316
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
  • M 125
500 x 50010.06.99519.59.9217
Nominal widthClassFlange designMaterialGratingRecess (LxB)Flow rateWeightItem

number
ImageDN 70M 125For composite sealsStainless steel, material grade 304
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
  • M 125
500 x 500 mm3.8 l/s6.7 kg9579.59.91
ImageDN 70M 125For composite sealsStainless steel, material grade 316
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
  • M 125
500 x 500 mm3.8 l/s6.7 kg9579.59.92
ImageDN 100M 125For composite sealsStainless steel, material grade 304
  • Mesh grating
  • Stainless steel, material grade 304
  • Bolted
  • M 125
500 x 500 mm10.0 l/s6.9 kg9519.59.91
ImageDN 100M 125For composite sealsStainless steel, material grade 316
  • Mesh grating
  • Stainless steel, material grade 316
  • Bolted
  • M 125
500 x 500 mm10.0 l/s6.9 kg9519.59.92

Abflusswerte Parkdeckabläufe aus Edelstahl

ArtikelnummerNennweiteAblaufleistungAbflusswerte
Anstauhöhe 35 mm
DNl/sPDF
9579.59.91703,8
9579.59.92703,8
9519.59.9110010,0
9519.59.9210010,0
