Drainage Channels Aquapass 271127

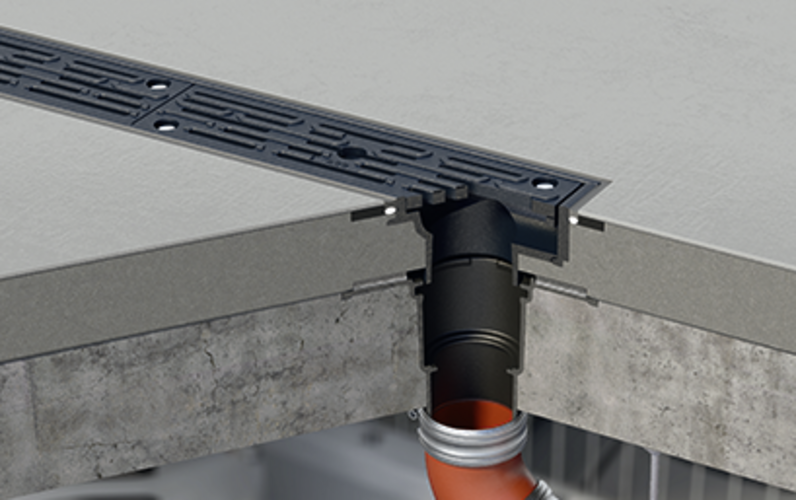

Parking deck drainage channels Aquapass

Contact
Downloads

Product information

  • Made of cast iron
  • Building material class A1
  • No own gradient
  • Tested to DIN EN 124/DIN 1229
    • Load class: B 125/C 250
  • Conforms to DIN EN 1253
    • Load class: M 125

Infobox

Note: For ceilings with seals the Spin flat roof gully (7034.10.12; 7054.11.12) must be used.

DescriptionWeightItem

number		Remember
[kg]
ImageChannel
  • With inset lengthwise slot grating
  • Screwed
  • Inlet cross-section: 340 cm²/m
13.05801.60.001
ImageChannel with cast-on gully sockets
  • With inset lengthwise slot grating
  • Screwed
  • Inlet cross-section: 340 cm²/m
13.25801.62.001
DescriptionWeightItem

number
ImageChannel
  • With inset lengthwise slot grating
  • Screwed
  • Inlet cross-section: 340 cm²/m
13.0 kg5801.60.00
ImageChannel with cast-on gully sockets
  • With inset lengthwise slot grating
  • Screwed
  • Inlet cross-section: 340 cm²/m
13.2 kg5801.62.00

Lengthwise slot grating made of cast iron

Suitable for
  • Cast iron Aquapass drainage channels for car-park decks
Description
  • Length: 500 mm
  • Load class: B 125/C 250
  • Slot width: 10 mm
  • Weight: 5.6 kg
  • Rabattgruppe: 1
Item no.
5801.60.20

Start and end caps

Suitable for
  • Cast iron Aquapass drainage channels for car-park decks
Description
  • Made of cast iron
  • Weight: 1.4 kg
  • Rabattgruppe: 1
Item no.
5801.00.80

Cover plate, complete

Suitable for
  • Cast iron Aquapass drainage channels for car-park decks
Description
  • To cover the flow gap between gully body and channel sockets
  • Weight: 1.2 kg
Item no.
5801.00.90
