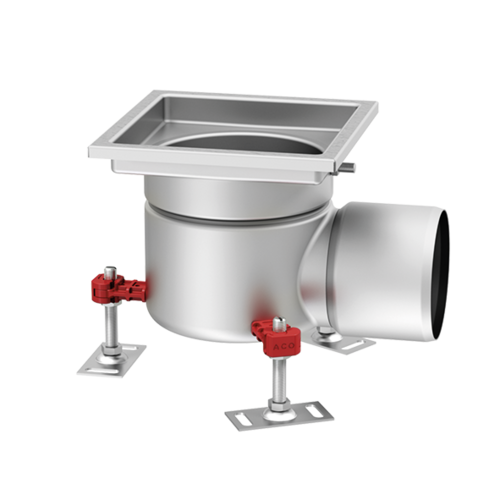

Fixed height with horizontal outlet - Square top
Product benefits
- Fully inspectable and cleanable
- Fully removable and easily cleanable stainless steel foul air trap (FAT)
- Full drainability
- Internal radii equal or larger than 3 mm
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated
Product information
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Certified according to EN 1253-1
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Outlet diameter 75 or 110 mm
- Gully top size 200 x 200 mm or 250 x 250 mm
- Adjustable EasyFix levelling feet
- Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
- Silt basket available as accessory

ACO weldless ladder grating

ACO frameless ladder grating

ACO frameless ladder grating - Round

ACO hygienic ladder grating

ACO hygienic ladder grating - Round

ACO hygienic slot cover

ACO hygienic slot cover - Round

ACO perforated grating

ACO perforated grating - Round

ACO mesh grating

ACO quadrato grating

ACO heelsafe grating

ACO multi-slot 5 grating

ACO odour proof gully cover

ACO tile grating

ACO ladder grating

ACO perforated grating
ACO mesh tundish 200
ACO mesh tundish 200
ACO quadrato tundish 200
ACO quadrato tundish 200
ACO Easy FAT 157
Suitable for
- ACO gully 157, fixed height
Description
Replacement sealing ring:
- 98402
Optional compatible silt baskets:
- 416906 (1.4301)
- 416907 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.6 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.9 kg
ACO Easy FAT 157
Suitable for
- ACO gully 157, fixed height
Description
Replacement sealing ring:
- 98402
Optional compatible silt baskets:
- 416906 (1.4301)
- 416907 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.6 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.9 kg
ACO tundish portable
ACO tundish portable
ACO Easy FAT 157
Suitable for
- ACO gully 157, fixed height
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.4 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1.1 kg
ACO Easy FAT 157
Suitable for
- ACO gully 157, fixed height
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.4 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1.1 kg
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4404 (316L)
ACO fire resistant kit for gully 157/DN 75
ACO fire resistant kit for gully 157/DN 110
ACO mesh tundish 250
ACO mesh tundish 250
ACO quadrato tundish 250
ACO quadrato tundish 250
Odour trap
Odour trap
Standard foul air trap support
