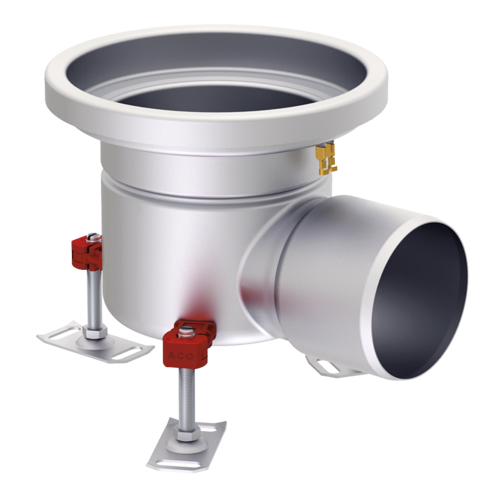

Fixed height with horizontal outlet - Round top
Product benefits
- Fully inspectable and cleanable
- Fully removable and easily cleanable stainless steel foul air trap (FAT)
- Full drainability
- Internal radii equal or larger than 3 mm
- Fully welded hygienic joints
- Steel thickness min. 1,5 mm
- Edge infill
- ACO protective cover available
- Fully pickled and passivated
Product information
- Adjustable EasyFix leveling feet
- Hygienic design following EN 1672, EN ISO 14159 and EHEDG document 8, 13 and 44
- Certified according to EN 1253-1
- Available in 1.4301 (304) or 1.4404 (316L) grades of stainless steel
- Outlet diameter 75 or 110 mm
- Gully top size 200 x 200 mm or 250 x 250 mm
- Adjustable EasyFix levelling feet
- Wide range of gratings for load class L 15, R 50, M 125 or N 250 (EN 1253-1) including slip resistant solution
- Silt basket available as accessory
ACO weldless ladder grating
ACO frameless ladder grating
ACO frameless ladder grating - Round
ACO hygienic ladder grating
ACO hygienic ladder grating - Round
ACO hygienic slot cover
ACO hygienic slot cover - Round
ACO perforated grating
ACO perforated grating - Round
ACO mesh grating
ACO quadrato grating
ACO heelsafe grating
ACO multi-slot 5 grating
ACO odour proof gully cover
ACO tile grating
ACO ladder grating
ACO perforated grating
ACO Easy FAT 157
Suitable for
- ACO gully 157, fixed height
Description
Replacement sealing ring:
- 98402
Optional compatible silt baskets:
- 416906 (1.4301)
- 416907 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.6 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4301
- Silt basket not included
- Weight: 0.9 kg
ACO Easy FAT 157
Suitable for
- ACO gully 157, fixed height
Description
Replacement sealing ring:
- 98402
Optional compatible silt baskets:
- 416906 (1.4301)
- 416907 (1.4404)
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.6 l/s
- Maximum flow rate with vertical gully: 2.6 l/s
- Material: 1.4404
- Silt basket not included
- Weight: 0.9 kg
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 100 mm
- Material (EN 1253): 1.4301
ACO tundish portable
Suitable for
- Universal
Description
- Base width x length (mm): 250 mm x 286 mm
- Funnel width x length (mm): x
- Funnel height (mm): 200 mm
- Material (EN 1253): 1.4301
ACO Easy FAT 157
Suitable for
- ACO gully 157, fixed height
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.4 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4301
- Silt basket included
- Weight: 1.1 kg
ACO Easy FAT 157
Suitable for
- ACO gully 157, fixed height
Description
Replacement sealing ring:
- 98402
Benefits
- User-friendly installation and maintenance
- Complete ease in removing and cleaning
- Minimum steel thickness of 1.2 mm
- Fully pickled and passivated
- Extensively tested and classified in accordance with EN 1253-1 guidelines
Features
- Maximum flow rate with horizontal gully: 2.4 l/s
- Maximum flow rate with vertical gully: 2.4 l/s
- Material: 1.4404
- Silt basket included
- Weight: 1.1 kg
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 157 - vertical
- Fixed height or elescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: vertical
Description
- Stainless steel
- 0,6 litre capacity
- Material grade 1.4404 (316L)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4301 (304)
Silt basket
Suitable for
- ACO gully 142 and 157 - horizontal
- Fixed height or Telescopic
- ACO hygenic box channel
- Channel dimension
- Width Wo [mm]: 300, 400, 500, 600, 800
- Outlet øD [mm]: 142 or welded with ACO hygienic gully 157
- Direction of gully outlet: horizontal
Description
- Stainless steel
- 0,3 litre capacity
- Material grade 1.4404 (316L)
ACO fire resistant kit for gully 157/DN 75
Suitable for
- ACO hygienic gully 157
- Fixed height, vertica
- Telescopic, vertical
Description
- Fixed height,vertical
- Telescopic, vertical
- Made from 1.4404 (316) grade of stainless steel
- NBR
ACO fire resistant kit for gully 157/DN 110
Suitable for
- ACO hygienic gully 157
- Fixed height, vertica
- Telescopic, vertical
Description
- Fixed height,vertical
- Telescopic, vertical
- Made from 1.4404 (316) grade of stainless steel
- NBR
445845
Suitable for
- ACO gully 157
- Outlet DN 100
- Horizontal
Description
- Plastic
Odour trap
Suitable for
- ACO hygienic gully 157
- Telescopic
Description
- Height: 50 mm
- Material grade 1.4301 (304)
Odour trap
Suitable for
- ACO hygienic gully 157
- Telescopic
Description
- Height: 50 mm
- Material grade 1.4404 (316L)
Standard foul air trap support
Suitable for
- ACO hygienic gully 157
- Fixed height
- Telescopic
Description
NBR
Friction ring
Suitable for
- ACO hygienic gully 157
- Telescopic
Description
SBR
