Complete gullies Easyflow, DN 70/DN 100 – socket inclination 90°
Product benefits
- Retrofit clamping flange
- Optimum cleaning option
- Adjustable height thin bed seal
- Retrofit fire protection
Product information
- Gully bodies DN 70/DN 100
- Made of plastic (Polypropylen)
- Tested to DIN EN 1253-1
- With bracket/connecting rim
- With removable foul air trap
- Water trap depth: 50 mm
- With integrated seal to seal the flow gap between gully body and top section
- With plastic top section
- Frame dimensions: 150 x 150 mm
- Stainless steel grating
- Load class: K 3
- Slot width: 8 mm
- With protective cover added during installation
Fire protection
Fire resistance class R30 – R120 tested according abG Z-19.53.2442
Infobox
Note: Top sections with slot widths ≤ 8 mm are suitable for barefoot areas.
| Nominal width | øa | Item number |
|---|---|---|
| [mm] | ||
| DN 70 | 170 | 2710.55.77 |
| DN 100 | 170 | 2810.55.77 |
Extension
Suitable for
- All Easyflow floor drains
- Top sections
- Socket diameter 125 mm
- Walk-in with gully sockets
Description
- Made of plastic
- Suitable for taking plastic top sections and clamping flanges
- With lip seal
- For deeper installation of floor gullies
- Weight: 0.3 kg
- Rabattgruppe: 2
Thin-bed flange
Suitable for
- All Easyflow top sections
- 2500.77.11, 2700.77.11, 2700.77.12
- 5141.22.00, 5141.23.00, 5141.24.00, 5141.25.00, 5141.38.00, 5141.43.00, 5141.46.00
- Top section with socket diameter 125 mm
Description
- Plastic flange with sprayed-on fleece
- Suitable for taking liquid sealants added on-site using thin bed process
- Weight: 0.2 kg
- Rabattgruppe: 2
Thin-bed flange
Suitable for
- All Easyflow top sections
- 2500.77.11.
- 2700.77.11
- 2700.77.12
- Top sections with socket diameter: 125 mm
Description
- Flange made of plastic with sprayed on non-woven material
- Suitable for holding liquid seals applied on site using the thin bed method
- Weight: 0.2 kg
Compressed seal flange
Suitable for
- All Easyflow floor drains
Description
- Plastic flange
- Loose flange made from stainless steel
- Suitable for taking sealants foils added on-site for sealing layers for point drainage
- Weight: 0.6 kg
- Rabattgruppe: 2
Odour stop
Suitable for
- Floor gullies, Easyflow
- Standard
- DN 70/DN 100
Description
- Prevents unpleasant odours from the sewage system, irrespective of the water seal height
- Weight: 0.1 kg
- Rabattgruppe: 2

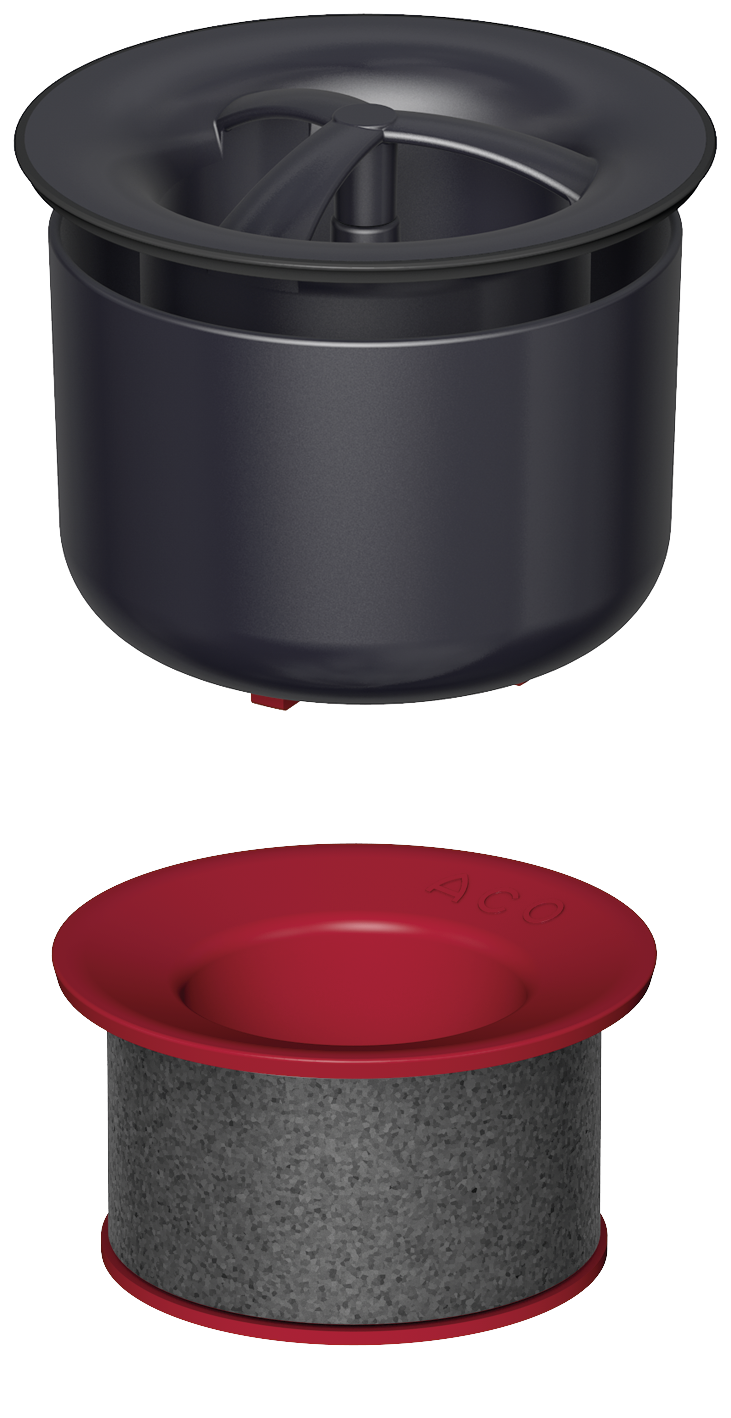

Fire protection set
Suitable for
- Floor gullies, Easyflow
- DN 70
- Socket inclination: 90°
Description
- Fire and smoke blocker for subsequent fire protection equipment of Easyflow gully bodies
- Discharge value of the gully body reduces by 0.5 l/s in use
- Water seal height 50 mm
- Consisting of
- Odour trap with heat shield
- Fire protection cartridge
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 0.3 kg
- Rabattgruppe: 2

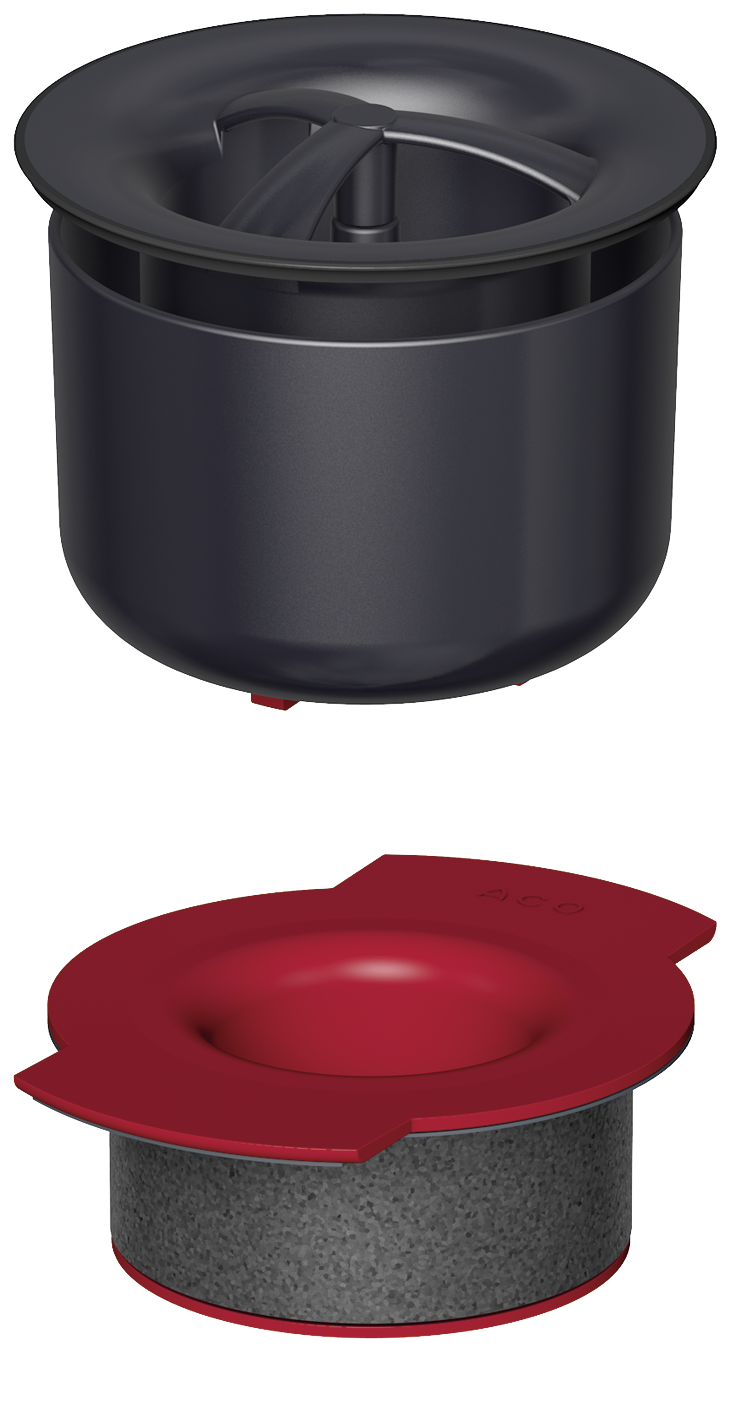

Fire protection set
Suitable for
- Floor gullies, Easyflow
- DN 100
- Socket inclination: 90°
Description
- Fire and smoke blocker for subsequent fire protection equipment of Easyflow gully bodies
- Discharge value of the gully body reduces by 0.5 l/s in use
- Water seal height 50 mm
- Consisting of
- Odour trap with heat shield
- Fire protection cartridge
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 0.3 kg
- Rabattgruppe: 2
Fit-in installation set
Suitable for
- Floor gullies, Easyflow
- Socket inclination: 90°
- DN 70
Description
- Non-combustible
- Building material class A1
- For mortar-free installation in core drills: Ø 225 mm
- Fit-in dimensions
- Ø: 215 mm
- Height: 139 mm
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 3 kg
- Rabattgruppe: 2
Fit-in installation set
Suitable for
- Floor gullies, Easyflow
- Socket inclination: 90°
- DN 100
Description
- Non-combustible
- Building material class A1
- For mortar-free installation in core drills: Ø 225 mm
- Fit-in dimensions
- Ø: 215 mm
- Height: 139 mm
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 3 kg
- Rabattgruppe: 2
| Nominal width | øa | Item number |
|---|---|---|
| [mm] | ||
| DN 70 | 170 | 2710.55.77 |
| DN 100 | 170 | 2810.55.77 |
Extension
Suitable for
- All Easyflow floor drains
- Top sections
- Socket diameter 125 mm
- Walk-in with gully sockets
Description
- Made of plastic
- Suitable for taking plastic top sections and clamping flanges
- With lip seal
- For deeper installation of floor gullies
- Weight: 0.3 kg
- Rabattgruppe: 2
Thin-bed flange
Suitable for
- All Easyflow top sections
- 2500.77.11, 2700.77.11, 2700.77.12
- 5141.22.00, 5141.23.00, 5141.24.00, 5141.25.00, 5141.38.00, 5141.43.00, 5141.46.00
- Top section with socket diameter 125 mm
Description
- Plastic flange with sprayed-on fleece
- Suitable for taking liquid sealants added on-site using thin bed process
- Weight: 0.2 kg
- Rabattgruppe: 2
Thin-bed flange
Suitable for
- All Easyflow top sections
- 2500.77.11.
- 2700.77.11
- 2700.77.12
- Top sections with socket diameter: 125 mm
Description
- Flange made of plastic with sprayed on non-woven material
- Suitable for holding liquid seals applied on site using the thin bed method
- Weight: 0.2 kg
Compressed seal flange
Suitable for
- All Easyflow floor drains
Description
- Plastic flange
- Loose flange made from stainless steel
- Suitable for taking sealants foils added on-site for sealing layers for point drainage
- Weight: 0.6 kg
- Rabattgruppe: 2
Odour stop
Suitable for
- Floor gullies, Easyflow
- Standard
- DN 70/DN 100
Description
- Prevents unpleasant odours from the sewage system, irrespective of the water seal height
- Weight: 0.1 kg
- Rabattgruppe: 2
Fire protection set
Suitable for
- Floor gullies, Easyflow
- DN 70
- Socket inclination: 90°
Description
- Fire and smoke blocker for subsequent fire protection equipment of Easyflow gully bodies
- Discharge value of the gully body reduces by 0.5 l/s in use
- Water seal height 50 mm
- Consisting of
- Odour trap with heat shield
- Fire protection cartridge
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 0.3 kg
- Rabattgruppe: 2
Fire protection set
Suitable for
- Floor gullies, Easyflow
- DN 100
- Socket inclination: 90°
Description
- Fire and smoke blocker for subsequent fire protection equipment of Easyflow gully bodies
- Discharge value of the gully body reduces by 0.5 l/s in use
- Water seal height 50 mm
- Consisting of
- Odour trap with heat shield
- Fire protection cartridge
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 0.3 kg
- Rabattgruppe: 2
Fit-in installation set
Suitable for
- Floor gullies, Easyflow
- Socket inclination: 90°
- DN 70
Description
- Non-combustible
- Building material class A1
- For mortar-free installation in core drills: Ø 225 mm
- Fit-in dimensions
- Ø: 215 mm
- Height: 139 mm
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 3 kg
- Rabattgruppe: 2
Fit-in installation set
Suitable for
- Floor gullies, Easyflow
- Socket inclination: 90°
- DN 100
Description
- Non-combustible
- Building material class A1
- For mortar-free installation in core drills: Ø 225 mm
- Fit-in dimensions
- Ø: 215 mm
- Height: 139 mm
- German approval
- AbZ. Z‑19.17‑2159
- abG: Z-19.53-2442
- Weight: 3 kg
- Rabattgruppe: 2
