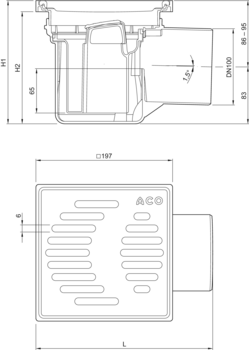

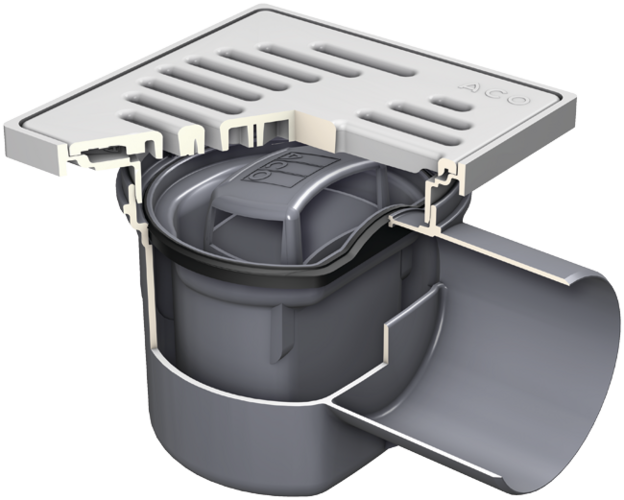

Basement gully DN 100, socket inclination: 1.5°


Product benefits

  • Ideal for renovation projects thanks to compact product size
  • Rotating top section for optimum adjustment to tile pattern
  • Optionally with extension piece for deeper installation

Product information

  • Basement gully tested to DIN EN 1253-1
  • Gully made of plastic (Polypropylen)
  • With removable foul air trap
    • Water trap depth: 60 mm
  • Revolving top section
    • Frame dimensions: 197 x 197 mm
  • Slot grating made of plastic
    • Load class: K 3
  • Flow rate: 1.6 l/s

Inlet socket DN 50

Suitable for
  • Junior basement gully with backflow stop
  • Basement gully DN 100
  • Sinkamat-K (free-standing)
  • LipuSmart-P
  • Muli-Mini
Description
  • Made of plastic
  • For lateral input option
  • For fitting on-site
  • Weight: 0.1 kg

Plastic grating

Suitable for
  • Junior cellar gulley
Description
  • 197 x 197 mm

Stainless steel grating Quadrato

Suitable for
  • Junior cellar gulley
Description
  • 188 x 188 mm

Extension made of plastic

Suitable for
  • Basement gully DN 100
  • Junior basement gully with backflow stop
Description
  • For deeper installation
  • Structure height: 130 mm
  • Weight: 0.2 kg
