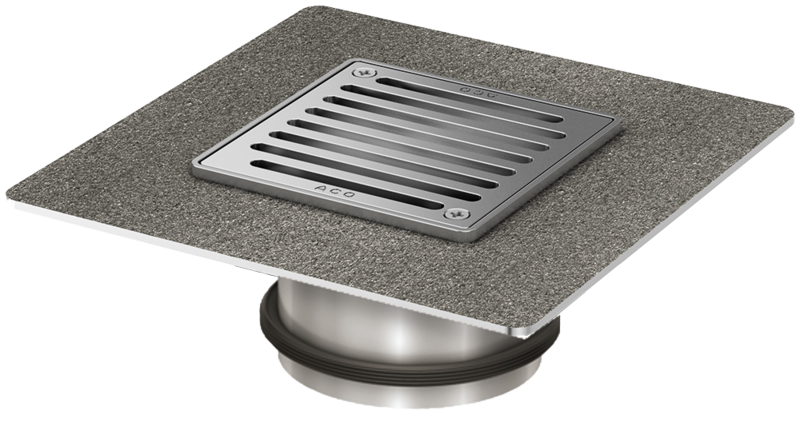

Top sections with sanded flange for thin bead sealing for floor coatings

Top Sections With Sanded Flange For Thin Bead Sealing For Floor Coatings 708510

	Version	Frame	Grating	Height- adjusta- bility H1min – H1max	Description	Weight	Item number		Downloads	Remember
	Version	[mm]	[mm]	[mm]	Description	[kg]	Item number		Downloads	Remember
	Stainless steel Combined ring	Stainless steel 148 x 148	Slot grating 140 x 140 K 3	25 – 65	Bolted	3.9	5141.65.89	1
	Stainless steel Combined ring	Stainless steel 148 x 148	Slot grating 140 x 140 L 15	25 – 65	Bolted Slip resistant: Class C	3.9	5141.65.92	1
	Stainless steel Combined ring	Stainless steel 150 x 150	Mesh grating 142 x 142 M 125	25 – 80	Placed loosely Non-slip	3.9	5141.65.93	1
	Stainless steel Combined ring	Stainless steel 150 x 150	Mesh grating 142 x 142 K 3	25 – 80	Placed loosely Non-slip	4.2	5141.66.89	1

	Version	Frame	Grating	Height- adjusta- bility H1min – H1max	Description	Weight	Item number

	Stainless steel Combined ring	Stainless steel 148 x 148 mm	Slot grating 140 x 140 mm K 3	25 – 65 mm	Bolted	3.9 kg	5141.65.89
	Stainless steel Combined ring	Stainless steel 148 x 148 mm	Slot grating 140 x 140 mm L 15	25 – 65 mm	Bolted Slip resistant: Class C	3.9 kg	5141.65.92
	Stainless steel Combined ring	Stainless steel 150 x 150 mm	Mesh grating 142 x 142 mm M 125	25 – 80 mm	Placed loosely Non-slip	3.9 kg	5141.65.93
	Stainless steel Combined ring	Stainless steel 150 x 150 mm	Mesh grating 142 x 142 mm K 3	25 – 80 mm	Placed loosely Non-slip	4.2 kg	5141.66.89

Extension

Suitable for

All Easyflow floor drains
Top sections
- Socket diameter 125 mm
Walk-in with gully sockets

Description

Made of plastic
Suitable for taking plastic top sections and clamping flanges
With lip seal
For deeper installation of floor gullies
Weight: 0.3 kg
Rabattgruppe: 2

Item no.
2040.00.00

Extension

Suitable for

All upper parts and top sections
- Socket diameter 125 mm

Description

Stainless steel, material grade 304
Extension to max. 110 mm
With sealing ring
Weight: 0.8 kg
Rabattgruppe: 3

Item no.
9579.27.31

Removable dirt trap

Suitable for

Top section
- 9579.40.81
- 9579.41.81
- 9579.40.87
- 9579.41.87
- 9579.40.89
- 9579.41.89
- 9579.40.86
- 9579.40.89
- 9579.40.92
- 9579.60.89
- 9579.60.91
- 9579.60.92
- 9579.60.93
- 9579.60.89
- 9579.61.91
- 9579.65.92
- 9579.65.93
- 9579.66.89
- 9579.65.89

Description

Made from stainless steel, material grade 304
Minimum surface structure above gully adhering flange 50mm
Slot size: 8 mm
Weight: 0.2 kg
Rabattgruppe: 3

Item no.
9579.03.00

Combined ring

Suitable for

Top sections diameter: 125 mm

Description

Seal ring
Removable O-ring for drainage via the seepage opening
Weight: 0.1 kg
Rabattgruppe: 3

Item no.
9579.90.00

Removable dirt trap

Suitable for

Top section
- 9579.80.89
- 9579.91.89
- 9579.80.22
- 9579.91.22
- 9579.80.27
- 9579.91.27
- 9579.80.30
- 9579.91.30
- 9579.80.99

Description

From stainless steel, material grade 304
Height: 45 mm
Weight: 0.2 kg
Rabattgruppe: 3

Item no.
9579.13.19

Removable dirt trap

Suitable for

Top section
- 9579.80.89
- 9579.91.89
- 9579.80.22
- 9579.91.22
- 9579.80.27
- 9579.91.27
- 9579.80.30
- 9579.91.30
- 9579.80.99
Compact gully bodies Variant-CR 142

Description

From stainless steel, material grade 304
Height: 30 mm
Weight: 0.2 kg
Rabattgruppe: 3

Item no.
9579.10.19
