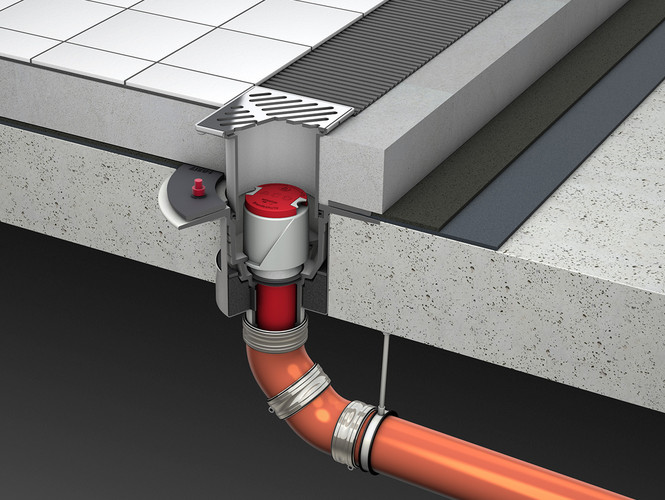

Gully body Passavant, DN 70 – socket inclination 90°

Product benefits

  • Building material class A1
  • Tested and practical fire protection solutions (German approval AbZ. Z-19.17-2144)
    • For Fit-in installation - minimum ceiling thickness: 100 mm
  • abG: Z-19.53-2419
  • Sound insulation tested to EN 4109/VDI 4100:2012
    • Noise level: LAFmax ≤ 22 dB(A)

Product information

Fire protection

Fire resistance class R30 – R120 tested according AbZ: Z-19.17-1887
Flange designRecessFlow rateSurfaceWeightItem

number
Remember
[mm][l/s][kg]
ImageLocation flange200 x 1702.0Painted3.95169.10.201
ImageLocation flange200 x 1702.0Coated in white epoxy3.95169.60.201
ImageAdhesive bonding flange360 x 1802.0Painted7.75170.10.201
ImageAdhesive bonding flange360 x 1802.0Coated in white epoxy7.75170.60.201
ImageMechanical clamping flange320 x 1802.0Painted8.65171.10.201
ImageMechanical clamping flange320 x 1802.0Coated in white epoxy8.65171.60.201
Recess (LxB)Flow rateWeightItem

number
ImageLocation flange200 x 170 mm2.0 l/sWithout lateral inlet3.9 kg5169.10.20
ImageAdhesive bonding flange360 x 180 mm2.0 l/sWithout lateral inlet7.7 kg5170.10.20
ImageMechanical clamping flange320 x 180 mm2.0 l/sWithout lateral inlet8.6 kg5171.10.20
ImageLocation flange200 x 170 mm2.0 l/sWithout lateral inlet3.9 kg5169.60.20
ImageAdhesive bonding flange360 x 180 mm2.0 l/sWithout lateral inlet7.7 kg5170.60.20
ImageMechanical clamping flange320 x 180 mm2.0 l/sWithout lateral inlet8.6 kg5171.60.20
Nominal widthøaøbøcItem
number
[mm][mm][mm]
DN 7021081605169.10.20
DN 7021081605169.60.20
DN 7037081605170.10.20
DN 7037081605170.60.20
DN 7031081605171.10.20
DN 7031081605171.60.20

Upper part

Suitable for
  • All Passavant gully bodies
    • DN 50 – DN 100
Description
  • Made of cast iron
  • Socket diameter: 125 mm
  • With seal ring
  • With compression seal flange
  • Height-adjustability: 50 – 104 mm
  • With paint coat
  • Weight: 7.8 kg
  • Rabattgruppe: 1

Upper part

Suitable for
  • All Passavant gully bodies
    • DN 50 – DN 100
Description
  • Made of cast iron
  • Socket diameter: 125 mm
  • With seal ring
  • With compression seal flange
  • Height-adjustability: 50 – 104 mm
  • White epoxidized
  • Weight: 7.7 kg
  • Rabattgruppe: 1

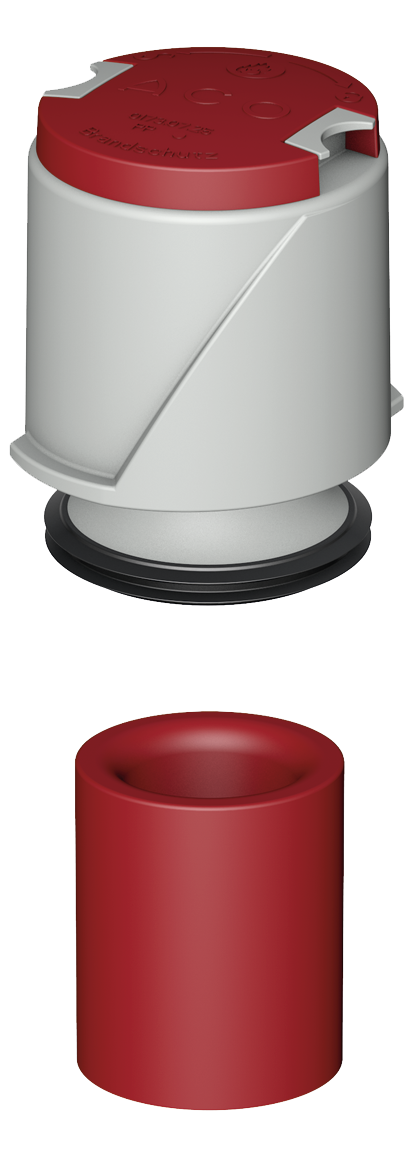

Fire protection set

Suitable for
  • Passavant gully bodies
  • Socket inclination: 90°
  • DN 70
Description
  • Fire and smoke blocker for subsequent fire protection equipment of gully bodies
  • Consisting of
    • Odour seal with heat shield
    • Fire protection cartridge
  • German approval: AbZ. Z‑19.17‑2144
  • Weight: 0.4 kg
  • Rabattgruppe: 1

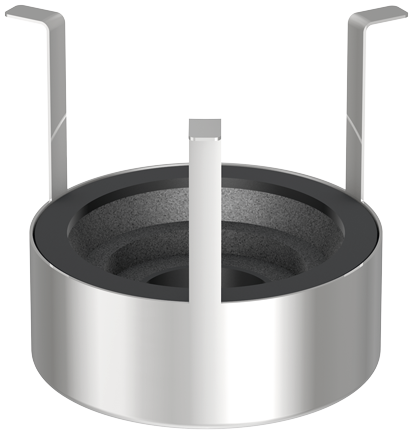

Fit-In installation set

Suitable for
  • Passavant gully bodies
  • Socket inclination: 90°
  • DN 70
Description
  • Non-combustible
    • Building material class A1
  • For mortar-free installation in core drills: Ø 160 mm
  • Fit-in dimensions
    • Diameter: 159 mm
    • Height: 149 mm
  • German approval:
    • AbZ. Z‑19.17‑2144
    • aBG: Z-19.53-2419
  • Weight: 1.2 kg
  • Rabattgruppe: 1

Extension

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Stainless steel, material grade 304
  • Extension to max. 110 mm
  • With sealing ring
  • Weight: 0.9 kg
  • Rabattgruppe: 1

Connecting piece

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Plastic
  • Height-adjustability: 35 – 90
  • With seal ring
  • Weight: 0.3 kg
  • Rabattgruppe: 1

Adapter with inlet

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Plastic
  • With seal
  • With lateral inlet
  • DN 50
  • Weight: 0.4 kg
  • Rabattgruppe: 1

Odour trap

Suitable for
  • All Passavant gully bodies
    • DN 50 – DN 100
Description
  • Consisting of:
    • Bell and pneumatic pipe
  • Weight: 0.2 kg
  • Rabattgruppe: 1

Odour and smoke stop

Suitable for
  • Foul air trap
  • Fire protection sets
Description
  • Made of rubber
  • Only use with foul air trap or fire protection set
  • For ACO Passavant floor gully: Flow reduction to 0.3 l/s
  • Weight: 0.1 kg
  • Rabattgruppe: 1

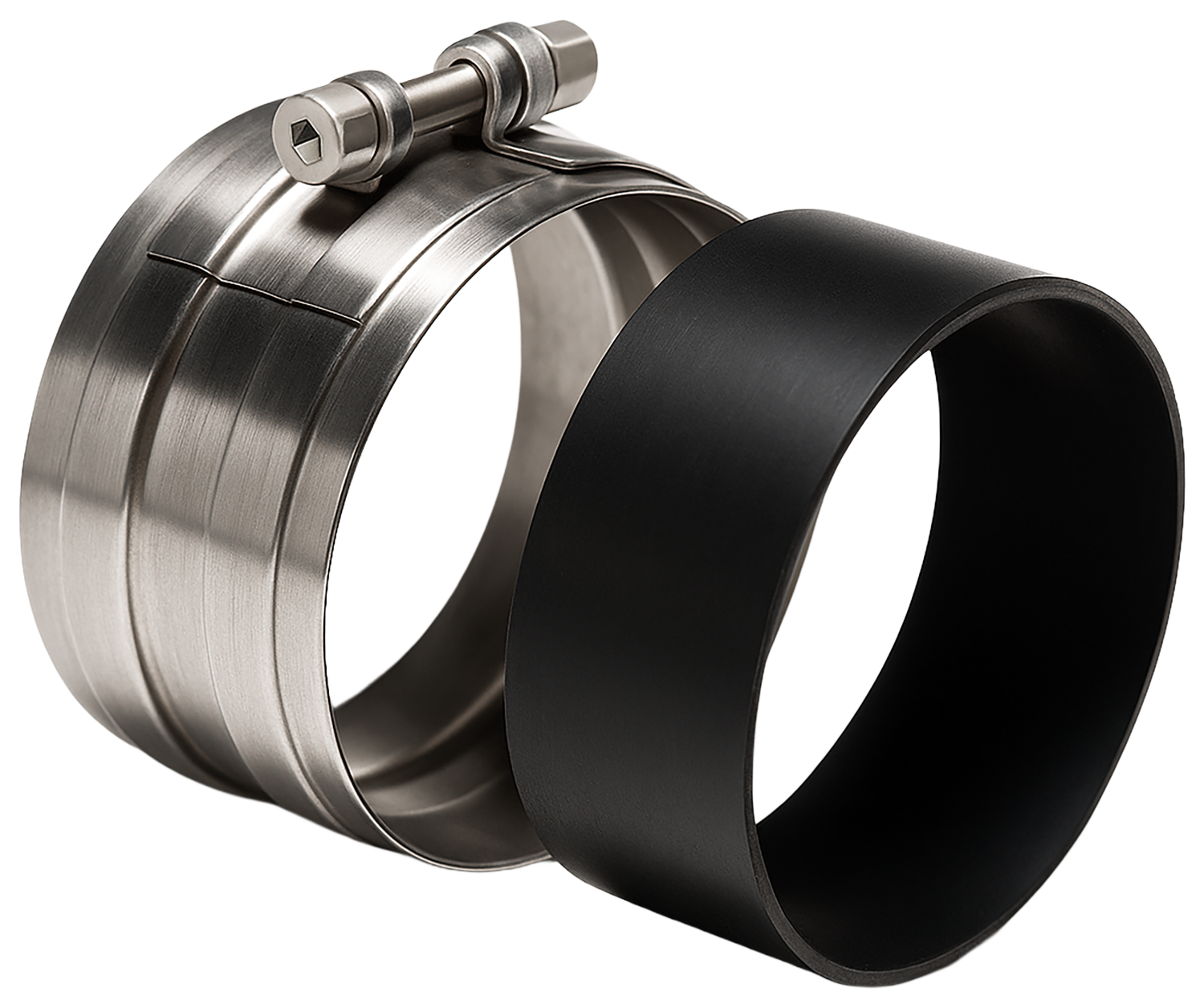

Hose section DN 70/DN 80

Suitable for
  • Gully bodies Passavant
    • DN 70
Description
  • To connect DN 70 gully bodies to DN 80 SML-pipe
  • Weight: 0.1 kg
  • Rabattgruppe: 1
