Gully body Passavant, DN 50 – socket inclination 90°
Product benefits
- Building material class A1
- Tested and practical fire protection solutions (German approval AbZ. Z-19.17-2144)
- For Fit-in installation - minimum ceiling thickness: 100 mm
- abG: Z-19.53-2419
- Sound insulation tested to EN 4109/VDI 4100:2012
- Noise level: LAFmax ≤ 22 dB(A)
Product information
- Cast iron, material EN-GJL-200
- Tested to EN 1253-1
- Optional surface:
- Epoxidized white (easy-to-clean coating)
- With paint coat (transport protection)
- Connection to all standard sealing systems
- Pipe connection SML according to: EN 877
- Core drill: Ø 160 mm
- Selection of top sections
Fire protection
Fire resistance class R30 – R120 tested according AbZ: Z-19.17-1887

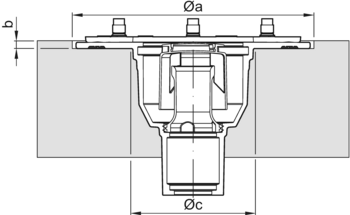

| Nominal width | øa | øb | øc | Item number |
|---|---|---|---|---|
| [mm] | [mm] | [mm] | ||
| DN 50 | 210 | 8 | 160 | 5149.10.20 |
| DN 50 | 210 | 8 | 160 | 5149.60.20 |
| DN 50 | 370 | 8 | 160 | 5150.10.20 |
| DN 50 | 370 | 8 | 160 | 5150.60.20 |
| DN 50 | 310 | 8 | 160 | 5151.10.20 |
| DN 50 | 310 | 8 | 160 | 5151.60.20 |
Top sections standard for gully body Passavant
Top sections for compound sealing for gully body Passavant
Top sections with sanded flange for thin bead sealing for floor coatings
Top sections with factory coatedem flange for gully body Passavant
Upper part
Suitable for
- All Passavant gully bodies
- DN 50 – DN 100
Description
- Made of cast iron
- Socket diameter: 125 mm
- With seal ring
- With compression seal flange
- Height-adjustability: 50 – 104 mm
- With paint coat
- Weight: 7.8 kg
- Rabattgruppe: 1
Upper part
Suitable for
- All Passavant gully bodies
- DN 50 – DN 100
Description
- Made of cast iron
- Socket diameter: 125 mm
- With seal ring
- With compression seal flange
- Height-adjustability: 50 – 104 mm
- White epoxidized
- Weight: 7.7 kg
- Rabattgruppe: 1

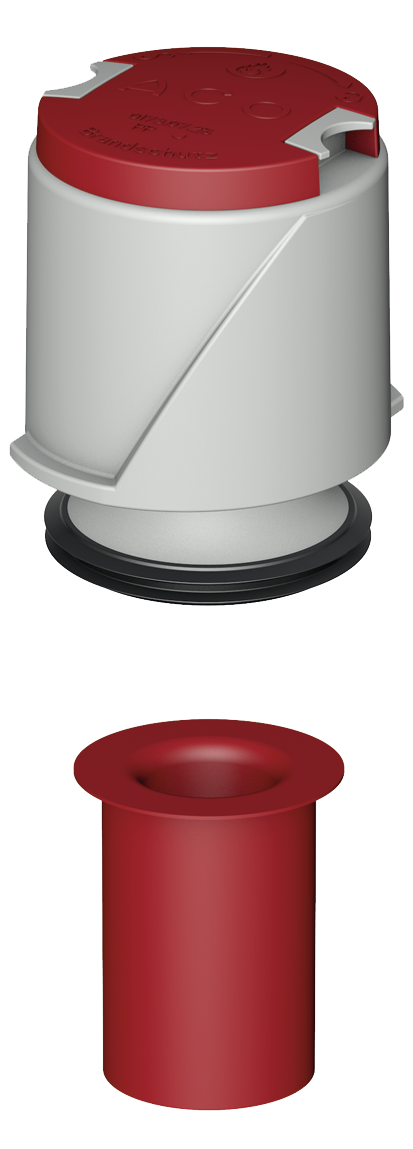

Fire protection set
Suitable for
- Passavant gully bodies
- Socket inclination: 90°
- DN 50
Description
- Fire and smoke blocker for subsequent fire protection equipment of gully bodies
- Consisting of
- Odour seal with heat shield
- Fire protection cartridge
- German approval: AbZ. Z‑19.17‑2144
- Weight: 0.4 kg
- Rabattgruppe: 1

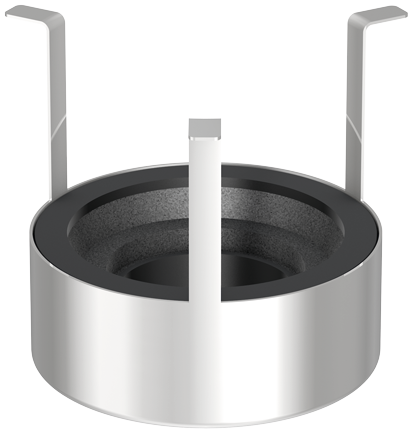

Fit-In installation set
Suitable for
- Passavant gully bodies
- Socket inclination: 90°
- DN 50
Description
- Non-combustible
- Building material class A1
- For mortar-free installation in core drills: Ø 160 mm
- Fit-in dimensions
- Diameter: 159 mm
- Height: 149 mm
- German approval:
- AbZ. Z‑19.17‑2144
- aBG: Z-19.53-2419
- Weight: 1.2 kg
- Rabattgruppe: 1
Extension
Suitable for
- All upper parts and top sections
- Socket diameter 125 mm
Description
- Stainless steel, material grade 304
- Extension to max. 110 mm
- With sealing ring
- Weight: 0.9 kg
- Rabattgruppe: 1
Connecting piece
Suitable for
- All upper parts and top sections
- Socket diameter 125 mm
Description
- Plastic
- Height-adjustability: 35 – 90
- With seal ring
- Weight: 0.3 kg
- Rabattgruppe: 1
Adapter with inlet
Suitable for
- All upper parts and top sections
- Socket diameter 125 mm
Description
- Plastic
- With seal
- With lateral inlet
- DN 50
- Weight: 0.4 kg
- Rabattgruppe: 1
Odour trap
Suitable for
- All Passavant gully bodies
- DN 50 – DN 100
Description
- Consisting of:
- Bell and pneumatic pipe
- Weight: 0.2 kg
- Rabattgruppe: 1
Odour and smoke stop
Suitable for
- Foul air trap
- Fire protection sets
Description
- Made of rubber
- Only use with foul air trap or fire protection set
- For ACO Passavant floor gully: Flow reduction to 0.3 l/s
- Weight: 0.1 kg
- Rabattgruppe: 1

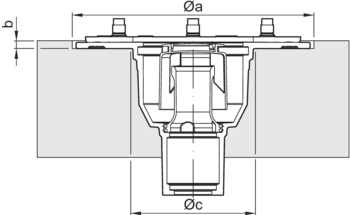

| Nominal width | øa | øb | øc | Item number |
|---|---|---|---|---|
