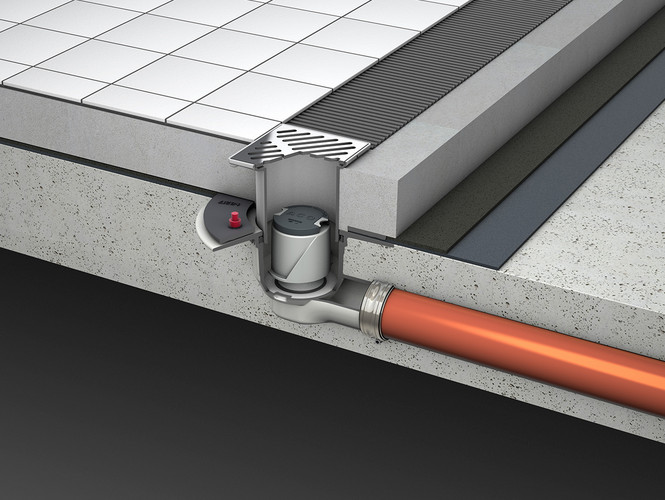

Gully body Passavant, DN 100 – socket inclination 1,5°

Gully Bodies Socket Inclination 1 271203

Product benefits

Building material class: A1
Tested and practical fire protection solutions
Sound insulation tested to EN 4109/VDI 4100:2012
- Noise level: L_AFmax ≤ 22 dB(A)

Product information

Cast iron, material EN-GJL-200
Tested to EN 1253-1
Optional surface:
- Epoxidized white (easy-to-clean coating)
- With paint coat (transport protection)
Connection to all standard sealing systems
Pipe connection SML according to: EN 877
Selection of top sections

	Flange design	Recess	Flow rate	Surface	Weight	Item number		Downloads	Remember
	Flange design	[mm]	[l/s]	Surface	[kg]	Item number		Downloads	Remember
	Location flange	360 x 170	1.6	Painted	5.2	5569.20.20	1
	Location flange	360 x 170	1.6	Coated in white epoxy	5.2	5569.70.20	1
	Adhesive bonding flange	360 x 180	1.6	Painted	8.8	5570.30.20	1
	Adhesive bonding flange	360 x 180	1.6	Coated in white epoxy	8.8	5570.80.20	1
	Mechanical clamping flange	360 x 180	1.6	Painted	9.4	5571.40.20	1
	Mechanical clamping flange	360 x 180	1.6	Coated in white epoxy	9.4	5571.90.20	1

		Recess (LxB)	Flow rate		Weight	Item number

	Location flange	360 x 170 mm	1.6 l/s	Without lateral inlet	5.2 kg	5569.20.20
	Adhesive bonding flange	360 x 180 mm	1.6 l/s	Without lateral inlet	8.8 kg	5570.30.20
	Mechanical clamping flange	360 x 180 mm	1.6 l/s	With lateral inlet	9.4 kg	5571.40.20

	Location flange	360 x 170 mm	1.6 l/s	Without lateral inlet	5.2 kg	5569.70.20
	Adhesive bonding flange	360 x 180 mm	1.6 l/s	Without lateral inlet	8.8 kg	5570.80.20
	Mechanical clamping flange	360 x 180 mm	1.6 l/s	With lateral inlet	9.4 kg	5571.90.20

Top sections standard for gully body Passavant

Top sections standard for gully body Passavant

Top sections for compound sealing for gully body Passavant

Top sections for compound sealing for gully body Passavant

Top sections with sanded flange for thin bead sealing for floor coatings

Top sections with sanded flange for thin bead sealing for floor coatings

Top sections with factory coatedem flange for gully body Passavant

Top sections with factory coatedem flange for gully body Passavant

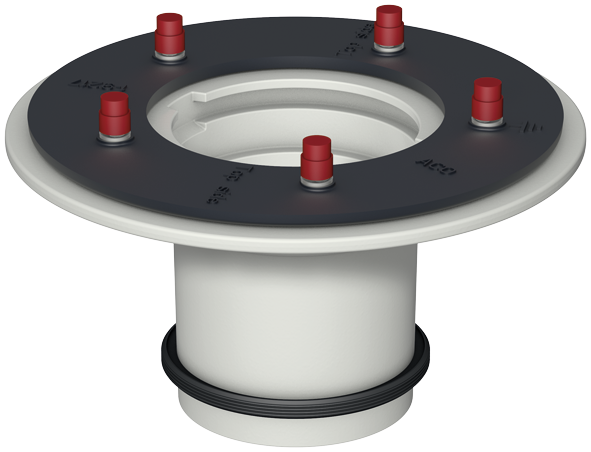

Upper part

Suitable for

All Passavant gully bodies
- DN 50 – DN 100

Description

Made of cast iron
Socket diameter: 125 mm
With seal ring
With compression seal flange
Height-adjustability: 50 – 104 mm
With paint coat
Weight: 7.8 kg
Rabattgruppe: 1

Item no.
5145.52.50

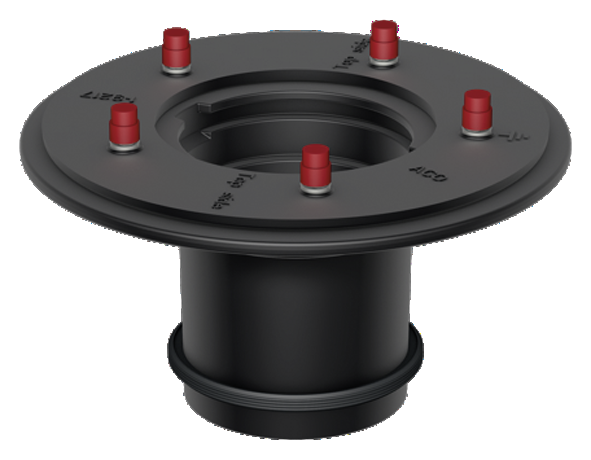

Upper part

Suitable for

All Passavant gully bodies
- DN 50 – DN 100

Description

Made of cast iron
Socket diameter: 125 mm
With seal ring
With compression seal flange
Height-adjustability: 50 – 104 mm
White epoxidized
Weight: 7.7 kg
Rabattgruppe: 1

Item no.
5145.57.50

Extension

Suitable for

All upper parts and top sections
- Socket diameter 125 mm

Description

Stainless steel, material grade 304
Extension to max. 110 mm
With sealing ring
Weight: 0.9 kg
Rabattgruppe: 1

Item no.
5145.50.50

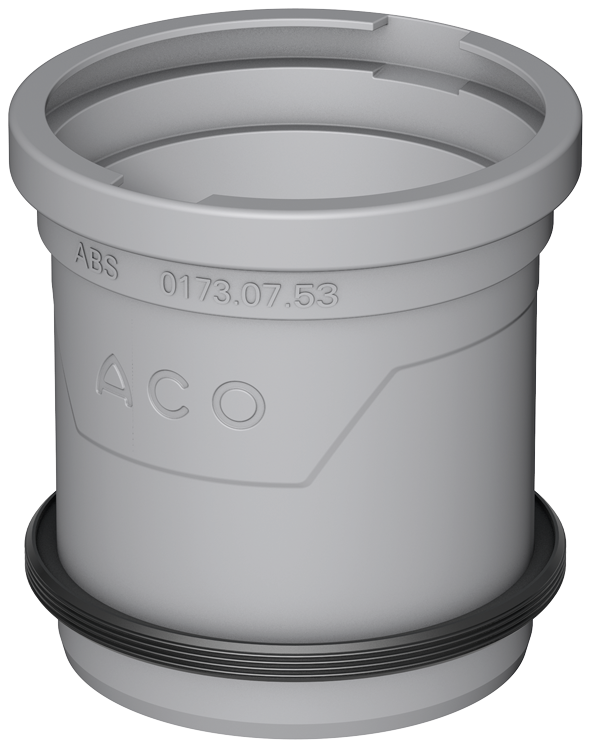

Connecting piece

Suitable for

All upper parts and top sections
- Socket diameter 125 mm

Description

Plastic
Height-adjustability: 35 – 90
With seal ring
Weight: 0.3 kg
Rabattgruppe: 1

Item no.
5171.83.20

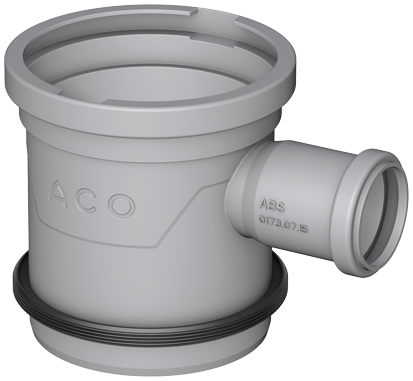

Adapter with inlet

Suitable for

All upper parts and top sections
- Socket diameter 125 mm

Description

Plastic
With seal
With lateral inlet
DN 50
Weight: 0.4 kg
Rabattgruppe: 1

Item no.
5171.84.20

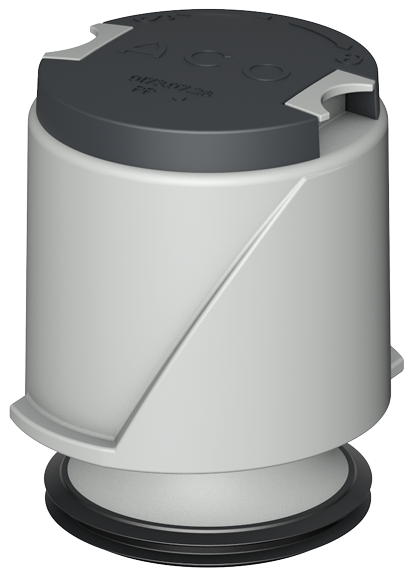

Odour trap

Suitable for

All Passavant gully bodies
- DN 50 – DN 100

Description

Consisting of:
- Bell and pneumatic pipe
Weight: 0.2 kg
Rabattgruppe: 1

Item no.
5128.10.55

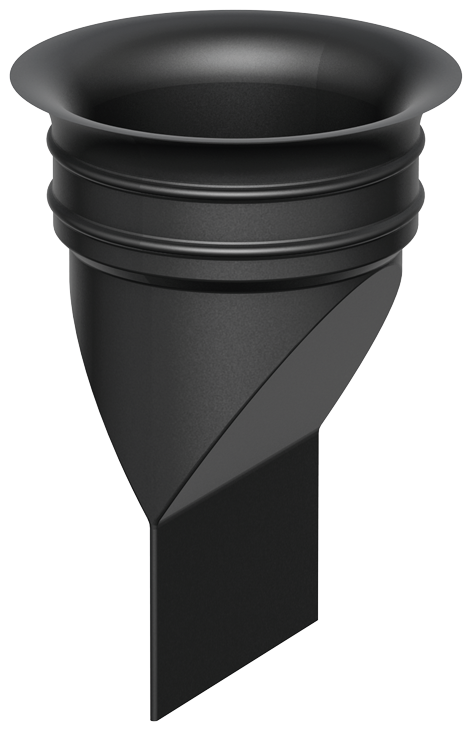

Odour and smoke stop

Suitable for

Foul air trap
Fire protection sets

Description

Made of rubber
Only use with foul air trap or fire protection set
For ACO Passavant floor gully: Flow reduction to 0.3 l/s
Weight: 0.1 kg
Rabattgruppe: 1

Item no.
5128.10.75
