Top Sections With Sanded Flange For Thin Bead Sealing For Floor Coatings 708510

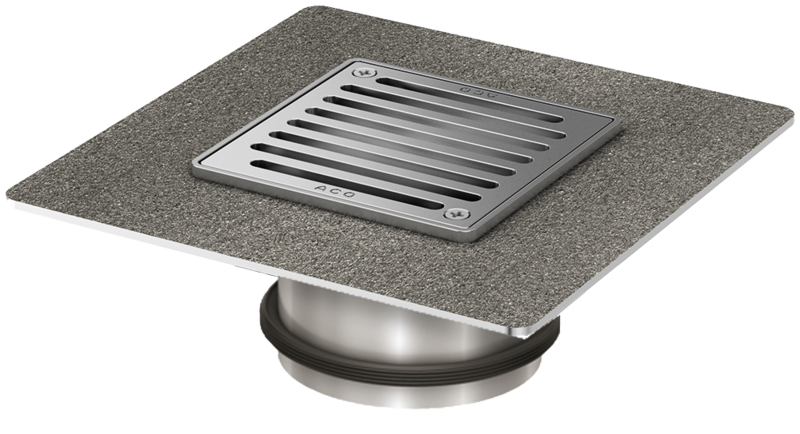

Top sections with sanded flange for thin bead sealing for floor coatings

Standard type

VersionFrameGratingHeight-

adjusta-

bility

H1min – H1max		DescriptionWeightItem

number		Remember
[mm][mm][mm][kg]
  • Stainless steel
  • Combined ring
  • Stainless steel
  • 148 x 148
  • Slot grating
  • 140 x 140
  • K 3
25 – 65
  • Bolted
3.95141.65.891
  • Stainless steel
  • Combined ring
  • Stainless steel
  • 148 x 148
  • Slot grating
  • 140 x 140
  • K 3
25 – 65
  • Bolted
  • Slip resistant: Class C
3.95141.66.891
  • Stainless steel
  • Sealing ring
  • Stainless steel
  • 150 x 150
  • Mesh grating
  • 142 x 142
  • M 125
25 – 80
  • Placed loosely
  • Non-slip
3.95141.65.931
  • Stainless steel
  • Combined ring
  • Stainless steel
  • 150 x 150
  • Mesh grating
  • 142 x 142
  • L 15
25 – 80
  • Placed loosely
  • Non-slip
3.95141.65.921
VersionFrameGratingHeight-

adjusta-

bility

H1min – H1max		DescriptionWeightItem

number
  • Stainless steel
  • Combined ring
  • Stainless steel
  • 148 x 148 mm
  • Slot grating
  • 140 x 140 mm
  • K 3
25 – 65 mm
  • Bolted
3.9 kg5141.65.89
  • Stainless steel
  • Combined ring
  • Stainless steel
  • 148 x 148 mm
  • Slot grating
  • 140 x 140 mm
  • K 3
25 – 65 mm
  • Bolted
  • Slip resistant: Class C
3.9 kg5141.66.89
  • Stainless steel
  • Sealing ring
  • Stainless steel
  • 150 x 150 mm
  • Mesh grating
  • 142 x 142 mm
  • M 125
25 – 80 mm
  • Placed loosely
  • Non-slip
3.9 kg5141.65.93
  • Stainless steel
  • Combined ring
  • Stainless steel
  • 150 x 150 mm
  • Mesh grating
  • 142 x 142 mm
  • L 15
25 – 80 mm
  • Placed loosely
  • Non-slip
3.9 kg5141.65.92

Extension

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Stainless steel, material grade 304
  • Extension to max. 110 mm
  • With sealing ring
  • Weight: 0.9 kg
  • Rabattgruppe: 1
Item no.
5145.50.50

Connecting piece

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Plastic
  • Height-adjustability: 35 – 90
  • With seal ring
  • Weight: 0.3 kg
  • Rabattgruppe: 1
Item no.
5171.83.20

Adapter with inlet

Suitable for
  • All upper parts and top sections
    • Socket diameter 125 mm
Description
  • Plastic
  • With seal
  • With lateral inlet
  • DN 50
  • Weight: 0.4 kg
  • Rabattgruppe: 1
Item no.
5171.84.20

Removable dirt trap

Suitable for
  • Top sections
    • 5141.71.xx
    • 5141.81.xx
    • 5141.86.xx
    • 5141.87.xx
    • 5141.89.xx
    • 5141.91.xx
    • 5141.92.xx
    • 5141.93.xx
    • 5141.97.xx
    • 5194.10.00
    • 9406.89.xx
    • 9406.92.xx
    • 9406.93.xx
  • Spin flat roof gullies
    • DN 70
  • Green roof and multi-storey parking deck gully tops
Description
  • Made from stainless steel, material grade 304
  • Minimum surface structure above gully adhering flange 50mm
  • Slot size: 8 mm
  • Weight: 0.2 kg
  • Rabattgruppe: 1
Item no.
7000.03.00

Removable dirt trap

Suitable for
  • Top sections
    • 5141.71.xx
    • 5141.81.xx
    • 5141.86.xx
    • 5141.87.xx
    • 5141.89.xx
    • 5141.91.xx
    • 5141.92.xx
    • 5141.93.xx
    • 5141.97.xx
    • 5194.10.00
    • 9406.89.xx
    • 9406.92.xx
    • 9406.93.xx
  • Spin flat roof gullies
    • DN 70
  • Green roof and multi-storey parking deck gully tops
Description
  • Made from stainless steel, material grade 304
  • Minimum surface structure above gully adhering flange 50mm
  • Slot size: 6 mm according to EC Directive no. 1774/2002
  • Weight: 0.2 kg
  • Rabattgruppe: 1
Item no.
7000.03.19

Infiltration ring

Suitable for
  • All Passavant top sections
    • DN 50 – DN 100
Description
  • As an infiltration ring between the top section and body
  • Ring colour: grey
  • Weight: 0.1 kg
  • Rabattgruppe: 1
Item no.
5150.81.45

Sealing ring

Suitable for
  • All Passavant top sections
    • DN 50 – DN 100
Description
  • As a seal between the top section and body
  • Ring colour: black
  • Weight: 0.1 kg
  • Rabattgruppe: 1
Item no.
5150.90.20
