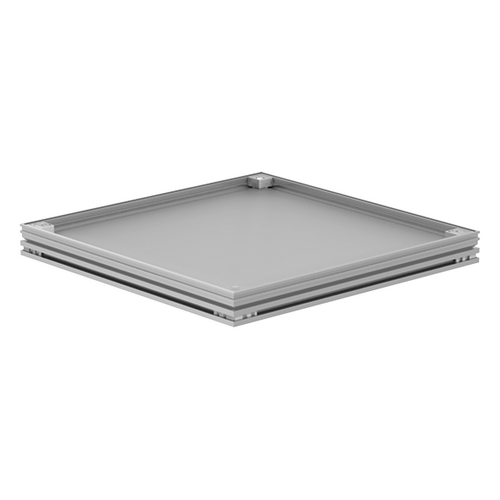

ACO Access Cover UNIFACE SMART AL

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Space for final floor	Class	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	[mm]	Class	Material	Item number	Downloads	Remember
200 x 200	300 x 300	50	15	L 15	Aluminium	415157
300 x 300	400 x 400	50	15	L 15	Aluminium	415158
400 x 400	500 x 500	50	15	L 15	Aluminium	415159
450 x 450	550 x 550	50	15	L 15	Aluminium	445699
500 x 500	600 x 600	50	15	L 15	Aluminium	415160
600 x 450	550 x 700	50	15	L 15	Aluminium	445700
600 x 600	700 x 700	50	15	L 15	Aluminium	415161

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Space for final floor	Class	Material	Item number
200 x 200 mm	300 x 300 mm	50 mm	15 mm	L 15	Aluminium	415157
300 x 300 mm	400 x 400 mm	50 mm	15 mm	L 15	Aluminium	415158
400 x 400 mm	500 x 500 mm	50 mm	15 mm	L 15	Aluminium	415159
450 x 450 mm	550 x 550 mm	50 mm	15 mm	L 15	Aluminium	445699
500 x 500 mm	600 x 600 mm	50 mm	15 mm	L 15	Aluminium	415160
600 x 450 mm	550 x 700 mm	50 mm	15 mm	L 15	Aluminium	445700
600 x 600 mm	700 x 700 mm	50 mm	15 mm	L 15	Aluminium	415161
