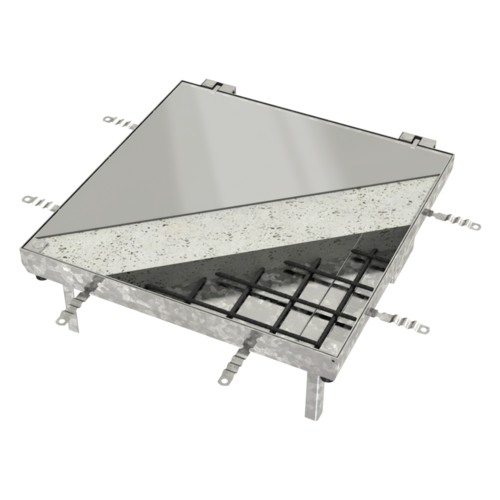

ACO Access Cover UNIFACE ASSIST GS/SS

Product information

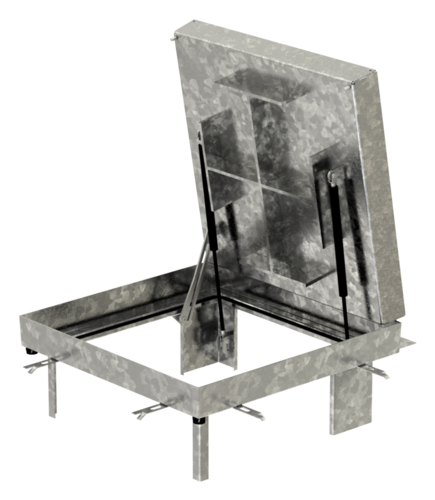

Option with opening assistance
One man operation, hinges, gas springs (installed afterwards from safety reasons)
Locked by two bolts
Highest grade of stainless steel (1.4571) available on request

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Weight	Material	Item number	Downloads	Remember
[mm]	Frame dimension (C x D)	[mm]	[mm]	[mm]	Class	[kg]	Material	Item number	Downloads	Remember
800 x 800	975 x 942 mm	89	70	15	L 15	54.5	Galvanised steel	406540
1000 x 800	975 x 1142 mm	89	70	15	L 15	58.4	Galvanised steel	414951
1000 x 1000	1175 x 1142 mm	89	70	15	L 15	68	Galvanised steel	406541
450 x 450	625 x 592 mm	89	70	15	M 125	29.4	Galvanised steel	445684
500 x 500	675 x 642 mm	89	70	15	M 125	31.5	Galvanised steel	406538
600 x 450	625 x 742 mm	89	70	15	M 125	32.9	Galvanised steel	445686
600 x 600	775 x 742 mm	89	70	15	M 125	38	Galvanised steel	406539
750 x 600	775 x 892 mm	89	70	15	M 125	43.2	Galvanised steel	445688
750 x 750	925 x 892 mm	89	70	15	L 15	51.9	Galvanised steel	445754
800 x 600	775 x 942 mm	89	70	15	M 125	44.5	Galvanised steel	408713
1042 x 775	775 x 1042 mm	89	70	15	M 125	47.1	Galvanised steel	445690
400 x 400	575 x 542 mm	89	70	15	N 250	26.5	Galvanised steel	406537
500 x 500	675 x 642 mm	89	110	15	N 250	31.5	Galvanised steel	406542
600 x 600	775 x 742 mm	89	110	15	N 250	38	Galvanised steel	406543
800 x 800	975 x 942 mm	89	110	15	N 250	54	Galvanised steel	406544
1075 x 1042	1075 x 1042 mm	89	110	15	N 250	59.3	Galvanised steel	445692
800 x 800	975 x 942 mm	89	70		L 15	54.5	AISI 304	406532
1000 x 800	975 x 1142 mm	89	70		L 15	58.4	AISI 304	414950
1000 x 1000	1175 x 1142 mm	89	70		L 15	68	AISI 304	406533
450 x 450	625 x 642 mm	89	70		M 125	29.4	AISI 304	445685
500 x 500	675 x 642 mm	89	70		M 125	31.5	AISI 304	406530
600 x 450	625 mm x 742 cm	89	70		M 125	32.9	AISI 304	445687
600 x 600	775 x 742 mm	89	70		M 125	38	AISI 304	406531
750 x 600	775 mm x 892 cm	89	70		M 125	43.2	AISI 304	445689
750 x 750	925 mm x 892 cm	89	70		L 15	51.9	AISI 304	445755
800 x 600	775 x 942 mm	89	70		M 125	44.5	AISI 304	408712
900 x 600	775 mm x 1042 cm	89	70		M 125	47.1	AISI 304	445691
1000 x 600	775 mm x 1142 cm	89	70		M 125	49.7	AISI 304	445695
400 x 400	575 x 542 mm	89	70		N 250	26.5	AISI 304	406529
500 x 500	675 x 642 mm	89	110		N 250	31.5	AISI 304	406534
600 x 600	775 x 742 mm	89	110		N 250	38	AISI 304	406535
800 x 800	975 x 942 mm	89	110		N 250	54	AISI 304	406536
900 x 900	1075 mm x 1042 cm	89	110		N 250	59.3	AISI 304	445693

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Weight	Material	Item number
800 x 800 mm	975 x 942 mm	89 mm	70 mm	15 mm	L 15	54.5 kg	Galvanised steel	406540
1000 x 800 mm	975 x 1142 mm	89 mm	70 mm	15 mm	L 15	58.4 kg	Galvanised steel	414951
1000 x 1000 mm	1175 x 1142 mm	89 mm	70 mm	15 mm	L 15	68 kg	Galvanised steel	406541
450 x 450 mm	625 x 592 mm	89 mm	70 mm	15 mm	M 125	29.4 kg	Galvanised steel	445684
500 x 500 mm	675 x 642 mm	89 mm	70 mm	15 mm	M 125	31.5 kg	Galvanised steel	406538
600 x 450 mm	625 x 742 mm	89 mm	70 mm	15 mm	M 125	32.9 kg	Galvanised steel	445686
600 x 600 mm	775 x 742 mm	89 mm	70 mm	15 mm	M 125	38 kg	Galvanised steel	406539
750 x 600 mm	775 x 892 mm	89 mm	70 mm	15 mm	M 125	43.2 kg	Galvanised steel	445688
750 x 750 mm	925 x 892 mm	89 mm	70 mm	15 mm	L 15	51.9 kg	Galvanised steel	445754
800 x 600 mm	775 x 942 mm	89 mm	70 mm	15 mm	M 125	44.5 kg	Galvanised steel	408713
1042 x 775 mm	775 x 1042 mm	89 mm	70 mm	15 mm	M 125	47.1 kg	Galvanised steel	445690
400 x 400 mm	575 x 542 mm	89 mm	70 mm	15 mm	N 250	26.5 kg	Galvanised steel	406537
500 x 500 mm	675 x 642 mm	89 mm	110 mm	15 mm	N 250	31.5 kg	Galvanised steel	406542
600 x 600 mm	775 x 742 mm	89 mm	110 mm	15 mm	N 250	38 kg	Galvanised steel	406543
800 x 800 mm	975 x 942 mm	89 mm	110 mm	15 mm	N 250	54 kg	Galvanised steel	406544
1075 x 1042 mm	1075 x 1042 mm	89 mm	110 mm	15 mm	N 250	59.3 kg	Galvanised steel	445692
800 x 800 mm	975 x 942 mm	89 mm	70 mm		L 15	54.5 kg	AISI 304	406532
1000 x 800 mm	975 x 1142 mm	89 mm	70 mm		L 15	58.4 kg	AISI 304	414950
1000 x 1000 mm	1175 x 1142 mm	89 mm	70 mm		L 15	68 kg	AISI 304	406533
450 x 450 mm	625 x 642 mm	89 mm	70 mm		M 125	29.4 kg	AISI 304	445685
500 x 500 mm	675 x 642 mm	89 mm	70 mm		M 125	31.5 kg	AISI 304	406530
600 x 450 mm	625 mm x 742 cm	89 mm	70 mm		M 125	32.9 kg	AISI 304	445687
600 x 600 mm	775 x 742 mm	89 mm	70 mm		M 125	38 kg	AISI 304	406531
750 x 600 mm	775 mm x 892 cm	89 mm	70 mm		M 125	43.2 kg	AISI 304	445689
750 x 750 mm	925 mm x 892 cm	89 mm	70 mm		L 15	51.9 kg	AISI 304	445755
800 x 600 mm	775 x 942 mm	89 mm	70 mm		M 125	44.5 kg	AISI 304	408712
900 x 600 mm	775 mm x 1042 cm	89 mm	70 mm		M 125	47.1 kg	AISI 304	445691
1000 x 600 mm	775 mm x 1142 cm	89 mm	70 mm		M 125	49.7 kg	AISI 304	445695
400 x 400 mm	575 x 542 mm	89 mm	70 mm		N 250	26.5 kg	AISI 304	406529
500 x 500 mm	675 x 642 mm	89 mm	110 mm		N 250	31.5 kg	AISI 304	406534
600 x 600 mm	775 x 742 mm	89 mm	110 mm		N 250	38 kg	AISI 304	406535
800 x 800 mm	975 x 942 mm	89 mm	110 mm		N 250	54 kg	AISI 304	406536
900 x 900 mm	1075 mm x 1042 cm	89 mm	110 mm		N 250	59.3 kg	AISI 304	445693
