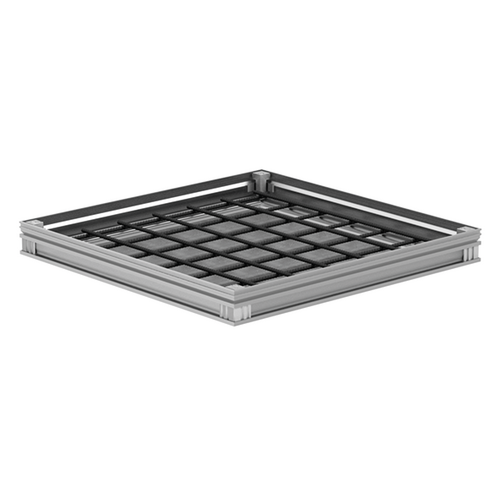

ACO Access Cover UNIFACE AL shallow

Product information

For an application in floor screed (50 mm)
No impact on structure slab
Weight of installed cover reduced to 2/3 compare to standard AL cover
Load capacity L 15 for cover fully filled with concrete
Load capacity K3 for cover with tiles in thickness up to 15 mm

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Weight	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	[mm]	[mm]	Class	[kg]	Material	Item number	Downloads	Remember
200 x 200	300 x 300	50	46.5	15	L 15	2.9	Aluminium	415140
300 x 300	400 x 400	50	46.5	15	L 15	4.2	Aluminium	415141
400 x 400	500 x 500	50	46.5	15	L 15	5.4	Aluminium	415142
450 x 450	550 x 550	50	46.5	15	L 15	5.8	Aluminium	415143
500 x 500	600 x 600	50	46.5	15	L 15	6.9	Aluminium	415144
600 x 400	500 x 700	50	46.5	15	L 15	6.6	Aluminium	415145
600 x 450	550 x 700	50	46.5	15	L 15	6.9	Aluminium	445696
600 x 600	700 x 700	50	46.5	15	L 15	8.4	Aluminium	415146
635 x 635	735 x 735	50	46.5	15	L 15	10.8	Aluminium	415147
700 x 700	800 x 800	50	46.5	15	L 15	11.8	Aluminium	415148
750 x 600	700 x 850	50	46.5	15	L 15	9.3	Aluminium	445697
750 x 750	850 x 850	50	46.5	15	L 15	12.7	Aluminium	445698
800 x 600	700 x 900	50	46.5	15	L 15	9.6	Aluminium	415149
800 x 800	900 x 900	50	46.5	15	L 15	15.1	Aluminium	415150
900 x 600	700 x 1000	50	46.5	15	L 15	10.6	Aluminium	415151
900 x 900	1000 x 1000	50	46.5	15	L 15	17.9	Aluminium	415152
1000 x 600	700 x 1100	50	46.5	15	L 15	11.4	Aluminium	415153
1000 x 800	900 x 1100	50	46.5	15	L 15	18	Aluminium	415154
1000 x 1000	1100 x 1100	50	46.5	15	L 15	21	Aluminium	415155
1200 x 600	700 x 1300	50	46.5	15	L 15	12.8	Aluminium	415156

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Weight	Material	Item number
200 x 200 mm	300 x 300 mm	50 mm	46.5 mm	15 mm	L 15	2.9 kg	Aluminium	415140
300 x 300 mm	400 x 400 mm	50 mm	46.5 mm	15 mm	L 15	4.2 kg	Aluminium	415141
400 x 400 mm	500 x 500 mm	50 mm	46.5 mm	15 mm	L 15	5.4 kg	Aluminium	415142
450 x 450 mm	550 x 550 mm	50 mm	46.5 mm	15 mm	L 15	5.8 kg	Aluminium	415143
500 x 500 mm	600 x 600 mm	50 mm	46.5 mm	15 mm	L 15	6.9 kg	Aluminium	415144
600 x 400 mm	500 x 700 mm	50 mm	46.5 mm	15 mm	L 15	6.6 kg	Aluminium	415145
600 x 450 mm	550 x 700 mm	50 mm	46.5 mm	15 mm	L 15	6.9 kg	Aluminium	445696
600 x 600 mm	700 x 700 mm	50 mm	46.5 mm	15 mm	L 15	8.4 kg	Aluminium	415146
635 x 635 mm	735 x 735 mm	50 mm	46.5 mm	15 mm	L 15	10.8 kg	Aluminium	415147
700 x 700 mm	800 x 800 mm	50 mm	46.5 mm	15 mm	L 15	11.8 kg	Aluminium	415148
750 x 600 mm	700 x 850 mm	50 mm	46.5 mm	15 mm	L 15	9.3 kg	Aluminium	445697
750 x 750 mm	850 x 850 mm	50 mm	46.5 mm	15 mm	L 15	12.7 kg	Aluminium	445698
800 x 600 mm	700 x 900 mm	50 mm	46.5 mm	15 mm	L 15	9.6 kg	Aluminium	415149
800 x 800 mm	900 x 900 mm	50 mm	46.5 mm	15 mm	L 15	15.1 kg	Aluminium	415150
900 x 600 mm	700 x 1000 mm	50 mm	46.5 mm	15 mm	L 15	10.6 kg	Aluminium	415151
900 x 900 mm	1000 x 1000 mm	50 mm	46.5 mm	15 mm	L 15	17.9 kg	Aluminium	415152
1000 x 600 mm	700 x 1100 mm	50 mm	46.5 mm	15 mm	L 15	11.4 kg	Aluminium	415153
1000 x 800 mm	900 x 1100 mm	50 mm	46.5 mm	15 mm	L 15	18 kg	Aluminium	415154
1000 x 1000 mm	1100 x 1100 mm	50 mm	46.5 mm	15 mm	L 15	21 kg	Aluminium	415155
1200 x 600 mm	700 x 1300 mm	50 mm	46.5 mm	15 mm	L 15	12.8 kg	Aluminium	415156
