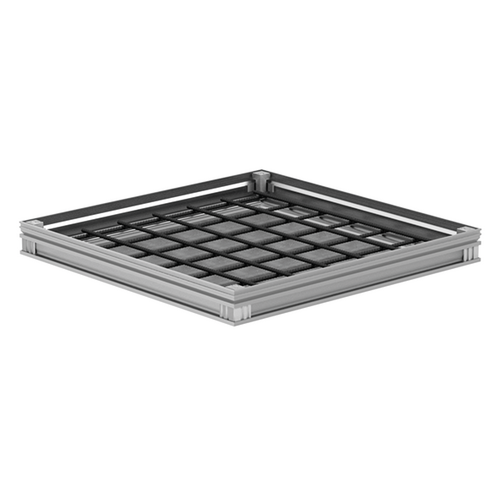

ACO Access Cover UNIFACE AL

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	[mm]	[mm]	Class	Material	Item number	Downloads	Remember
200 x 200	298 x 298	72.5	70	15	M 125	Aluminium	406881
300 x 300	398 x 398	72.5	70	15	M 125	Aluminium	405340
400 x 400	498 x 498	72.5	70	15	M 125	Aluminium	405341
600 x 400	498 x 698	72.5	70	15	M 125	Aluminium	405344
450 x 450	548 x 548	72.5	70	15	M 125	Aluminium	405342
600 x 450	548 x 698	72.5	70	15	M 125	Aluminium	406622
500 x 500	598 x 598	72.5	70	15	M 125	Aluminium	405343
600 x 600	698 x 698	72.5	70	15	M 125	Aluminium	405345
750 x 600	698 x 848	72.5	70	15	M 125	Aluminium	406623
800 x 600	698 x 898	72.5	70	15	M 125	Aluminium	405346
900 x 600	698 x 998	72.5	70	15	M 125	Aluminium	406626
1000 x 600	698 x 1098	72.5	70	15	M 125	Aluminium	405826
1200 x 600	698 x 1298	72.5	70	15	M 125	Aluminium	414953
635 x 635	733 x 733	72.5	70	15	L 15	Aluminium	414952
675 x 675	773 x 773	72.5	70	15	L 15	Aluminium	406624
700 x 700	798 x 798	72.5	70	15	L 15	Aluminium	405347
750 x 750	848 x 848	72.5	70	15	L 15	Aluminium	406625
800 x 800	898 x 898	72.5	70	15	L 15	Aluminium	405348
1000 x 800	898 x 1098	72.5	70	15	L 15	Aluminium	405349
900 x 900	998 x 998	72.5	70	15	L 15	Aluminium	406627
1000 x 1000	1098 x 1098	72.5	70	15	L 15	Aluminium	405350

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Material	Item number
200 x 200 mm	298 x 298 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	406881
300 x 300 mm	398 x 398 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	405340
400 x 400 mm	498 x 498 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	405341
600 x 400 mm	498 x 698 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	405344
450 x 450 mm	548 x 548 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	405342
600 x 450 mm	548 x 698 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	406622
500 x 500 mm	598 x 598 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	405343
600 x 600 mm	698 x 698 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	405345
750 x 600 mm	698 x 848 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	406623
800 x 600 mm	698 x 898 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	405346
900 x 600 mm	698 x 998 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	406626
1000 x 600 mm	698 x 1098 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	405826
1200 x 600 mm	698 x 1298 mm	72.5 mm	70 mm	15 mm	M 125	Aluminium	414953
635 x 635 mm	733 x 733 mm	72.5 mm	70 mm	15 mm	L 15	Aluminium	414952
675 x 675 mm	773 x 773 mm	72.5 mm	70 mm	15 mm	L 15	Aluminium	406624
700 x 700 mm	798 x 798 mm	72.5 mm	70 mm	15 mm	L 15	Aluminium	405347
750 x 750 mm	848 x 848 mm	72.5 mm	70 mm	15 mm	L 15	Aluminium	406625
800 x 800 mm	898 x 898 mm	72.5 mm	70 mm	15 mm	L 15	Aluminium	405348
1000 x 800 mm	898 x 1098 mm	72.5 mm	70 mm	15 mm	L 15	Aluminium	405349
900 x 900 mm	998 x 998 mm	72.5 mm	70 mm	15 mm	L 15	Aluminium	406627
1000 x 1000 mm	1098 x 1098 mm	72.5 mm	70 mm	15 mm	L 15	Aluminium	405350
