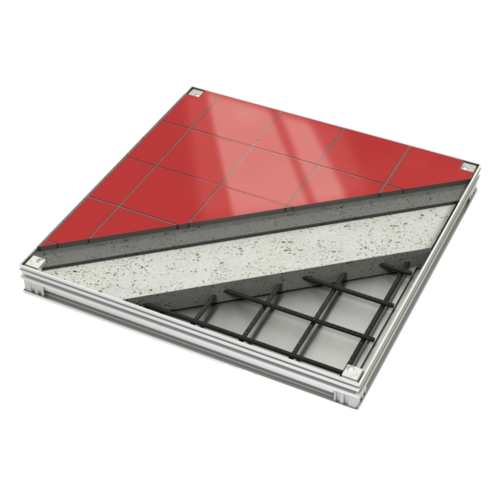

ACO Access Cover UNIFACE 2.0 GS/SS

Product information

Meets declared load class up to N250 for all clear openings up to 1 m
Hot dip galvanized mild steel (≥ 60 µm of zinc) or pickle passivated stainless steel
Preciseness, design
Thanks to unique bending on the top no additional stripes for installation necessary
Easy opening after installation
Less friction between frame and cover
No sharp edges – improved safety
Rolled profiles for galvanized version of the cover are made from innovative material UltraSTEEL^®. It helps significantly reduce weight of the cover while maintaining the strength, stability and stiffness of the product.
Rolled profiles for stainless steel version are made from conventional steel sheet in thickness 2 mm.

Order information

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Weight	Material	Item number	Downloads	Remember
[mm]	[mm]	[mm]	[mm]	[mm]	Class	[kg]	Material	Item number	Downloads	Remember
300 x 300	410 x 410	82.5	70	15	N 250	9.3	Galvanised steel	415858
400 x 400	510 x 510	82.5	70	15	N 250	11.9	Galvanised steel	415859
600 x 400	510 x 710	82.5	70	15	N 250	14.6	Galvanised steel	415860
450 x 450	560 x 560	82.5	70	15	M 125	13.6	Galvanised steel	415861
450 x 450	560 x 560	82.5	110	15	N 250	13.7	Galvanised steel	415872
600 x 450	560 x 710	82.5	70	15	N 250	15.4	Galvanised steel	445668
600 x 450	560 x 710	82.5	110	15	N 250	15.7	Galvanised steel	445670
500 x 500	610 x 610	82.5	70	15	M 125	14.8	Galvanised steel	415862
500 x 500	610 x 610	82.5	110	15	N 250	15	Galvanised steel	415873
600 x 600	710 x 710	82.5	70	15	M 125	18	Galvanised steel	415863
600 x 600	710 x 710	82.5	110	15	N 250	18.3	Galvanised steel	415874
750 x 600	710 x 860	82.5	70	15	N 250	22.8	Galvanised steel	445672
750 x 600	710 x 860	82.5	110	15	N 250	23.5	Galvanised steel	445674
800 x 600	710 x 910	82.5	70	15	M 125	23.7	Galvanised steel	415864
800 x 600	710 x 910	82.5	110	15	N 250	24.3	Galvanised steel	415875
900 x 600	710 x 1010	82.5	70	15	N 250	25.4	Galvanised steel	445750
900 x 600	710 x 1010	82.5	110	15	N 250	26.1	Galvanised steel	445752
1000 x 600	710 x 1110	82.5	70	15	M 125	27.6	Galvanised steel	415865
1000 x 600	710 x 1110	82.5	110	15	N 250	28.8	Galvanised steel	415876
1200 x 600	710 x 1310	82.5	70	15	M 125	31.5	Galvanised steel	415866
635 x 635	745 x 745	82.5	70	15	L 15	21.5	Galvanised steel	415867
			110	15	M 125	21.3	Galvanised steel	415877
			140	15	N 250	22.4	Galvanised steel	415882
700 x 700	810 x 810	82.5	70	15	L 15	23.8	Galvanised steel	415868
			110	15	M 125	24.3	Galvanised steel	415878
			140	15	N 250	25.3	Galvanised steel	415883
750 x 750	860 x 860	82.5	110	15	M 125	26.1	Galvanised steel	445676
800 x 800	910 x 910	82.5	70	15	L 15	28.4	Galvanised steel	415869
			110	15	M 125	29.1	Galvanised steel	415879
			140	15	N 250	30.1	Galvanised steel	415884
1000 x 800	910 x 1110	82.5	70	15	L 15	33.1	Galvanised steel	415870
			110	15	M 125	30.9	Galvanised steel	415880
			140	15	N 250	27	Galvanised steel	415885
900 x 900	1010 x 1010	82.5	110	15	M 125	32.7	Galvanised steel	445680
1000 x 1000	1110 x 1110	82.5	70	15	L 15	38.6	Galvanised steel	415871
			110	15	M 125	39.6	Galvanised steel	415881
			140	15	N 250	40.6	Galvanised steel	415886
300 x 300	410 x 410	82.5	70	15	N 250	9.3	AISI 304	415887
400 x 400	510 x 510	82.5	70	15	N 250	11.9	AISI 304	415888
600 x 400	510 x 710	82.5	70	15	N 250	14.6	AISI 304	415889
450 x 450	560 x 560	82.5	70	15	M 125	13.6	AISI 304	415890
450 x 450	560 x 560	82.5	110	15	N 250	13.7	AISI 304	415901
600 x 450	560 x 710	82.5	70	15	N 250	15.4	AISI 304	445669
600 x 450	560 x 710	82.5	110	15	N 250	15.7	AISI 304	445671
500 x 500	610 x 610	82.5	70	15	M 125	14.8	AISI 304	415891
500 x 500	610 x 610	82.5	110	15	N 250	15	AISI 304	415902
600 x 600	710 x 710	82.5	70	15	M 125	18	AISI 304	415892
600 x 600	710 x 710	82.5	110	15	N 250	18.3	AISI 304	415903
750 x 600	710 x 860	82.5	70	15	N 250	22.8	AISI 304	445673
750 x 600	710 x 860	82.5	110	15	N 250	23.5	AISI 304	445675
800 x 600	710 x 910	82.5	70	15	M 125	23.7	AISI 304	415893
800 x 600	710 x 910	82.5	110	15	N 250	24.3	AISI 304	415904
900 x 600	710 x 1010	82.5	70	15	N 250	25.4	AISI 304	445751
900 x 600	710 x 1010	82.5	110	15	N 250	26.1	AISI 304	445753
1000 x 600	710 x 1110	82.5	70	15	M 125	27.6	AISI 304	415894
1000 x 600	710 x 1110	82.5	110	15	N 250	28.8	AISI 304	415905
1200 x 600	710 x 1310	82.5	70	15	M 125	31.5	AISI 304	415895
635 x 635	745 x 745	82.5	70	15	L 15	21.5	AISI 304	415896
			110	15	M 125	21.3	AISI 304	415906
			140	15	N 250	22.4	AISI 304	415911
700 x 700	810 x 810	82.5	70	15	L 15	23.8	AISI 304	415897
			110	15	M 125	24.3	AISI 304	415907
			140	15	N 250	25.3	AISI 304	415912
750 x 750	860 x 860	82.5	110	15	M 125	26.1	AISI 304	445677
800 x 800	910 x 910	82.5	70	15	L 15	28.4	AISI 304	415898
			110	15	M 125	29.1	AISI 304	415908
			140	15	N 250	30.1	AISI 304	415913
1000 x 800	910 x 1110	82.5	70	15	L 15	33.1	AISI 304	415899
			110	15	M 125	30.9	AISI 304	415909
			140	15	N 250	27	AISI 304	415914
900 x 900	1010 x 1010	82.5	110	15	M 125	32.7	AISI 304	445681
1000 x 1000	1110 x 1110	82.5	70	15	L 15	38.6	AISI 304	415900
			110	15	M 125	39.6	AISI 304	415910
			140	15	N 250	40.6	AISI 304	415915

Clear area (A x B)	Frame dimension (C x D)	Frame height (E)	Cover depth	Space for final floor	Class	Weight	Material	Item number
300 x 300 mm	410 x 410 mm	82.5 mm	70 mm	15 mm	N 250	9.3 kg	Galvanised steel	415858
400 x 400 mm	510 x 510 mm	82.5 mm	70 mm	15 mm	N 250	11.9 kg	Galvanised steel	415859
600 x 400 mm	510 x 710 mm	82.5 mm	70 mm	15 mm	N 250	14.6 kg	Galvanised steel	415860
450 x 450 mm	560 x 560 mm	82.5 mm	70 mm	15 mm	M 125	13.6 kg	Galvanised steel	415861
450 x 450 mm	560 x 560 mm	82.5 mm	110 mm	15 mm	N 250	13.7 kg	Galvanised steel	415872
600 x 450 mm	560 x 710 mm	82.5 mm	70 mm	15 mm	N 250	15.4 kg	Galvanised steel	445668
600 x 450 mm	560 x 710 mm	82.5 mm	110 mm	15 mm	N 250	15.7 kg	Galvanised steel	445670
500 x 500 mm	610 x 610 mm	82.5 mm	70 mm	15 mm	M 125	14.8 kg	Galvanised steel	415862
500 x 500 mm	610 x 610 mm	82.5 mm	110 mm	15 mm	N 250	15 kg	Galvanised steel	415873
600 x 600 mm	710 x 710 mm	82.5 mm	70 mm	15 mm	M 125	18 kg	Galvanised steel	415863
600 x 600 mm	710 x 710 mm	82.5 mm	110 mm	15 mm	N 250	18.3 kg	Galvanised steel	415874
750 x 600 mm	710 x 860 mm	82.5 mm	70 mm	15 mm	N 250	22.8 kg	Galvanised steel	445672
750 x 600 mm	710 x 860 mm	82.5 mm	110 mm	15 mm	N 250	23.5 kg	Galvanised steel	445674
800 x 600 mm	710 x 910 mm	82.5 mm	70 mm	15 mm	M 125	23.7 kg	Galvanised steel	415864
800 x 600 mm	710 x 910 mm	82.5 mm	110 mm	15 mm	N 250	24.3 kg	Galvanised steel	415875
900 x 600 mm	710 x 1010 mm	82.5 mm	70 mm	15 mm	N 250	25.4 kg	Galvanised steel	445750
900 x 600 mm	710 x 1010 mm	82.5 mm	110 mm	15 mm	N 250	26.1 kg	Galvanised steel	445752
1000 x 600 mm	710 x 1110 mm	82.5 mm	70 mm	15 mm	M 125	27.6 kg	Galvanised steel	415865
1000 x 600 mm	710 x 1110 mm	82.5 mm	110 mm	15 mm	N 250	28.8 kg	Galvanised steel	415876
1200 x 600 mm	710 x 1310 mm	82.5 mm	70 mm	15 mm	M 125	31.5 kg	Galvanised steel	415866
635 x 635 mm	745 x 745 mm	82.5 mm	70 mm	15 mm	L 15	21.5 kg	Galvanised steel	415867
635 x 635 mm	745 x 745 mm	82.5 mm	110 mm	15 mm	M 125	21.3 kg	Galvanised steel	415877
635 x 635 mm	745 x 745 mm	82.5 mm	140 mm	15 mm	N 250	22.4 kg	Galvanised steel	415882
700 x 700 mm	810 x 810 mm	82.5 mm	70 mm	15 mm	L 15	23.8 kg	Galvanised steel	415868
700 x 700 mm	810 x 810 mm	82.5 mm	110 mm	15 mm	M 125	24.3 kg	Galvanised steel	415878
700 x 700 mm	810 x 810 mm	82.5 mm	140 mm	15 mm	N 250	25.3 kg	Galvanised steel	415883
750 x 750 mm	860 x 860 mm	82.5 mm	110 mm	15 mm	M 125	26.1 kg	Galvanised steel	445676
800 x 800 mm	910 x 910 mm	82.5 mm	70 mm	15 mm	L 15	28.4 kg	Galvanised steel	415869
800 x 800 mm	910 x 910 mm	82.5 mm	110 mm	15 mm	M 125	29.1 kg	Galvanised steel	415879
800 x 800 mm	910 x 910 mm	82.5 mm	140 mm	15 mm	N 250	30.1 kg	Galvanised steel	415884
1000 x 800 mm	910 x 1110 mm	82.5 mm	70 mm	15 mm	L 15	33.1 kg	Galvanised steel	415870
1000 x 800 mm	910 x 1110 mm	82.5 mm	110 mm	15 mm	M 125	30.9 kg	Galvanised steel	415880
1000 x 800 mm	910 x 1110 mm	82.5 mm	140 mm	15 mm	N 250	27 kg	Galvanised steel	415885
900 x 900 mm	1010 x 1010 mm	82.5 mm	110 mm	15 mm	M 125	32.7 kg	Galvanised steel	445680
1000 x 1000 mm	1110 x 1110 mm	82.5 mm	70 mm	15 mm	L 15	38.6 kg	Galvanised steel	415871
1000 x 1000 mm	1110 x 1110 mm	82.5 mm	110 mm	15 mm	M 125	39.6 kg	Galvanised steel	415881
1000 x 1000 mm	1110 x 1110 mm	82.5 mm	140 mm	15 mm	N 250	40.6 kg	Galvanised steel	415886
300 x 300 mm	410 x 410 mm	82.5 mm	70 mm	15 mm	N 250	9.3 kg	AISI 304	415887
400 x 400 mm	510 x 510 mm	82.5 mm	70 mm	15 mm	N 250	11.9 kg	AISI 304	415888
600 x 400 mm	510 x 710 mm	82.5 mm	70 mm	15 mm	N 250	14.6 kg	AISI 304	415889
450 x 450 mm	560 x 560 mm	82.5 mm	70 mm	15 mm	M 125	13.6 kg	AISI 304	415890
450 x 450 mm	560 x 560 mm	82.5 mm	110 mm	15 mm	N 250	13.7 kg	AISI 304	415901
600 x 450 mm	560 x 710 mm	82.5 mm	70 mm	15 mm	N 250	15.4 kg	AISI 304	445669
600 x 450 mm	560 x 710 mm	82.5 mm	110 mm	15 mm	N 250	15.7 kg	AISI 304	445671
500 x 500 mm	610 x 610 mm	82.5 mm	70 mm	15 mm	M 125	14.8 kg	AISI 304	415891
500 x 500 mm	610 x 610 mm	82.5 mm	110 mm	15 mm	N 250	15 kg	AISI 304	415902
600 x 600 mm	710 x 710 mm	82.5 mm	70 mm	15 mm	M 125	18 kg	AISI 304	415892
600 x 600 mm	710 x 710 mm	82.5 mm	110 mm	15 mm	N 250	18.3 kg	AISI 304	415903
750 x 600 mm	710 x 860 mm	82.5 mm	70 mm	15 mm	N 250	22.8 kg	AISI 304	445673
750 x 600 mm	710 x 860 mm	82.5 mm	110 mm	15 mm	N 250	23.5 kg	AISI 304	445675
800 x 600 mm	710 x 910 mm	82.5 mm	70 mm	15 mm	M 125	23.7 kg	AISI 304	415893
800 x 600 mm	710 x 910 mm	82.5 mm	110 mm	15 mm	N 250	24.3 kg	AISI 304	415904
900 x 600 mm	710 x 1010 mm	82.5 mm	70 mm	15 mm	N 250	25.4 kg	AISI 304	445751
900 x 600 mm	710 x 1010 mm	82.5 mm	110 mm	15 mm	N 250	26.1 kg	AISI 304	445753
1000 x 600 mm	710 x 1110 mm	82.5 mm	70 mm	15 mm	M 125	27.6 kg	AISI 304	415894
1000 x 600 mm	710 x 1110 mm	82.5 mm	110 mm	15 mm	N 250	28.8 kg	AISI 304	415905
1200 x 600 mm	710 x 1310 mm	82.5 mm	70 mm	15 mm	M 125	31.5 kg	AISI 304	415895
635 x 635 mm	745 x 745 mm	82.5 mm	70 mm	15 mm	L 15	21.5 kg	AISI 304	415896
635 x 635 mm	745 x 745 mm	82.5 mm	110 mm	15 mm	M 125	21.3 kg	AISI 304	415906
635 x 635 mm	745 x 745 mm	82.5 mm	140 mm	15 mm	N 250	22.4 kg	AISI 304	415911
700 x 700 mm	810 x 810 mm	82.5 mm	70 mm	15 mm	L 15	23.8 kg	AISI 304	415897
700 x 700 mm	810 x 810 mm	82.5 mm	110 mm	15 mm	M 125	24.3 kg	AISI 304	415907
700 x 700 mm	810 x 810 mm	82.5 mm	140 mm	15 mm	N 250	25.3 kg	AISI 304	415912
750 x 750 mm	860 x 860 mm	82.5 mm	110 mm	15 mm	M 125	26.1 kg	AISI 304	445677
800 x 800 mm	910 x 910 mm	82.5 mm	70 mm	15 mm	L 15	28.4 kg	AISI 304	415898
800 x 800 mm	910 x 910 mm	82.5 mm	110 mm	15 mm	M 125	29.1 kg	AISI 304	415908
800 x 800 mm	910 x 910 mm	82.5 mm	140 mm	15 mm	N 250	30.1 kg	AISI 304	415913
1000 x 800 mm	910 x 1110 mm	82.5 mm	70 mm	15 mm	L 15	33.1 kg	AISI 304	415899
1000 x 800 mm	910 x 1110 mm	82.5 mm	110 mm	15 mm	M 125	30.9 kg	AISI 304	415909
1000 x 800 mm	910 x 1110 mm	82.5 mm	140 mm	15 mm	N 250	27 kg	AISI 304	415914
900 x 900 mm	1010 x 1010 mm	82.5 mm	110 mm	15 mm	M 125	32.7 kg	AISI 304	445681
1000 x 1000 mm	1110 x 1110 mm	82.5 mm	70 mm	15 mm	L 15	38.6 kg	AISI 304	415900
1000 x 1000 mm	1110 x 1110 mm	82.5 mm	110 mm	15 mm	M 125	39.6 kg	AISI 304	415910
1000 x 1000 mm	1110 x 1110 mm	82.5 mm	140 mm	15 mm	N 250	40.6 kg	AISI 304	415915
